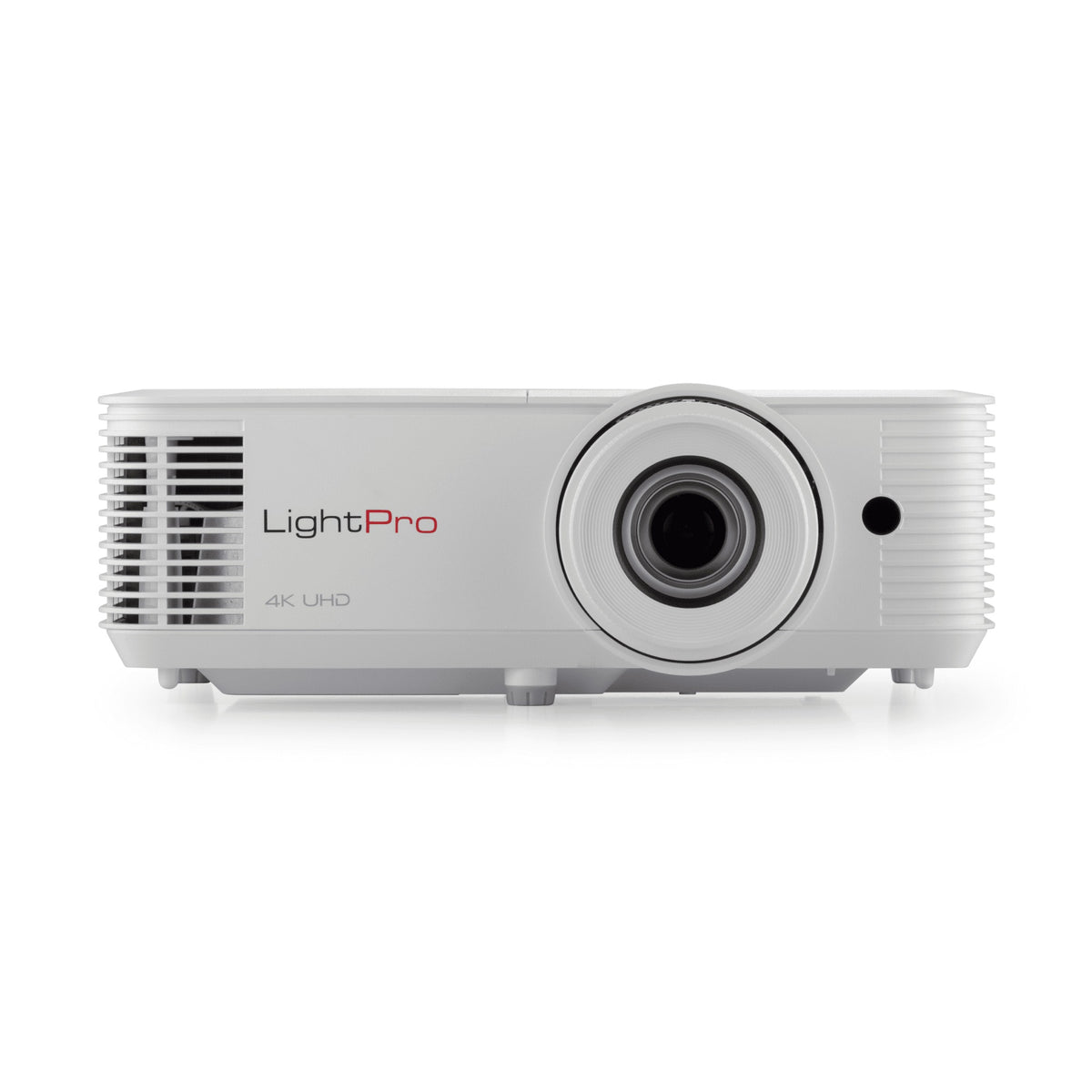

The InFocus Orbital IN0061SL brings 4K UHD projection to classrooms, meeting spaces and fixed installations. Its DLP system uses XPR technology to produce 8.3 million active pixels on screen, with 4,000 ISO lumens of brightness and support for HDR and HLG content.
A manual zoom lens and four-corner adjustment help you fit the image to the screen. Two HDMI inputs keep source devices connected, while the built-in speaker provides audio. The UHP lamp is rated for up to 15,000 hours, with actual life depending on use and environment. An IR remote control is supplied without a battery.
| ITEM | DESCRIPTION |
|---|---|
| True 4K UHD | DLP projection with XPR technology produces 8.3 million active pixels on screen. |
| Brightness | 4,000 ISO lumens for classrooms, meeting spaces and fixed installations. |
| Source connections | Two HDMI 2.0 inputs allow two HDMI sources to remain connected. |
| Image alignment | Manual optical zoom and focus, with vertical and horizontal keystone correction and four-corner adjustment. |
| HDR & HLG | Supports HDR and HLG content. |
| Lamp life | UHP lamp with a maximum rated life of up to 15,000 hours. Actual life varies with use and environment. |
| DETAIL | VALUE |
|---|---|
| Model | IN0061SL |
| Projection technology | Texas Instruments DLP with XPR technology |
| Resolution | 4K UHD, 3840 × 2160 |
| Aspect ratio | 16:9 |
| Brightness | 4,000 ISO lumens |
| Dynamic contrast ratio | 1,000,000:1 |
| Light source | UHP lamp |
| Maximum lamp life | Up to 15,000 hours; actual life varies with use and environment |
| Optical zoom | 1.3×, manual |
| Focus | Manual |
| Throw ratio | 1.21-1.59:1 |
| Projection distance | 1.0-8.1 m |
| Focal length | 12.81-16.74 mm |
| F-stop | 2.43 |
| Keystone correction | ±30° vertical and horizontal |

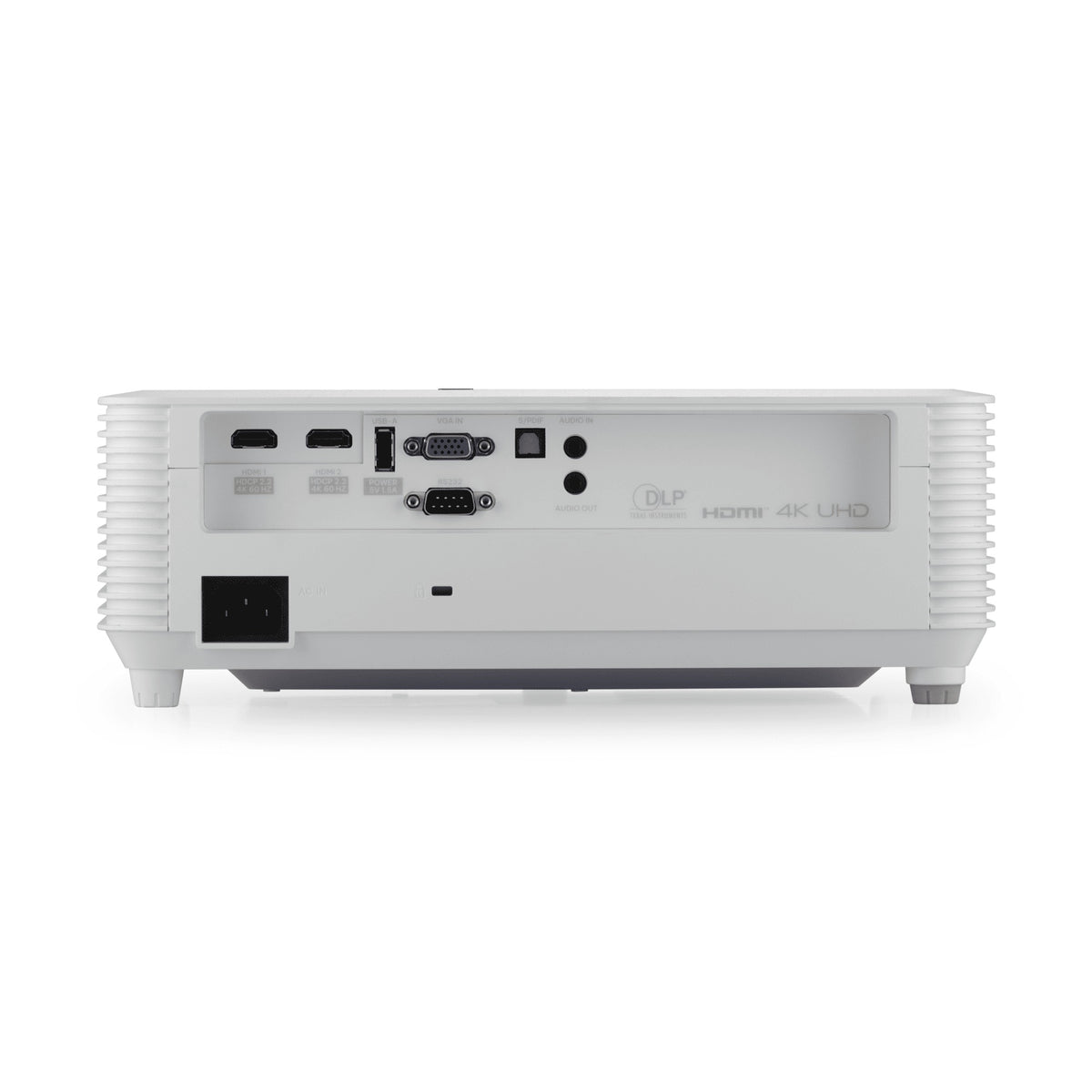

| Video inputs | 2 × HDMI 2.0 (HDCP 2.2); 1 × Mini D-sub 15-pin VGA |
| Audio connections | 3.5 mm stereo input; 3.5 mm stereo output; S/PDIF optical output |
| USB power output | USB-A, 5 V / 1.5 A |
| Control | RS232 |
| Speaker | 1 × 10 W |
| Fan noise | 27 dB |
| Product dimensions (manufacturer L × W × H) | 313 × 234 × 96.4 mm |
| Product weight | 3.2 kg |
| Packaged weight | 4.4 kg |
| Included remote control | IR remote control, without battery |
