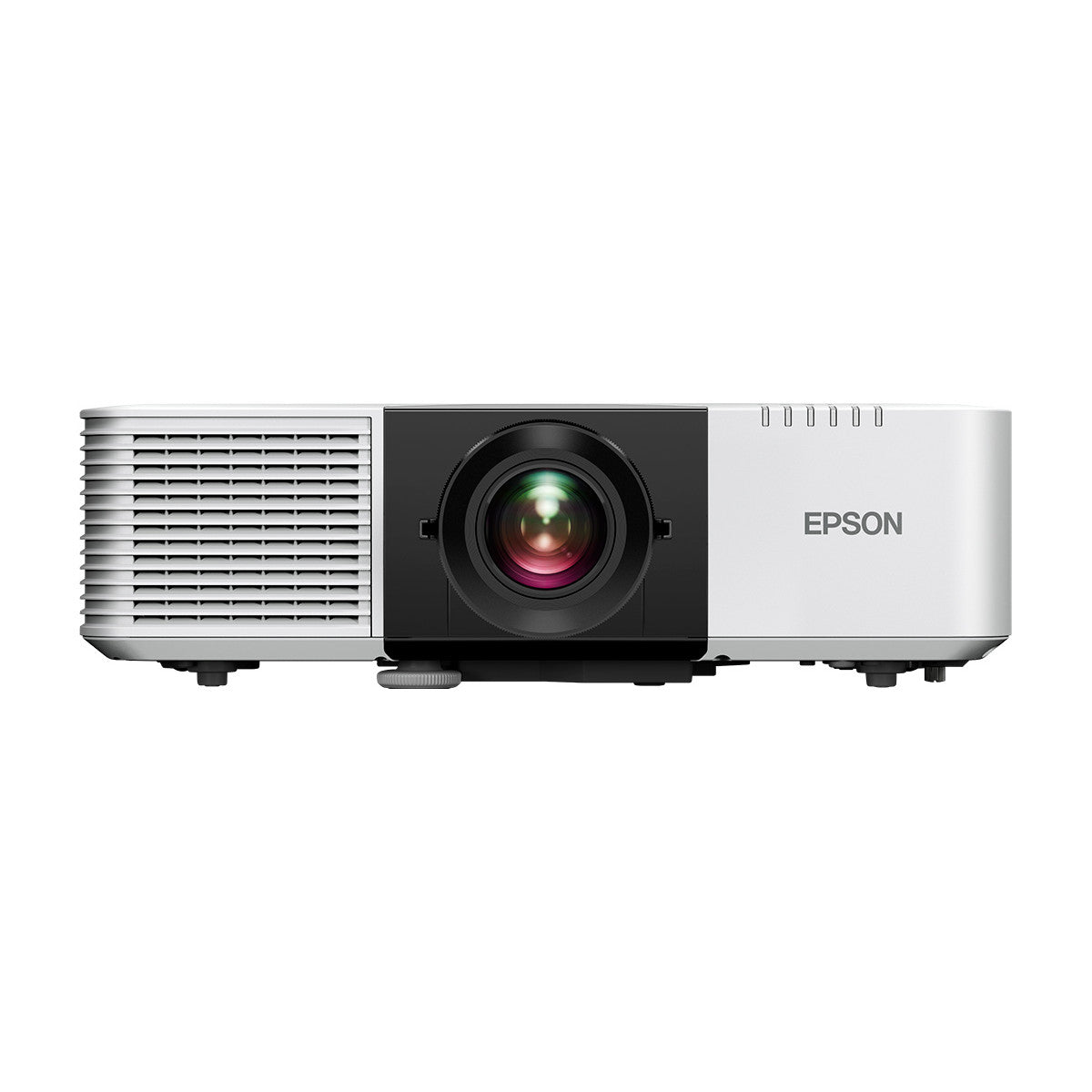

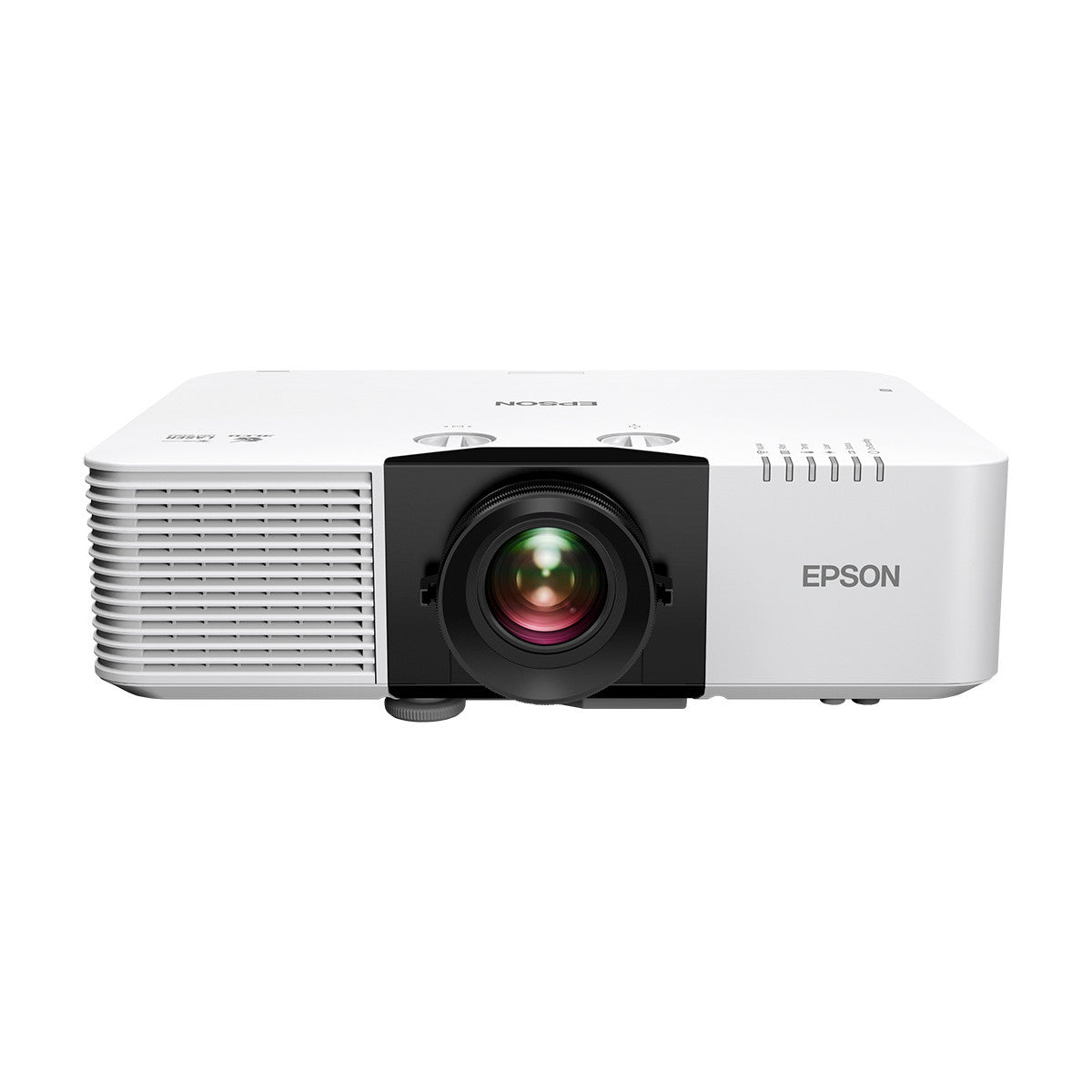

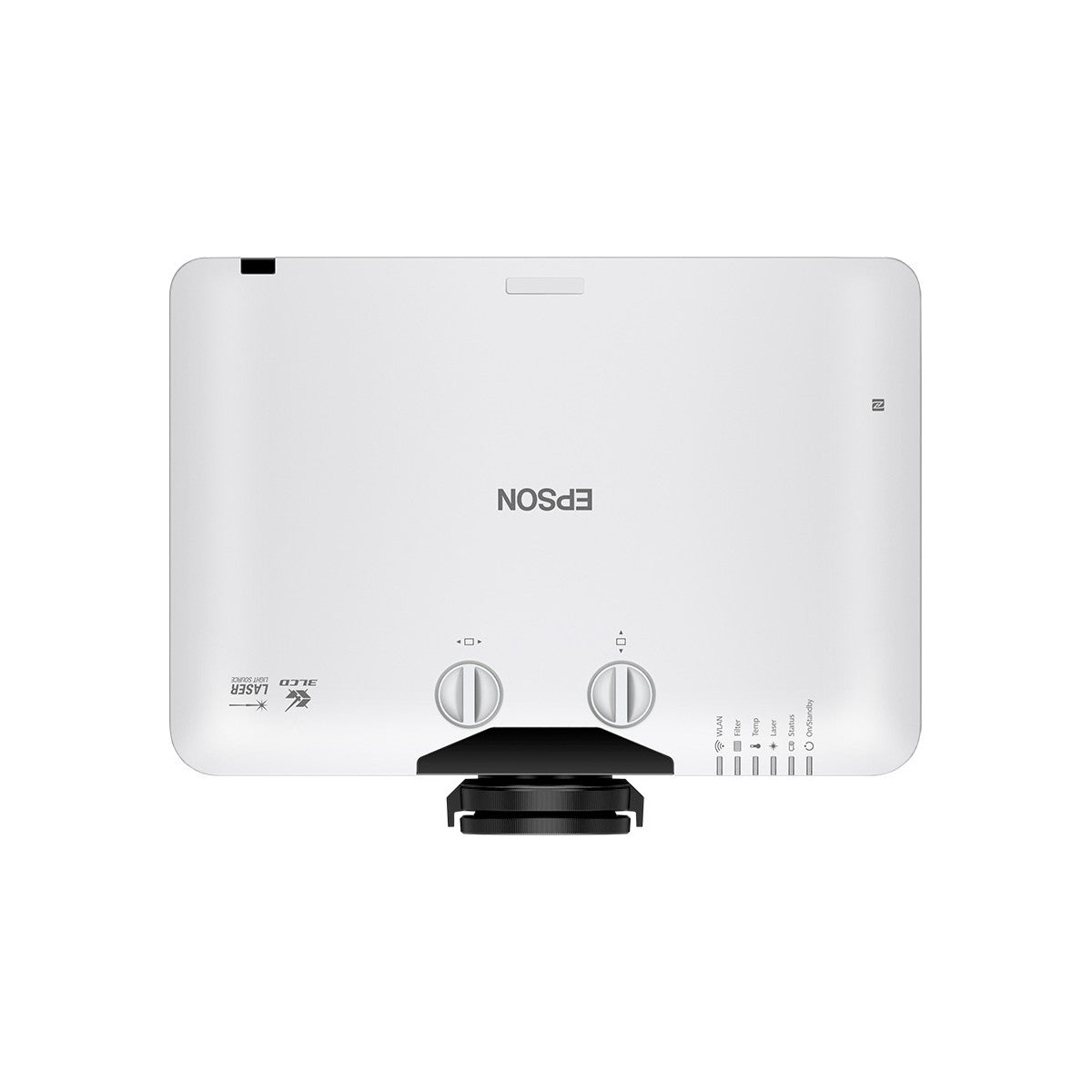

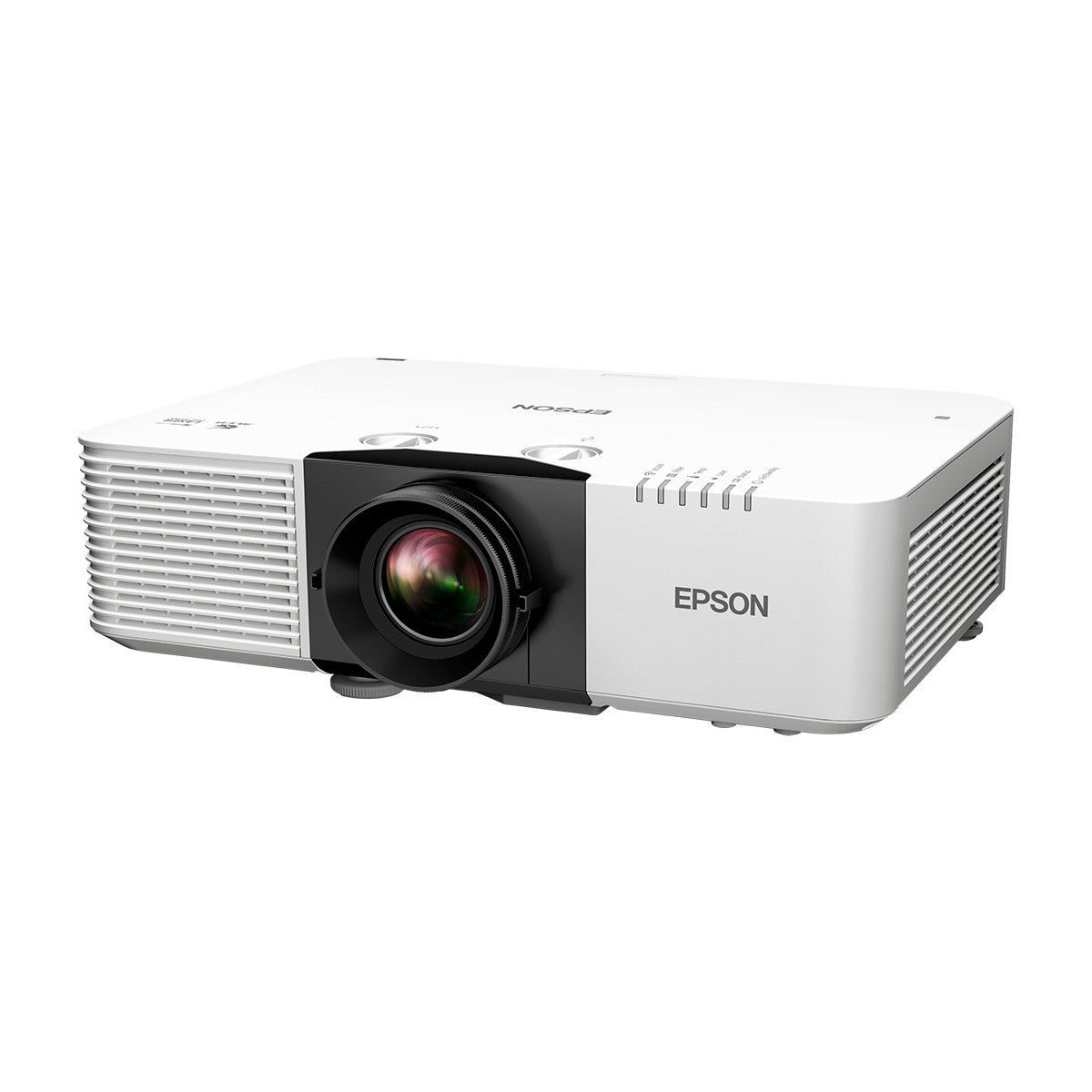

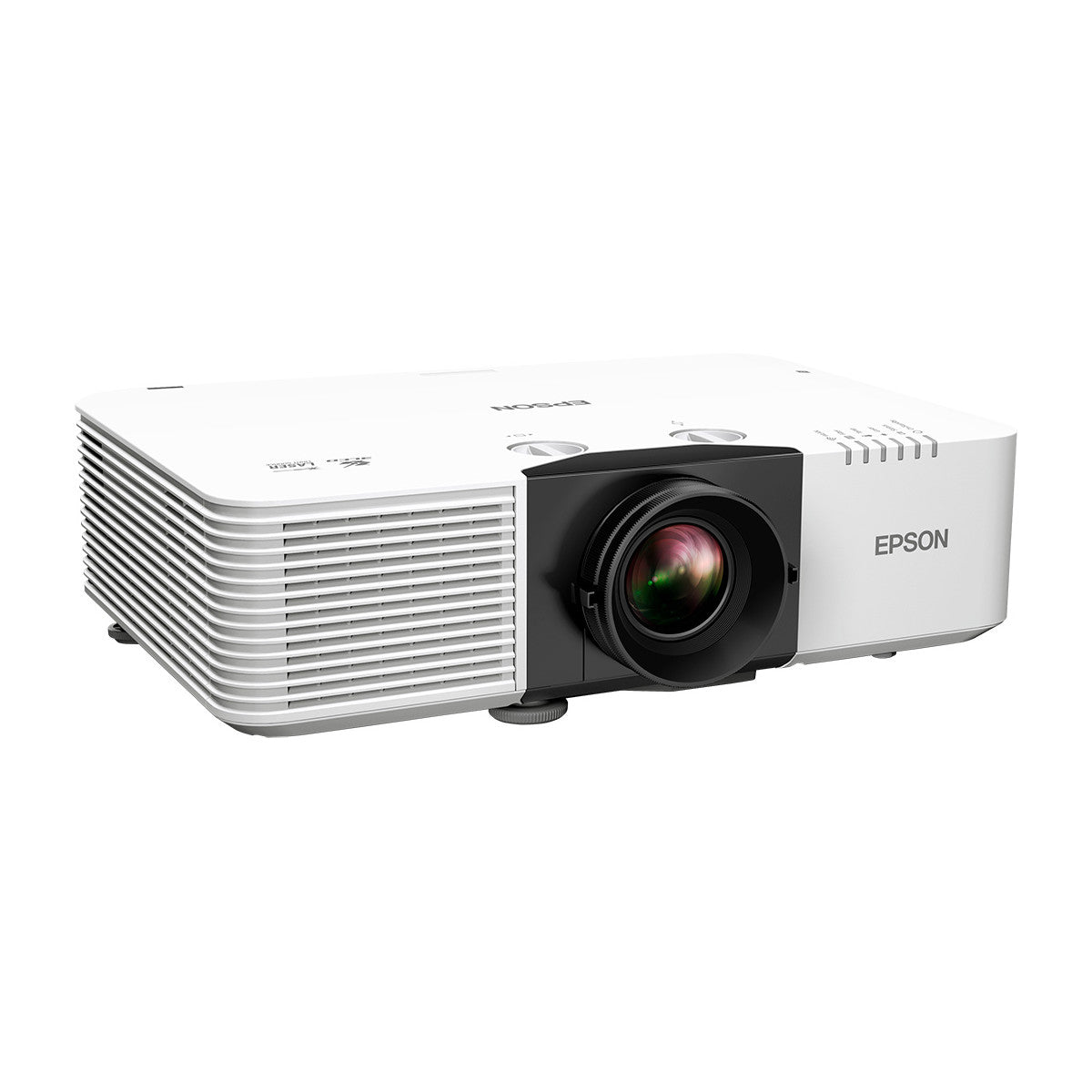

The Epson EB-L690U gives a lecture hall or meeting room a substantial screen for working material. It suits documents, diagrams and video that need to be followed by a group, with a detailed picture and a fixed-lens arrangement for the installation. The display can be matched to the room's viewing needs.
A taller widescreen format gives computer content more vertical space. Colour projection supports illustrations alongside text, and lens positioning provides some freedom around the chosen mounting point. That is useful in an existing room where the screen and equipment locations already have constraints.
Laser illumination supports recurring operation with longer rated operating intervals. Sharing and management tools help different presenters use the display, while broader picture functions provide scope for visual installations. It is a professional projector for a room used regularly, where detailed material needs space and the equipment needs to fit.
View manufacturer product information
| ITEM | DESCRIPTION |
|---|---|
| Compared working sources | Split-screen projection keeps separate references visible together. |
| Broader screen layouts | Wide-aspect support accommodates extended content. |
| Joined multi-projector images | Edge Blending supports a continuous display. |
| Personal-device sharing | Screen Mirroring provides a supported source route. |
| DETAIL | VALUE |
|---|---|
| Projection system | 3LCD Technology, RGB liquid crystal shutter |
| Resolution | WUXGA |
| Light source | Laser |
| Colour light output | 6500 Lumens |
| Colour | White |
| Throw ratio | 1.35-2.2:1 |
| Focus | Manual |
| Lens shift | manual |
| Speaker | 10 W |
| Dimensions | 440 × 340 × 138 mm (Width × Depth × Height) |
| Noise, normal | 32 dB (A) |
| Noise, economy | 25 dB (A) |
| Laser life, high mode | Up to 20000 hr |
| Laser life, economy | Up to 30000 hr |
| Image size | 50 in to 500 in |
| ITEM | QUANTITY |
|---|---|
| Main unit | 1 |
| Power cable | 1 |
| Remote control incl. batteries | 1 |
| User guide | 1 |
| Warranty document | 1 |
| Quick Start Guide | 1 |
