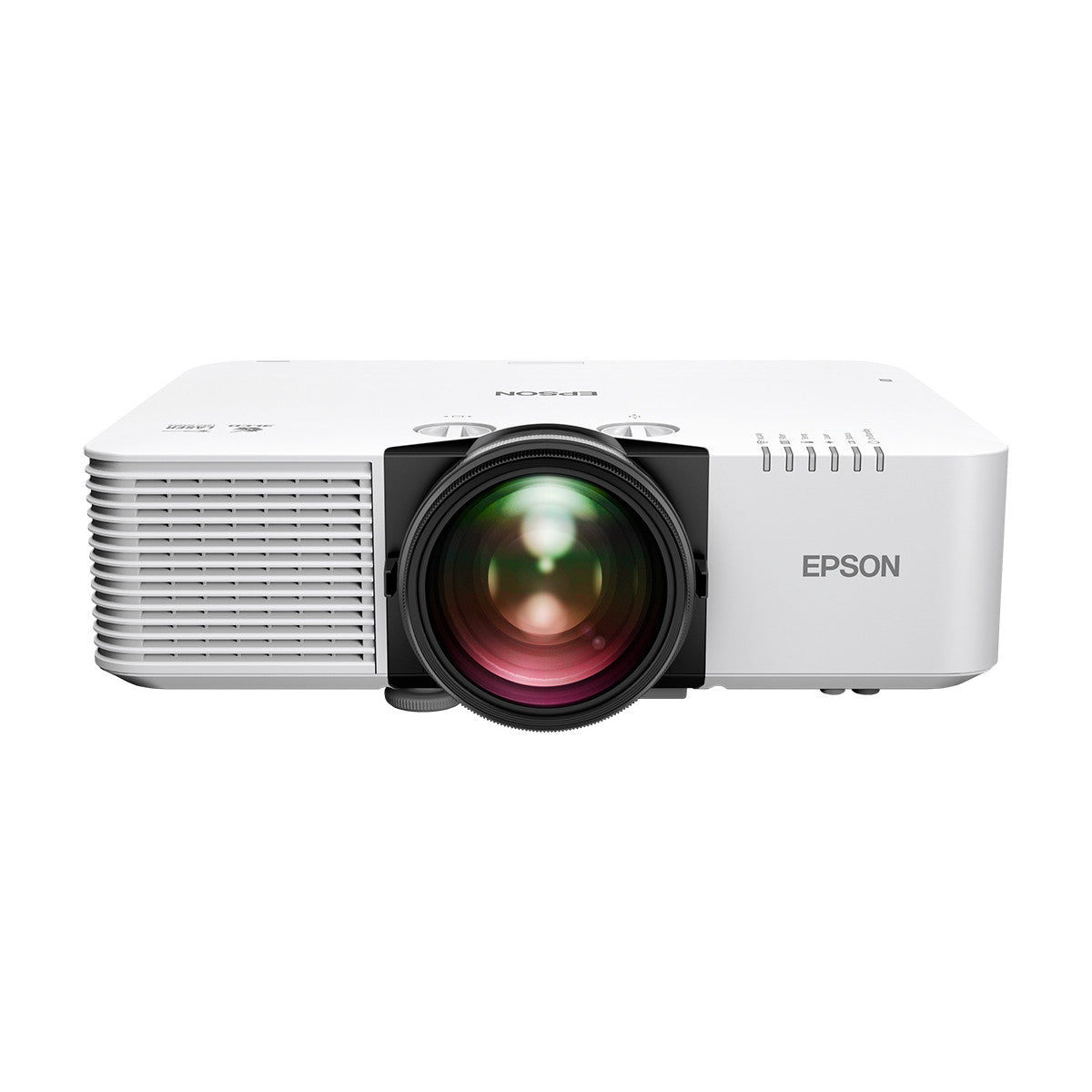

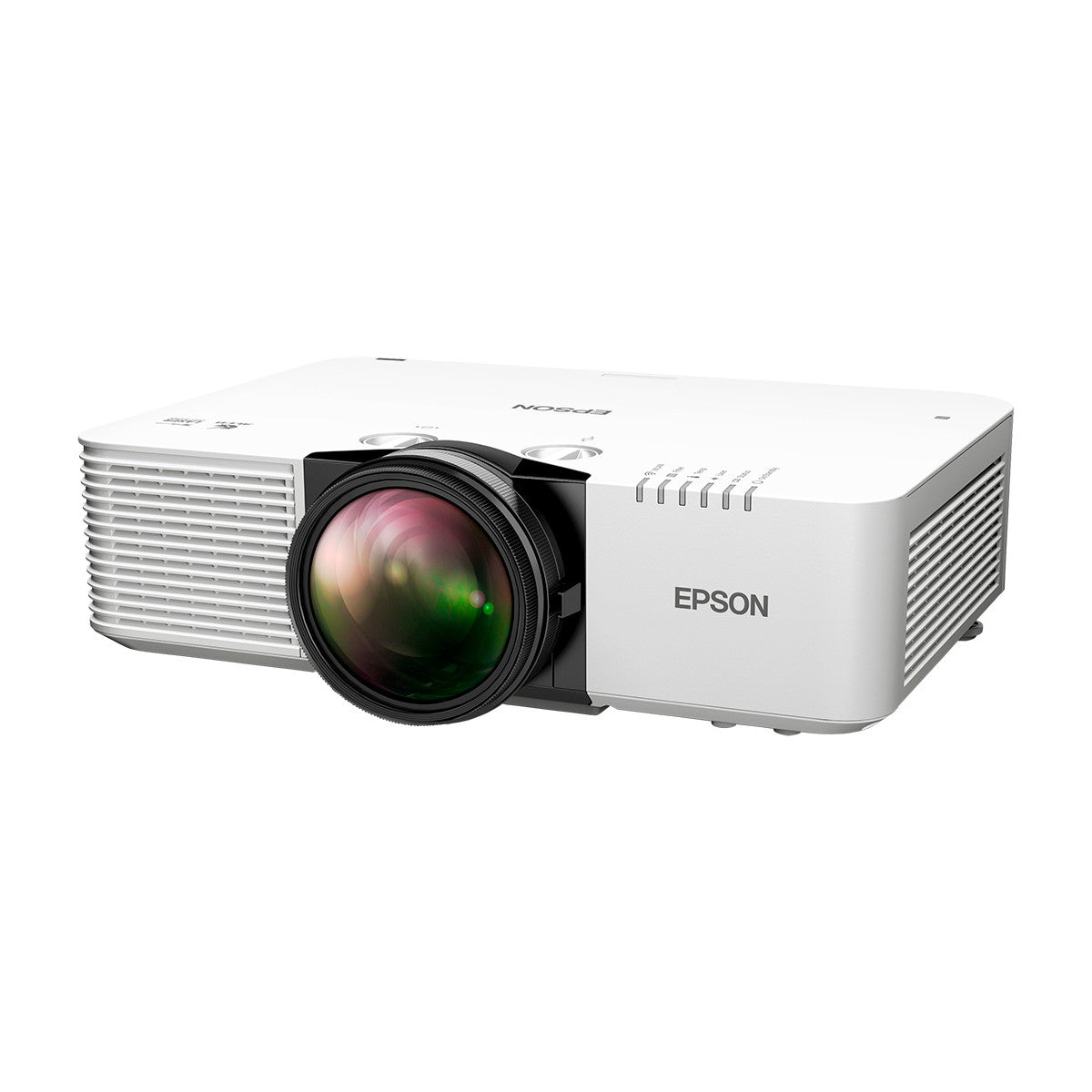

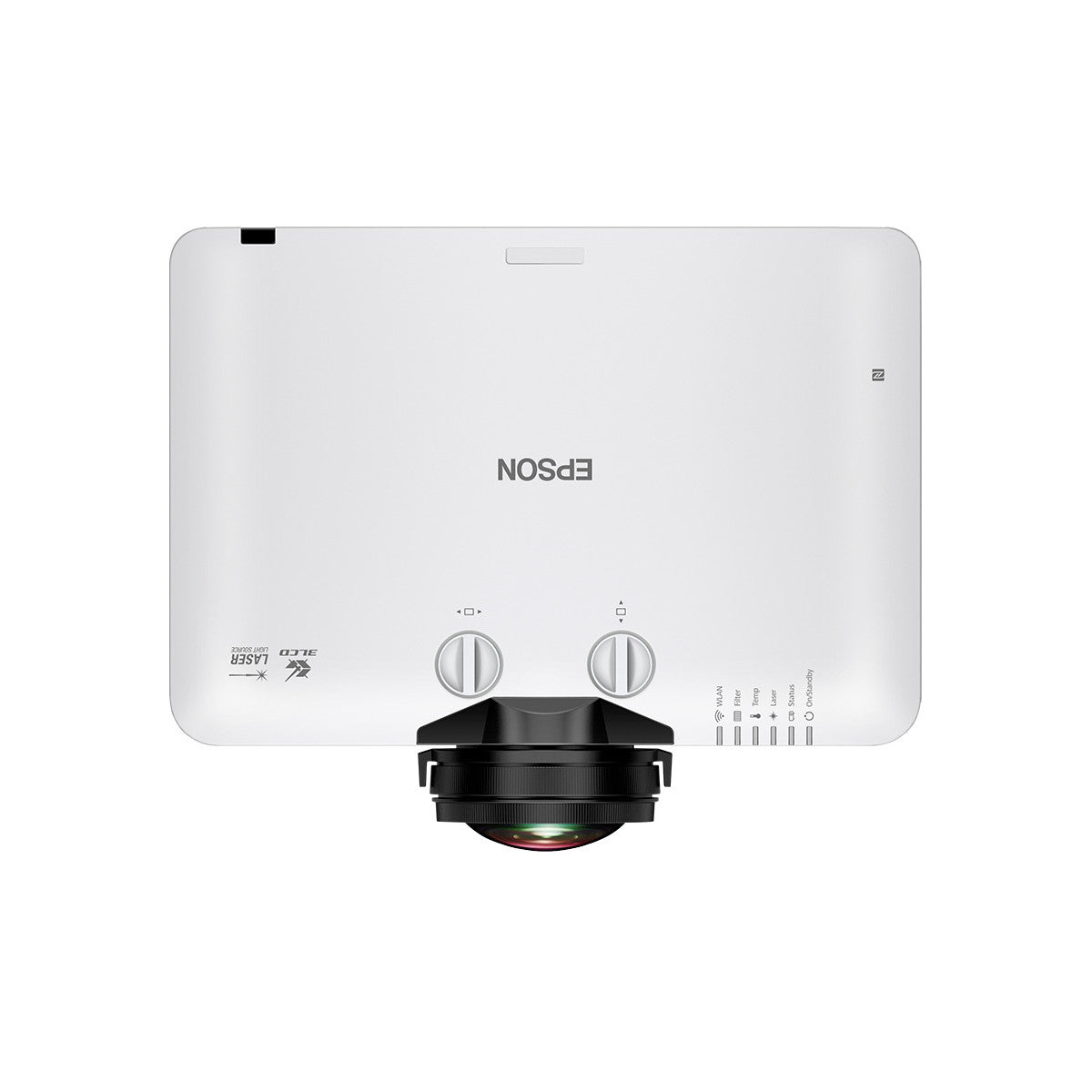

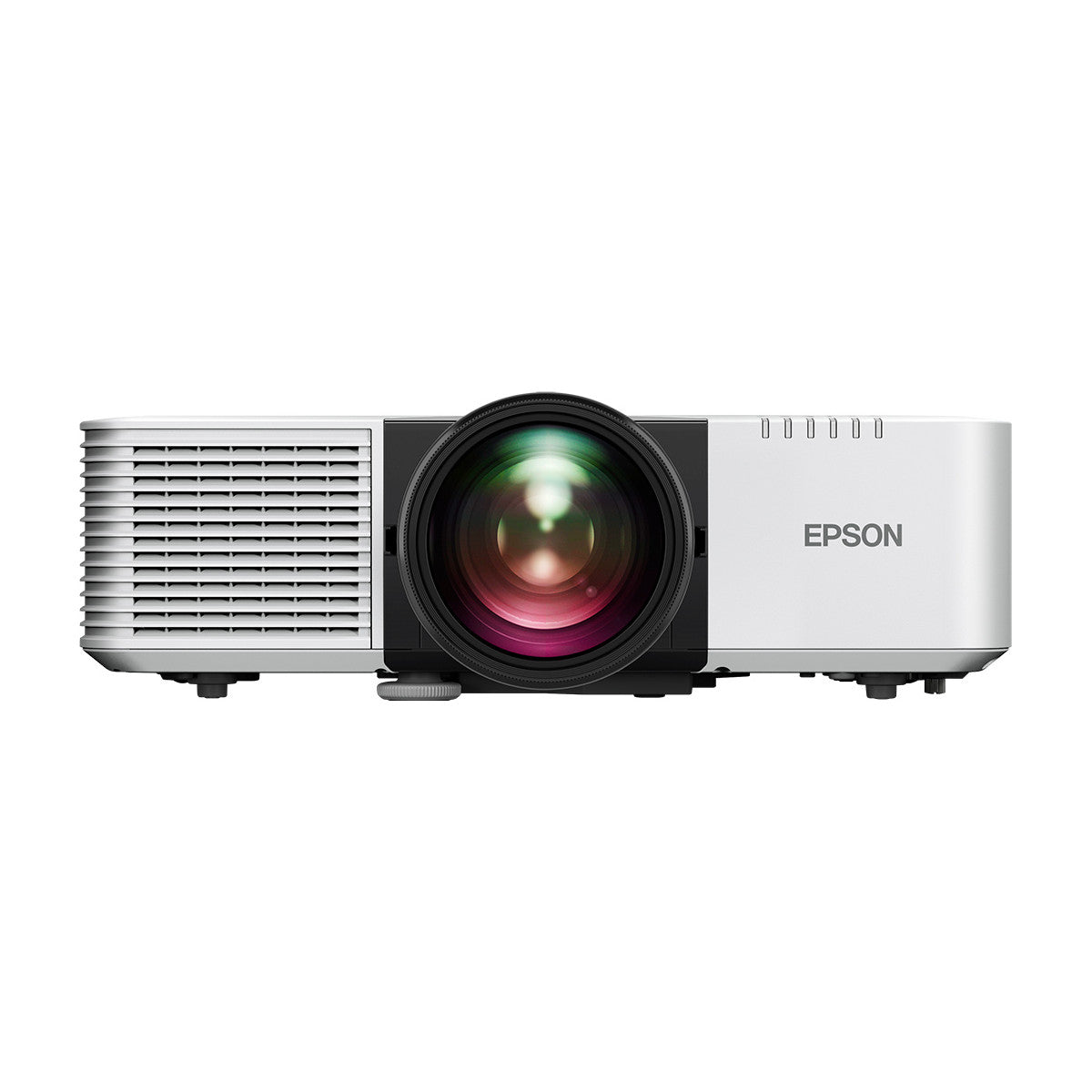

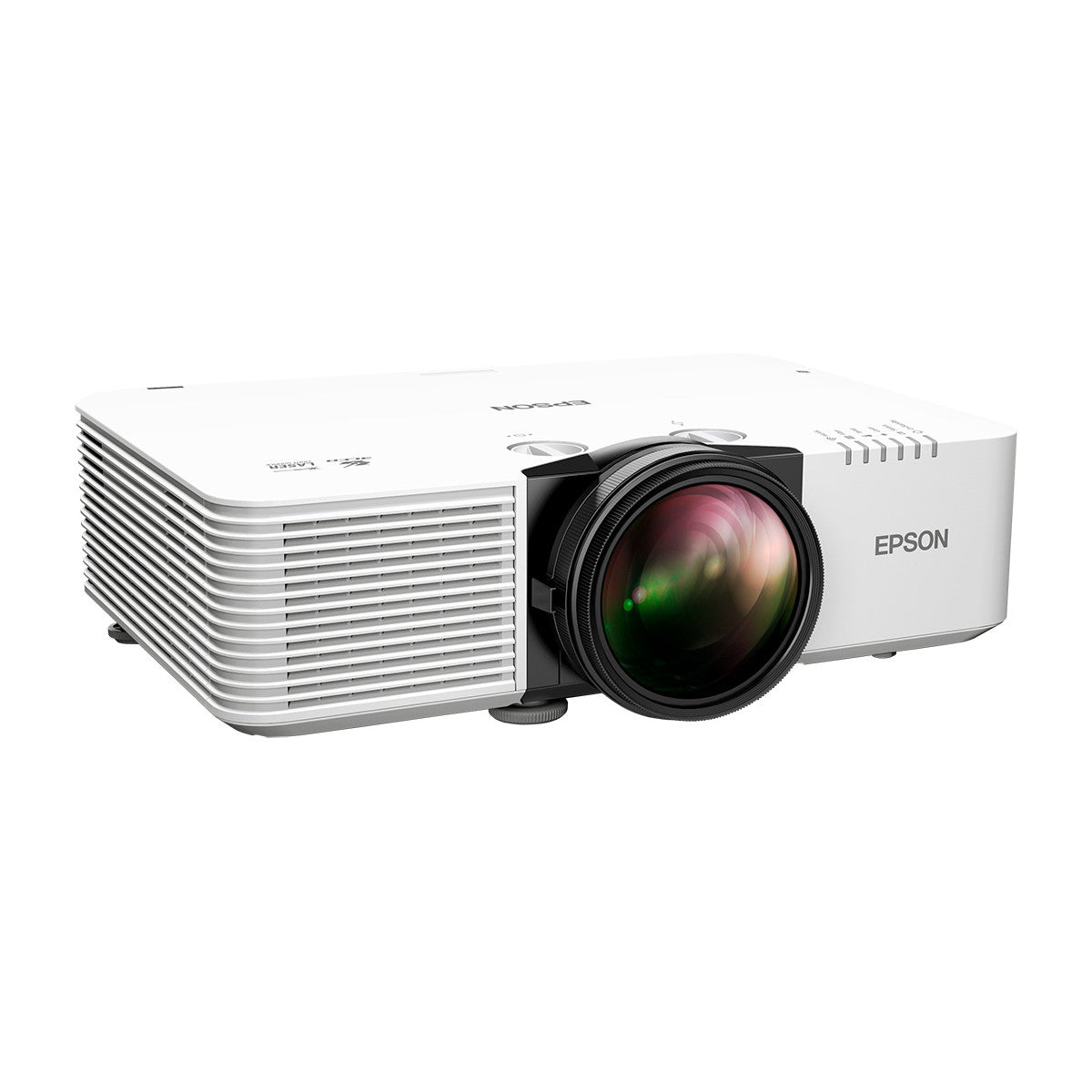

The Epson EB-L690SU gives a professional room a substantial shared screen from a shorter distance. It suits meeting and teaching spaces where the image needs size but the room cannot offer a distant projector position. The shorter projection path keeps the layout focused on the available space.
Detailed documents share a taller widescreen canvas with video. Colour projection supports charts and illustrations, while lens adjustment provides freedom in framing the picture from the chosen position. The display can be planned around an existing screen and the structure that surrounds it.
Laser illumination supports regular operation with longer rated operating intervals. Source sharing and remote management help different presenters use the room, while broader display tools leave scope for visual projects. It is a projector selected for the real depth of the space, with screen size and optical position considered together.
View manufacturer product information
| ITEM | DESCRIPTION |
|---|---|
| Wireless personal-device content | Screen Mirroring supports compatible source sharing. |
| Paired-source discussion | Split-screen projection keeps separate references visible. |
| Joined display images | Edge Blending supports multi-projector content. |
| Remote room oversight | Web Control and Web Remote provide network access. |
| DETAIL | VALUE |
|---|---|
| Projection system | 3LCD Technology, RGB liquid crystal shutter |
| Resolution | WUXGA |
| Light source | Laser |
| Colour light output | 6.200 Lumen- 4.340 Lumen (economy) In accordance with IDMS15.4 |
| Aspect ratio | 16:10 |
| Colour | White |
| Throw ratio | 0,79 - 1,36:1 |
| Zoom | Manual, Factor:1 - 1,7 |
| Focus | Manual |
| Lens shift | Manual - Vertical ±50 %, horizontal ±20 % |
| Speaker | 10 Watt |
| Dimensions | 440 × 362 × 151 mm (Width × Depth × Height) |
| Weight | 8,9 kg |
| Laser life | 20.000 hours Durability High, 30.000 hours Durability Eco |
| Interfaces | USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n, HDMI out, HDBaseT, Miracast, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC), Apple AirPlay 2 |
| Image size | 60 inches - 400 inches |
| ITEM | QUANTITY |
|---|---|
| Main unit | 1 |
| Power cable | 1 |
| Quick Start Guide | 1 |
| Remote control incl. batteries | 1 |
| User guide | 1 |
| Warranty document | 1 |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
