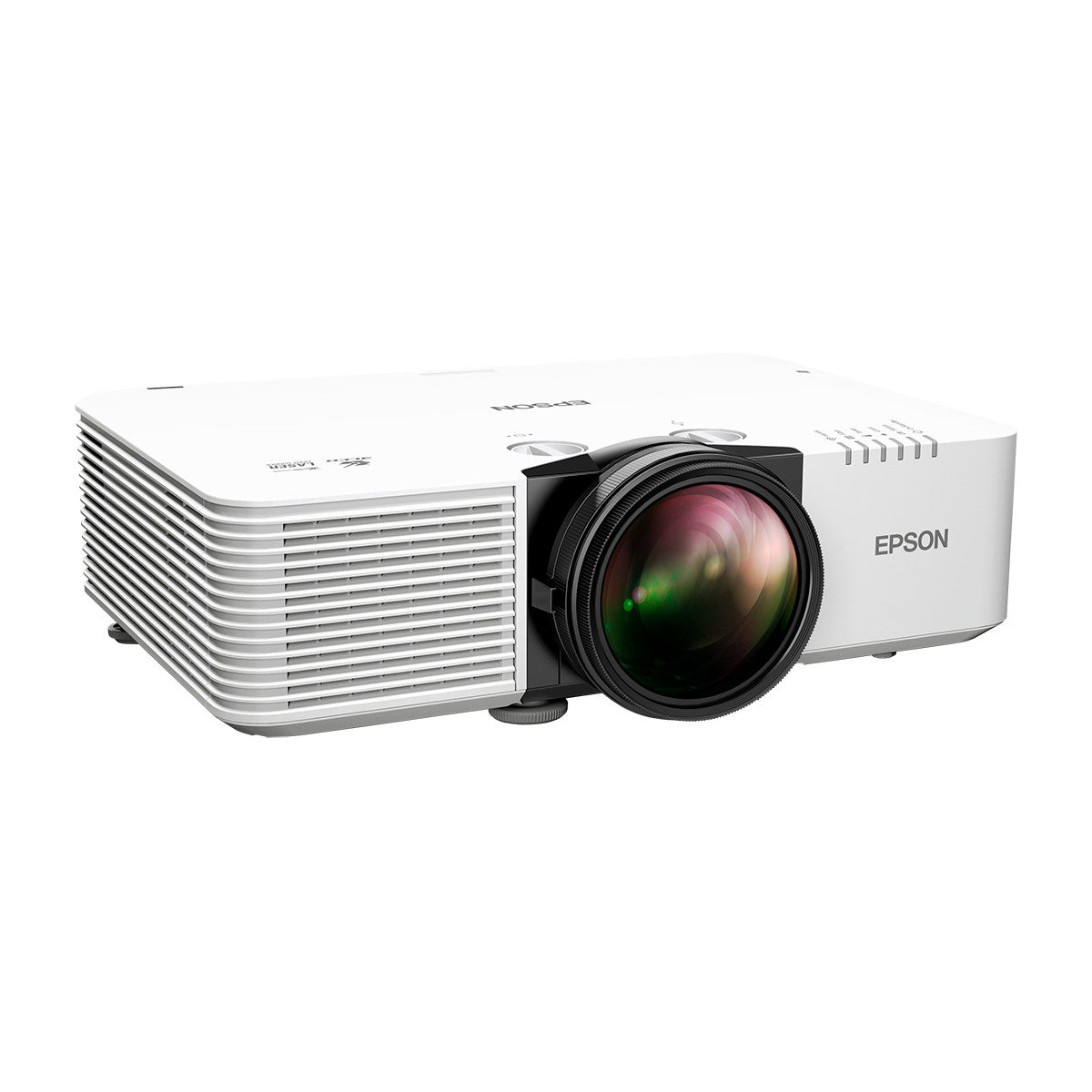

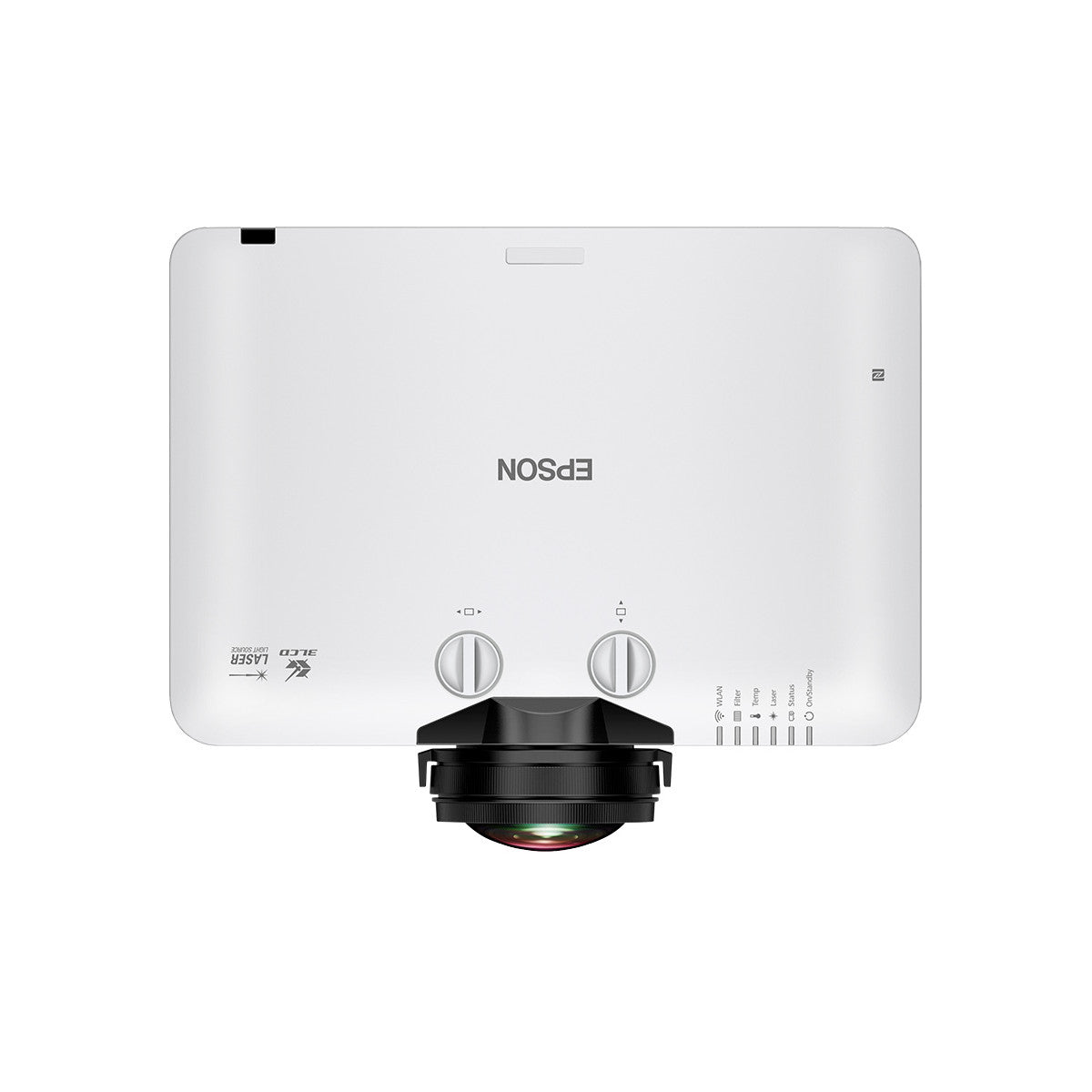

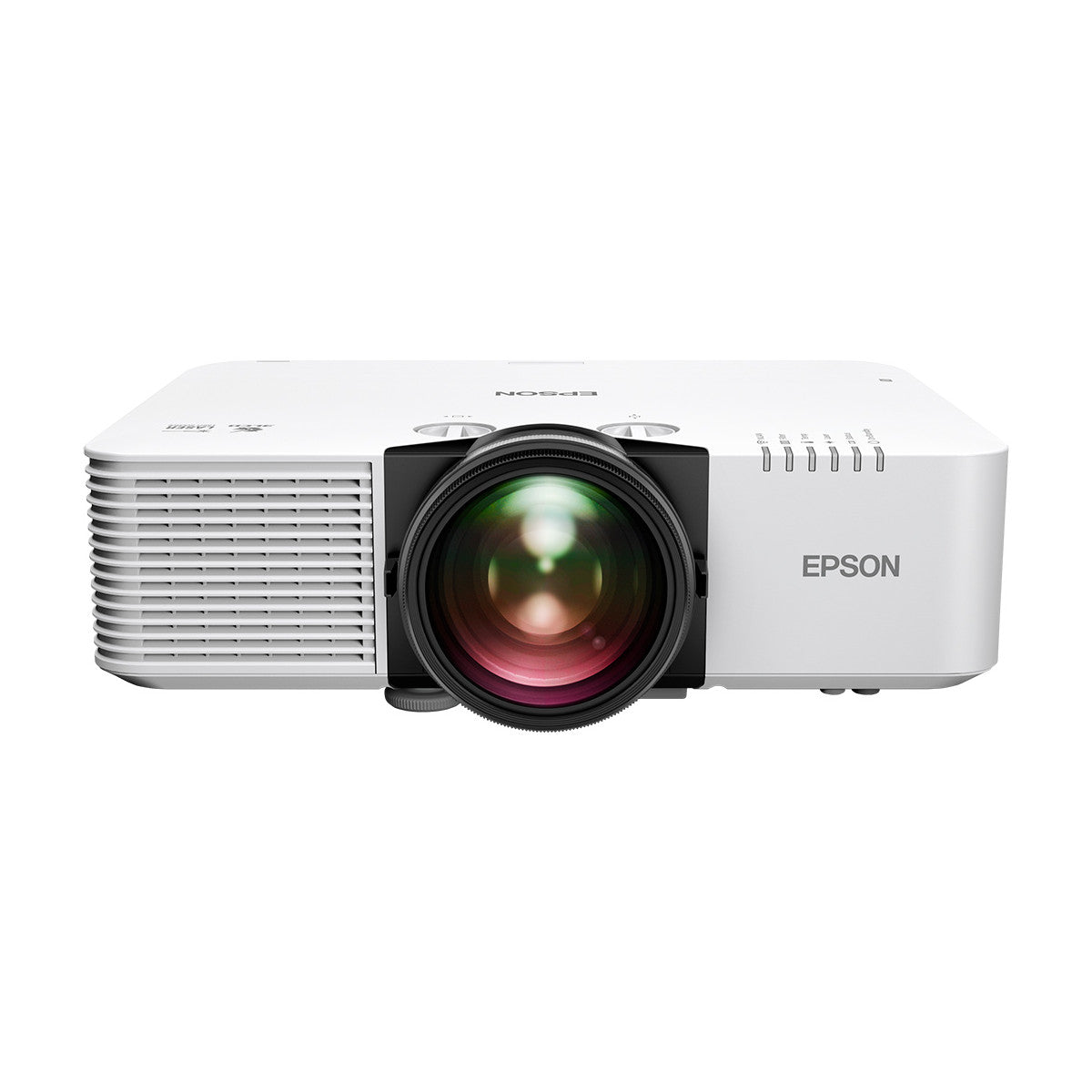

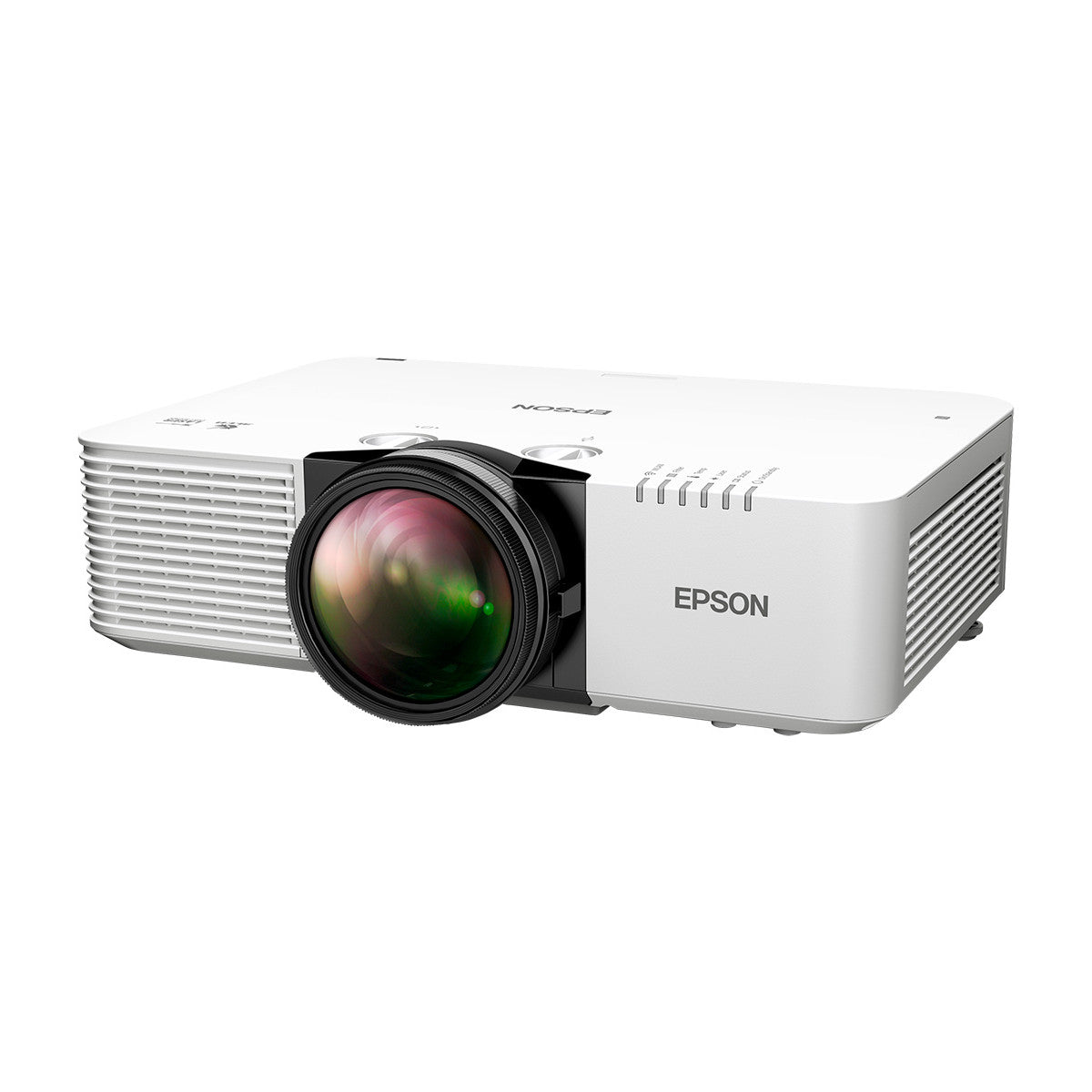

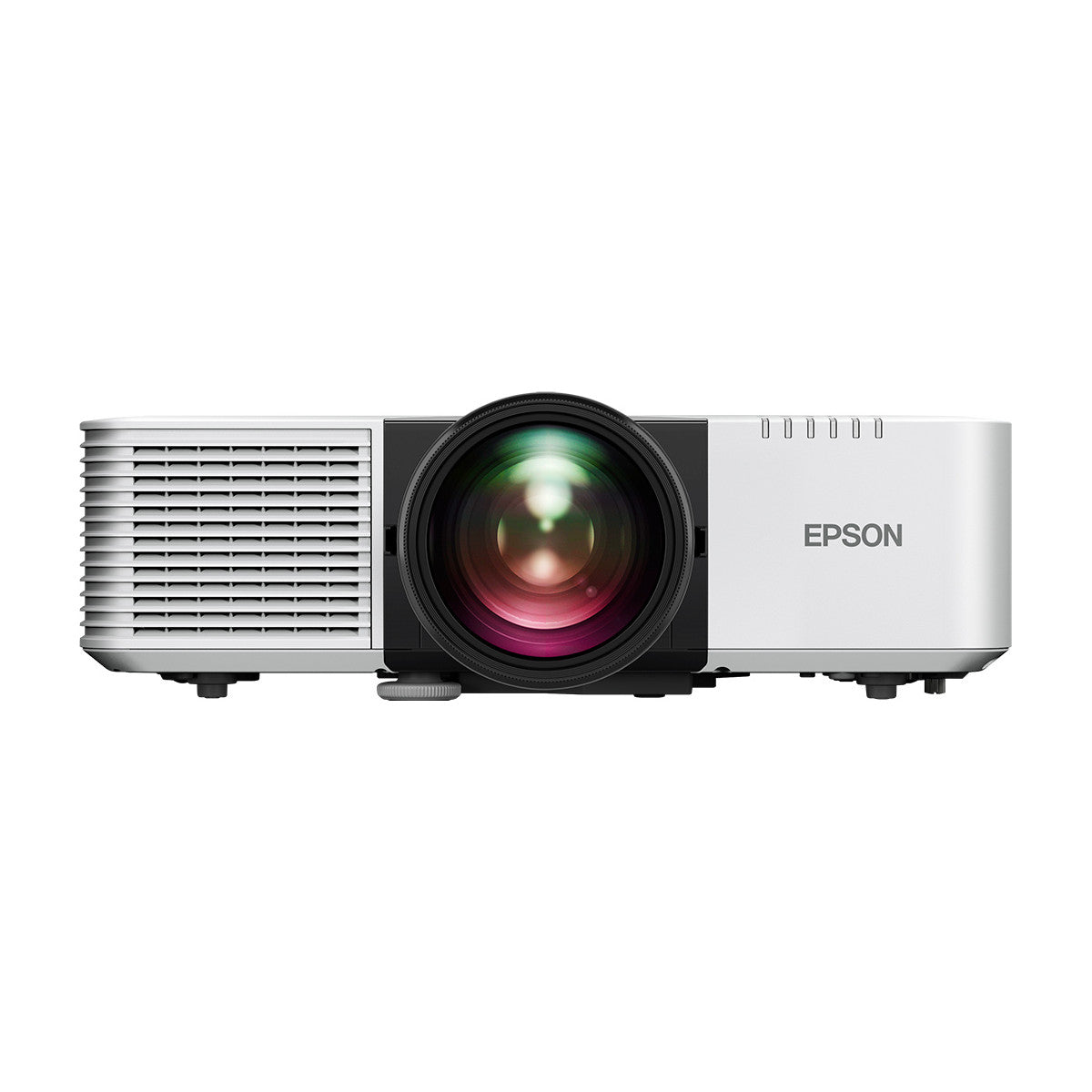

The Epson EB-L690SE gives a professional space a substantial shared image within a shorter projection path. It suits presentations and visual content where the screen needs presence but the room cannot offer a distant mounting point. The white housing gives the projector its visible character in the installation.
Detailed documents can share a taller widescreen canvas with video. Colour projection supports charts and illustrations, while additional image-detail processing contributes to the picture. The shorter throw gives the installer a useful way to work within the space's available depth.
Lens positioning provides latitude around the chosen screen and mounting location. Laser illumination supports recurring operation with longer rated light-source intervals, and remote access keeps installed equipment manageable. It is a display choice for an existing layout, with image size and projector position considered together rather than decided independently.
View manufacturer product information
| ITEM | DESCRIPTION |
|---|---|
| Continuous projected displays | Edge Blending supports multiple adjoining images. |
| Two-source visual reference | Split-screen projection presents separate sources together. |
| Broader presentation formats | Wide-aspect support accommodates extended layouts. |
| Network equipment control | Web Control and Web Remote support remote access. |
| DETAIL | VALUE |
|---|---|
| Projection system | 3LCD Technology, RGB liquid crystal shutter |
| Resolution | WUXGA |
| Light source | Laser |
| Colour light output | 6000 Lumens |
| Colour | White |
| Resolution enhancement | 4K enhancement |
| Throw ratio | 0.5-0.7:1 |
| Focus | Manual |
| Lens shift | manual |
| Dimensions | 440 × 368 × 151 mm (Width × Depth × Height) |
| Noise, normal | 36 dB (A) |
| Noise, economy | 26 dB (A) |
| Laser life, high mode | Up to 20000 hr |
| Laser life, economy | Up to 30000 hr |
| Image size | 100 in to 500 in |
| ITEM | QUANTITY |
|---|---|
| Main unit | 1 |
| Power cable | 1 |
| Remote control incl. batteries | 1 |
| User guide | 1 |
| Warranty document | 1 |
| Quick Start Guide | 1 |
