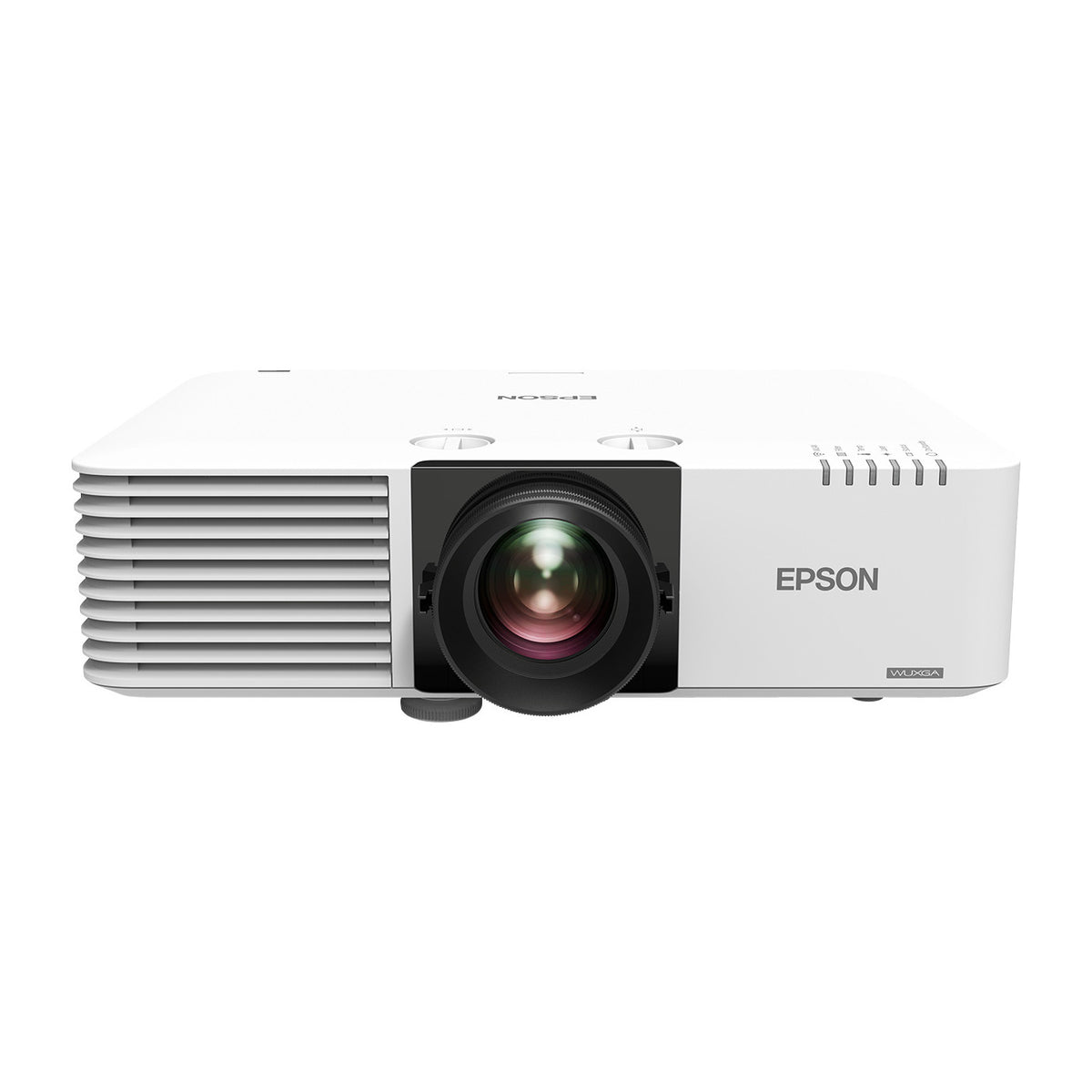

The Epson EB-L530U gives a boardroom or larger teaching space a screen for detailed working material. Documents, diagrams and video share the display, while its visual tools also make it useful for signage. It suits a room where the picture needs to reach beyond a small meeting screen.
Computer content has more vertical room within the taller widescreen format. Colour projection supports charts and illustrations, and lens positioning provides latitude around the chosen mounting point. Screen size and projector location can be considered together within the existing room.
Laser illumination supports regular use with longer rated light-source intervals. Management and sharing tools help different presenters use the display, while image-joining support leaves room for larger visual projects. It is a professional screen for a varied content routine, with its optical arrangement matched to the space rather than assumed in advance.
View manufacturer product information
| ITEM | DESCRIPTION |
|---|---|
| Multiple projected images joined | Edge Blending supports continuous multi-projector displays. |
| Two-source comparison | Split-screen projection keeps separate references visible. |
| Broader presentation layouts | Wide-aspect support accommodates extended content. |
| Network presentation access | Screen Mirroring supports compatible personal-device content. |
| DETAIL | VALUE |
|---|---|
| Projection system | 3LCD Technology, RGB liquid crystal shutter |
| Resolution | WUXGA |
| Light source | Laser |
| Colour light output | 5200 Lumens |
| Colour | White |
| Throw ratio | 1.35-2.2:1 |
| Focus | Manual |
| Lens shift | manual |
| Speaker | 10 W |
| Dimensions | 440 × 339 × 136 mm (Width × Depth × Height) |
| Noise, normal | 31 dB (A) |
| Noise, economy | 23 dB (A) |
| Laser life, high mode | Up to 20000 hr |
| Laser life, economy | Up to 30000 hr |
| Image size | 50 in to 500 in |
| ITEM | QUANTITY |
|---|---|
| Power cable | 1 |
| Remote control incl. batteries | 1 |
| Cable cover | 1 |
| User guide | 1 |
| Warranty Documents | 1 |
| Main unit | 1 |
| HDMI Cable | 1 |
