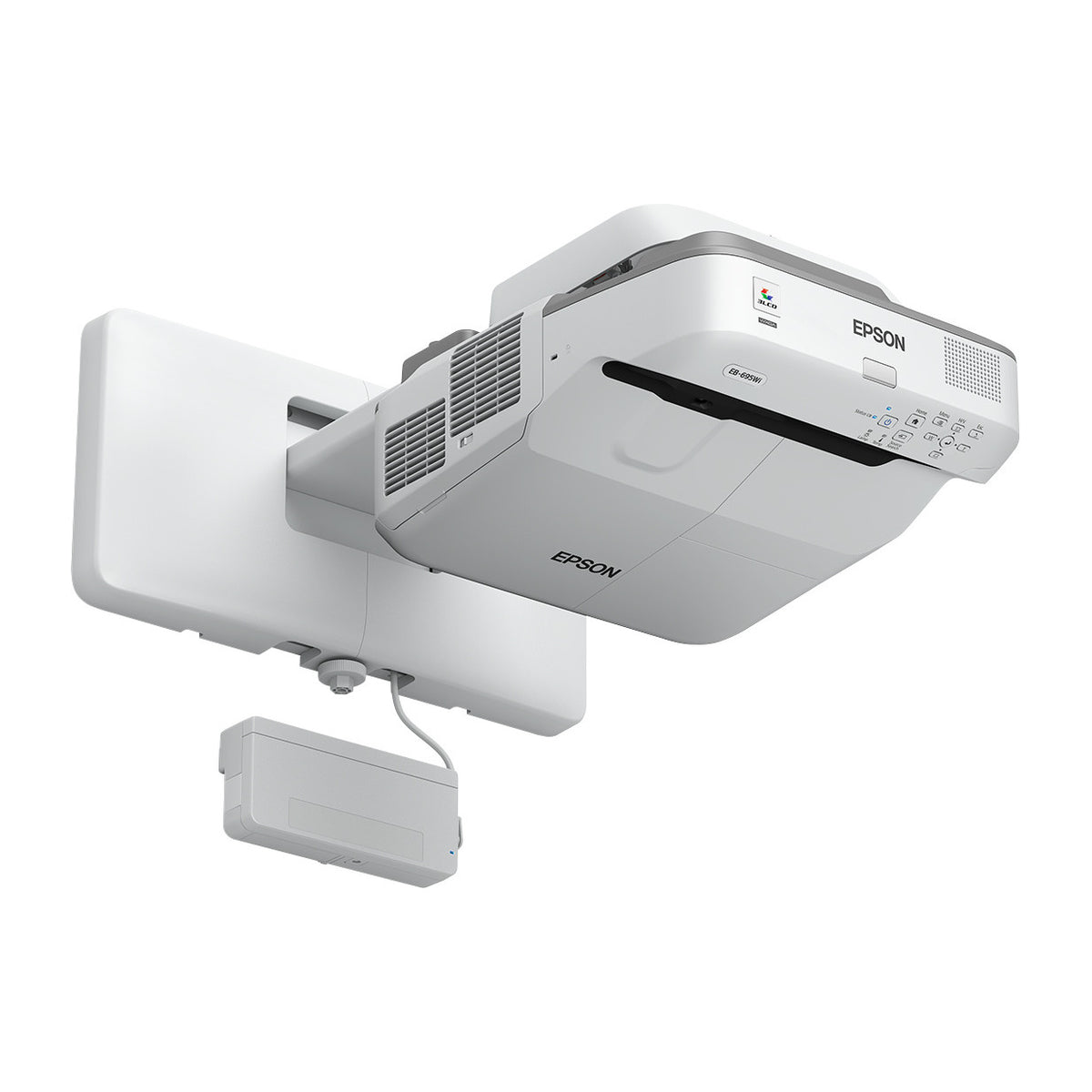

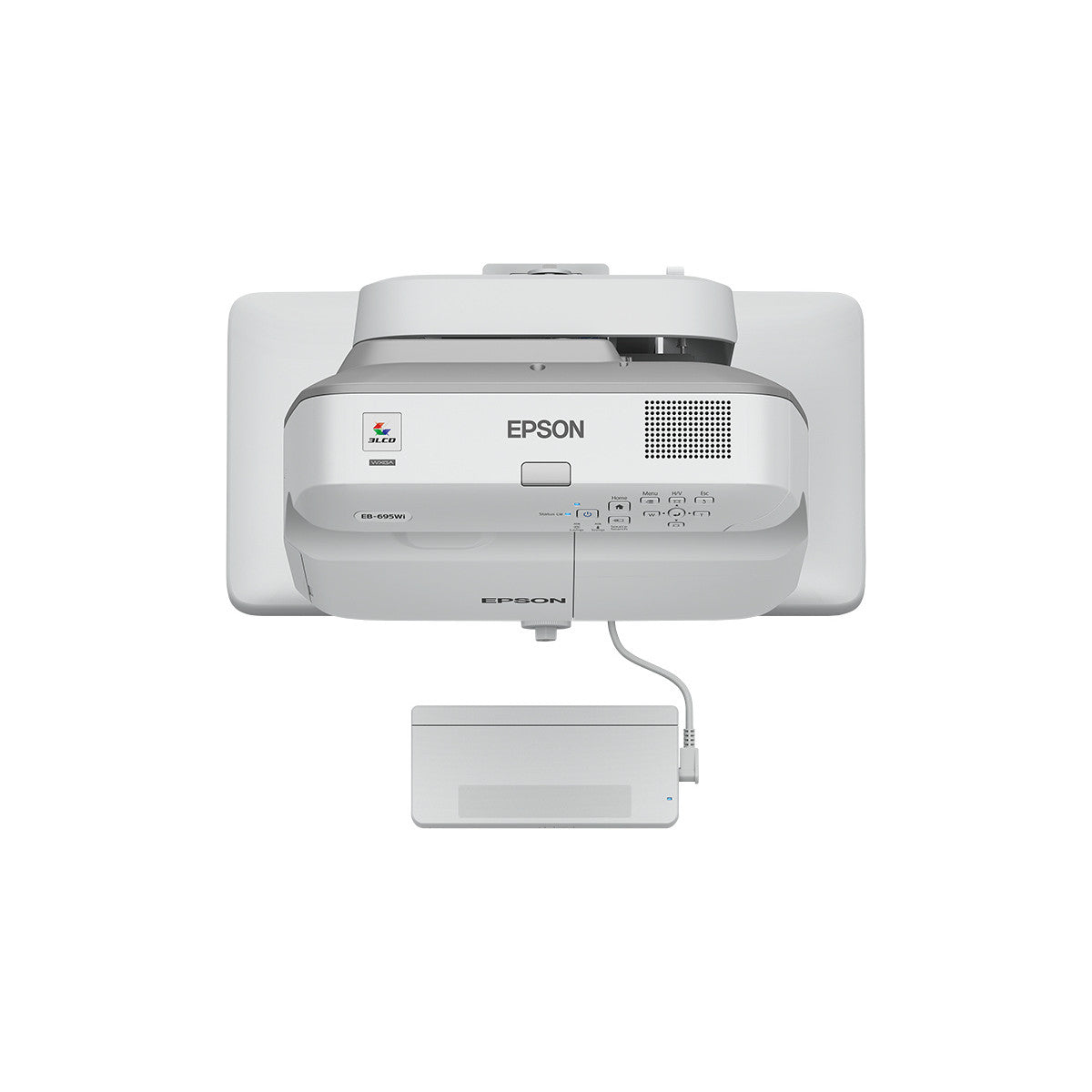

The Epson EB-695Wi makes the teaching screen part of the work. It suits lessons where people annotate documents or develop ideas at the display, with a close projection arrangement that keeps the equipment near the teaching wall. The image is a shared reference that the group can contribute to.
Pen and touch input bring a different rhythm to a lesson. Marking a diagram or working through material happens on the displayed image, while colour projection supports illustrations alongside text. The wide picture gives documents room to remain visible during the explanation.
The supplied interactive equipment makes the package's scope clear. Lamp servicing stays conventional, and management support gives the school a way to oversee the projector between lessons. It suits a classroom that uses its display for participation as well as presentation, with the teaching area considered alongside the image.
View manufacturer product information
| ITEM | DESCRIPTION |
|---|---|
| Shared pen work | Dual Pen Support accommodates more than one pen contributor. |
| Touch interaction at the screen | The supplied finger-touch equipment supports direct interaction. |
| Compared lesson sources | Split-screen projection presents separate references together. |
| Work across displays | Multi-screen interactivity supports a wider interactive teaching arrangement. |
| DETAIL | VALUE |
|---|---|
| Projection system | 3LCD Technology |
| Resolution | WXGA |
| Resolution enhancement | HD ready |
| Light source | Lamp |
| Colour light output | 3.500 Lumen- 2.900 Lumen (economy) In accordance with IDMS15.4 |
| Aspect ratio | 16:10 |
| Colour | White / Grey |
| Throw ratio | 0,28 - 0,37:1 |
| Zoom | Digital, Factor:1 - 1,35 |
| Focus | Manual |
| Interactive input | Yes - pen and finger-touch |
| Speaker | 16 Watt |
| Dimensions | 367 × 400 × 149 mm (Width × Depth × Height) |
| Weight | 5,8 kg |

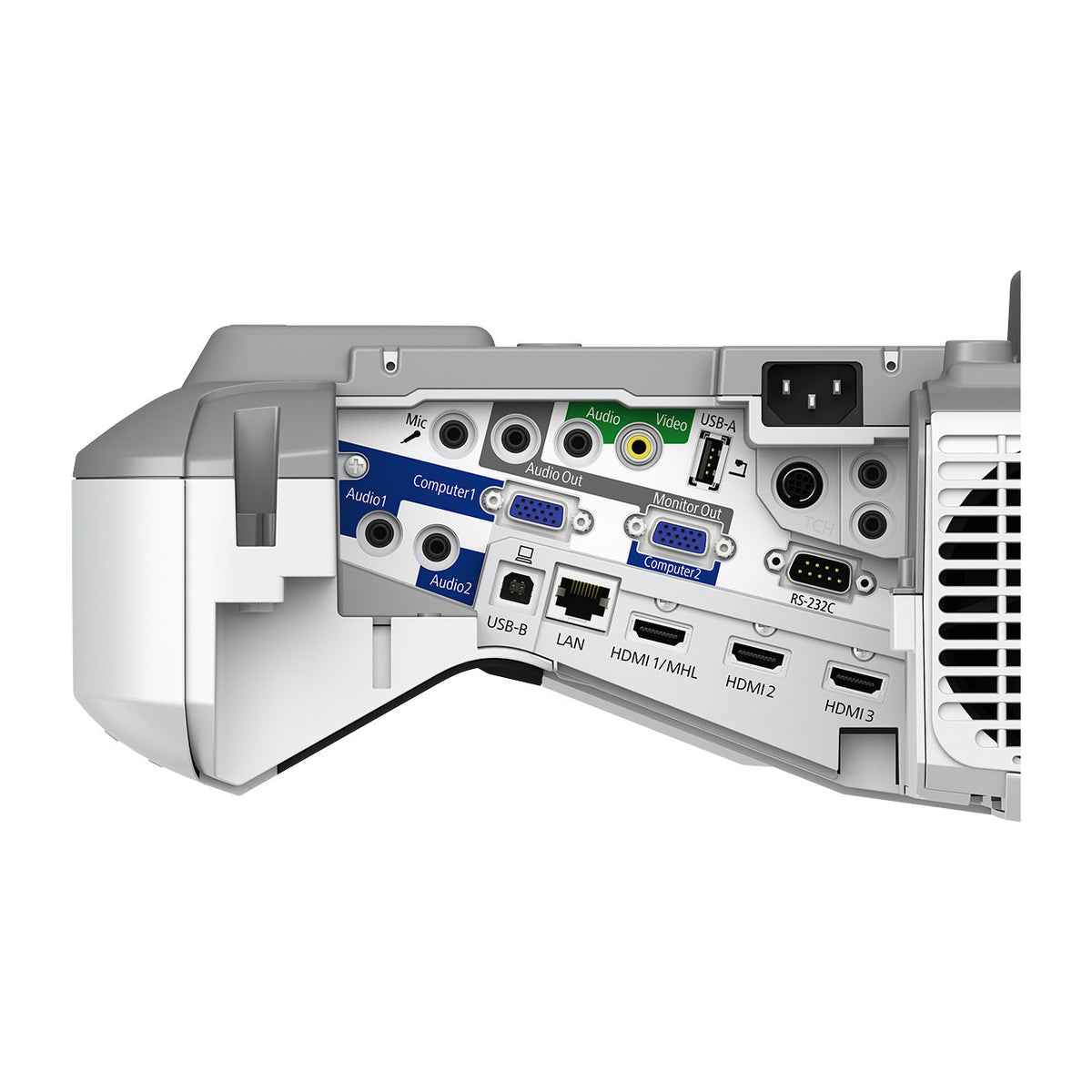

| Interfaces | USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, HDMI in (3x), Composite in, RGB in (2x), RGB out, MHL, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out |
| Image size | 60 inches - 100 inches |
| ITEM | QUANTITY |
|---|---|
| Pen tip(Teflon) | 2 |
| Pen tip(Felt) | 4 |
| Corner markers for auto screen adjustment | 1 set |
| Driver and Utilities (CD) | 1 |
| Finger touch unit | 1 |
| Installation/safety manual | 1 |
| Interactive pens | 2 |
| Main unit | 1 |
| Pen tray | 1 |
| Power cable | 1 |
| Projector feet | 1 set |
| Quick Start Guide | 1 |
| Remote control incl. batteries | 1 |
| Safety Cable | 1 |
| USB cable | 1 |
| Wall hanging bracket | 1 |
