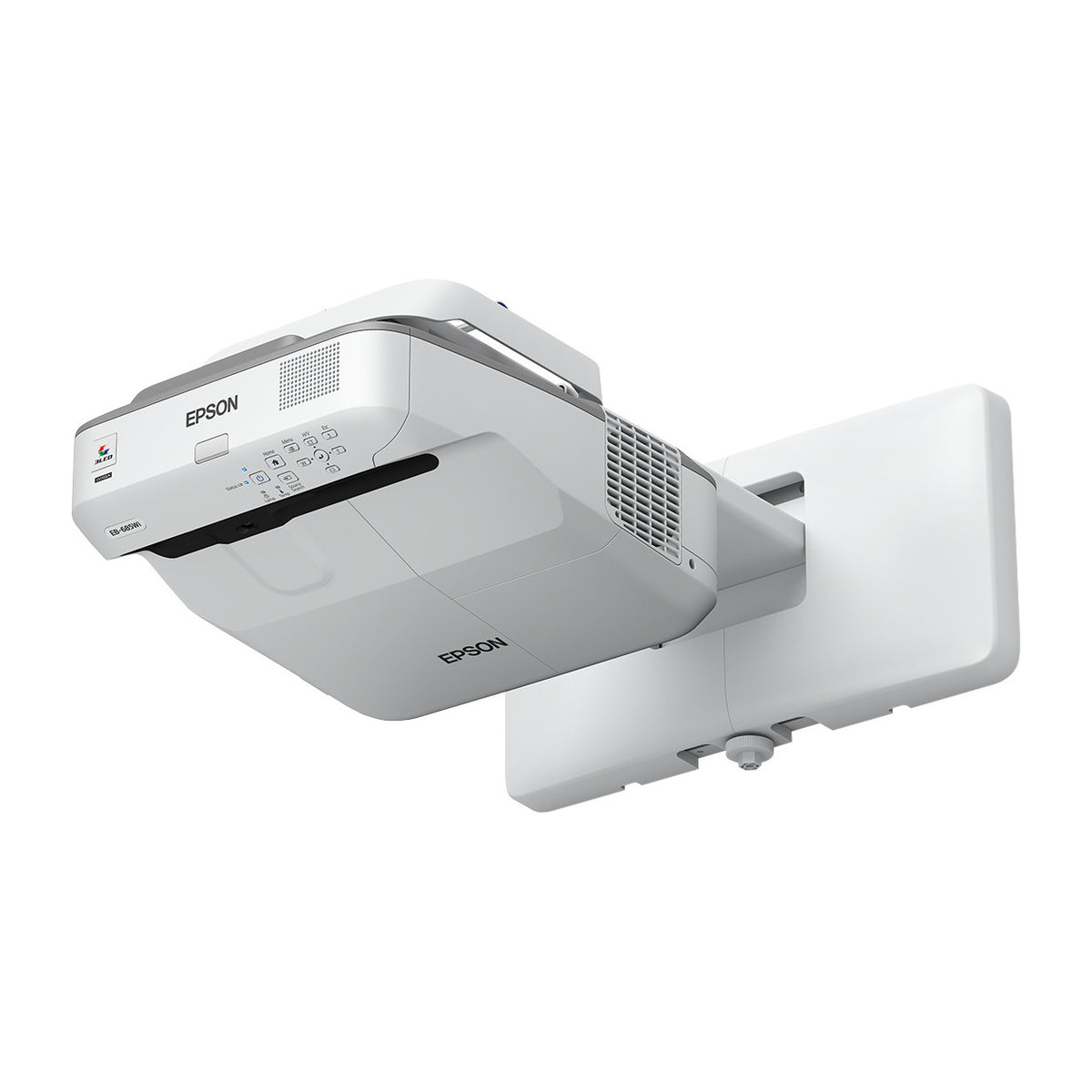

The Epson EB-685W gives a classroom a large shared display close to the teaching wall. It suits lessons and group discussion, with a short projection path that keeps the equipment near the image instead of placing it across the working space.
Colour projection supports diagrams and illustrated lesson material. The wide picture accommodates documents as well as video, and onboard sound provides accompaniment to spoken content. The close relationship between projector and screen reduces the length of the beam path that people might cross at the front of the room.
Management software gives the school a way to oversee the display between lessons. Lamp servicing remains conventional, with economy ratings for longer replacement intervals. It is a classroom projector chosen around the teaching area, where the screen needs to remain visible and the available space needs to stay useful throughout the day.
View manufacturer product information
| ITEM | DESCRIPTION |
|---|---|
| Compared sources in one lesson | Split-screen projection keeps separate material visible together. |
| Automatic source selection | Automatic input selection recognises an available input. |
| Document-camera teaching | Compatibility supports the display of physical teaching material. |
| Wireless expansion option | Wireless LAN capability offers an optional content-sharing route. |
| DETAIL | VALUE |
|---|---|
| Projection system | 3LCD Technology |
| Resolution | WXGA |
| Light source | Lamp |
| Colour light output | 3500 Lumens |
| Colour | White / Grey |
| Throw ratio | 0.28-0.37:1 |
| Focus | Manual |
| Speaker | 16 W |
| Dimensions | 367 × 400 × 149 mm (Width × Depth × Height) |
| Noise, normal | 35 dB (A) |
| Noise, economy | 30 dB (A) |
| Image size | 60 in to 100 in |
| ITEM | QUANTITY |
|---|---|
| Power cable | 1 |
| Remote control incl. batteries | 1 |
| Quick Start Guide | 1 |
| Wall hanging bracket | 1 |
| Main unit | 1 |
| Safety wire set | 1 |
| Template Sheet | 1 |
| Projector feet | 1 set |
| Installation/safety manual | 1 |
