Stainless steel V4A (salt-water and grinding dust resistant), brushed
At an apartment or office entrance serving eight occupants, a neat call-button layout matters as much as the camera behind it. The DoorBird D2208V brings eight illuminated call buttons, visitor video and access control into one architectural front panel.
A visitor presses the labelled button for the right resident or department. The recipient can see and speak to them through the DoorBird app or a compatible indoor station, then release the door or gate when appropriate. Infrared night vision keeps the entry usable after dark.
The electrical design keeps everyday entry control in the same system as the intercom. Installers can connect suitable locks or gates, set up resident credentials and build scheduled actions around calls or movement at the entrance.

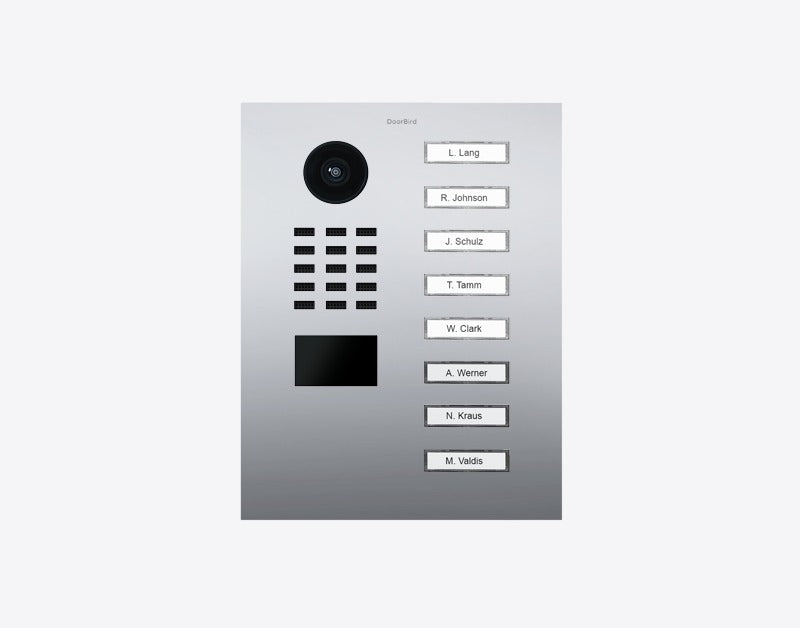

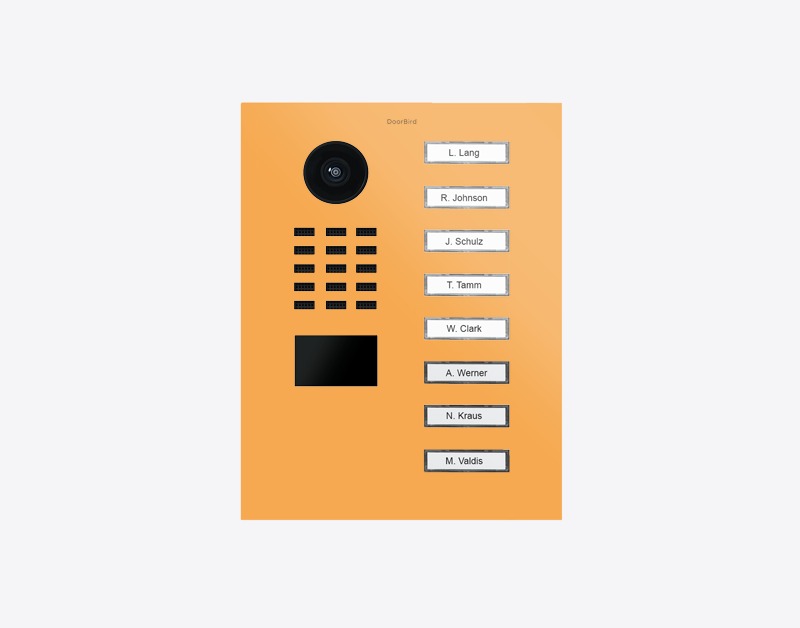

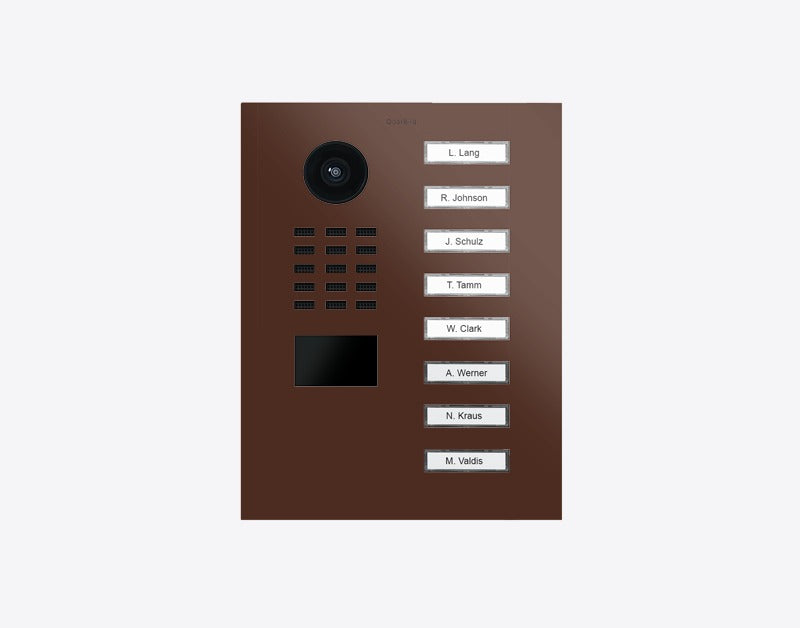

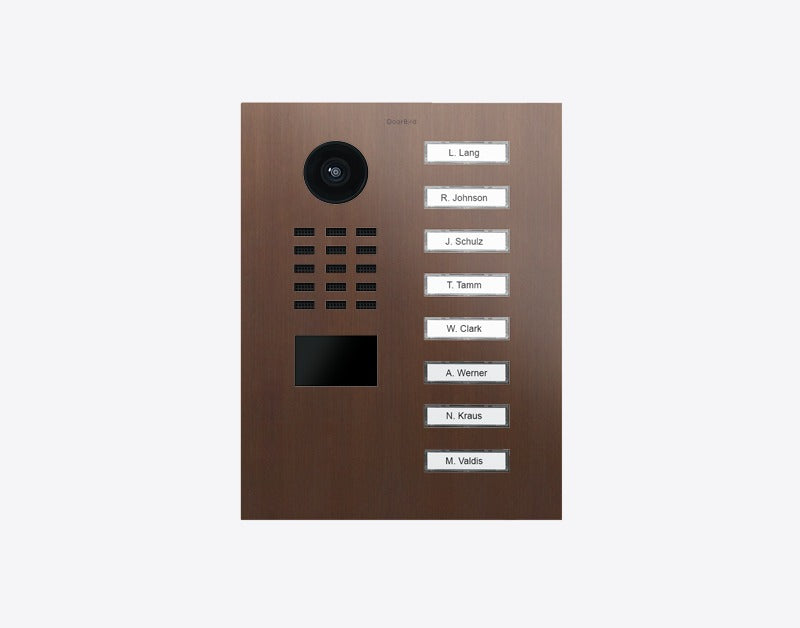

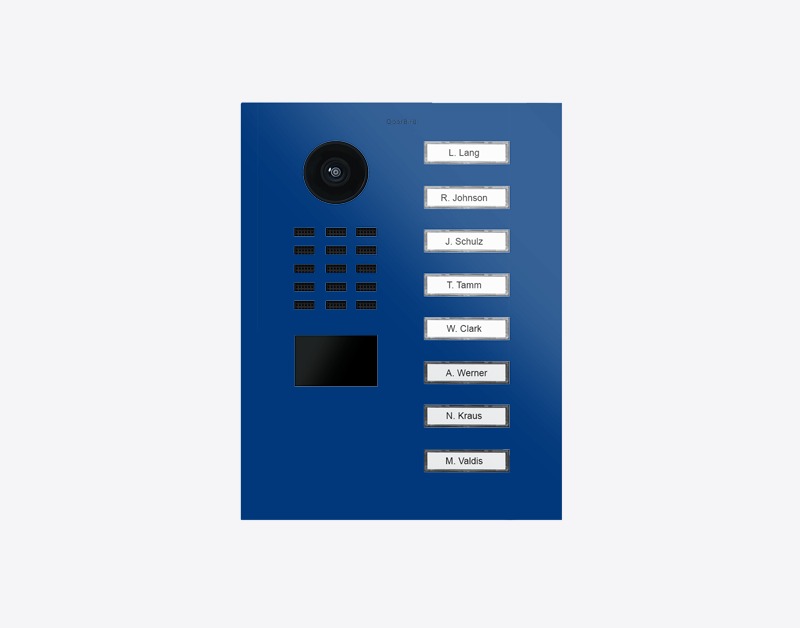

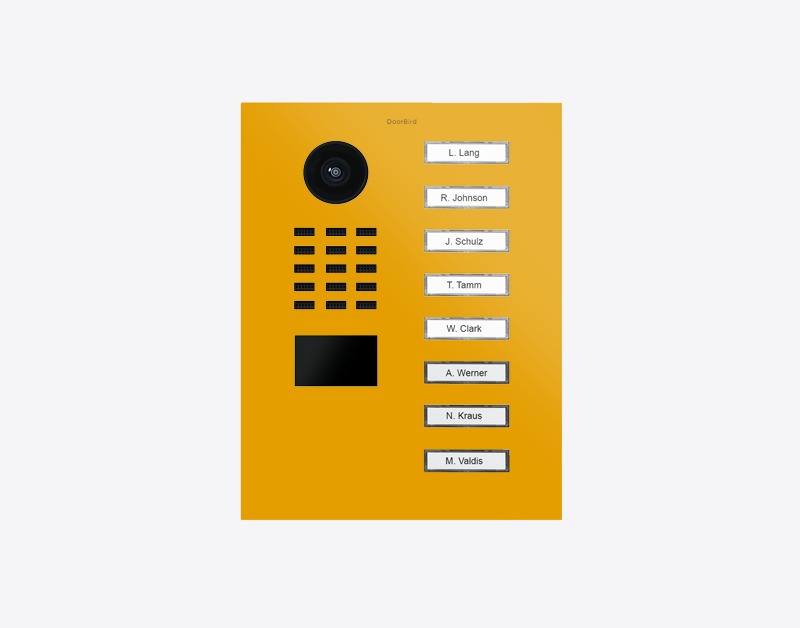

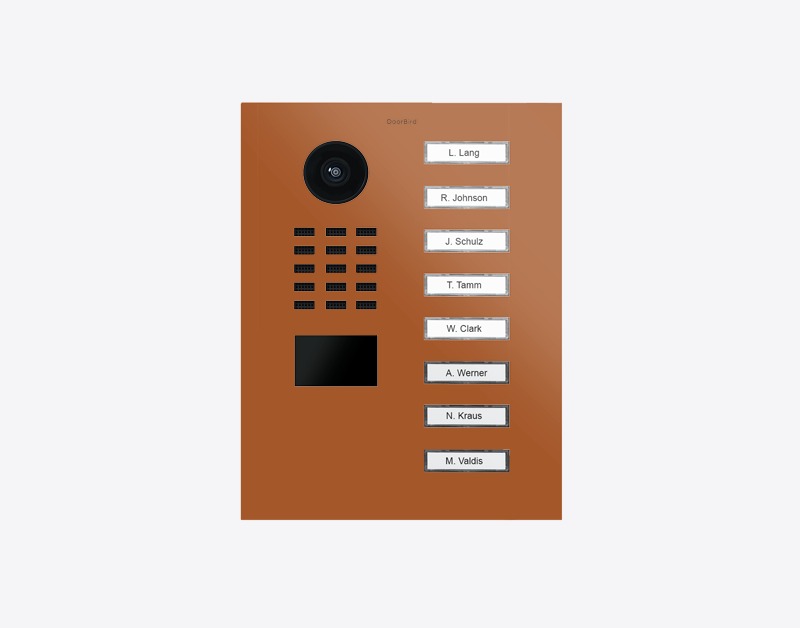

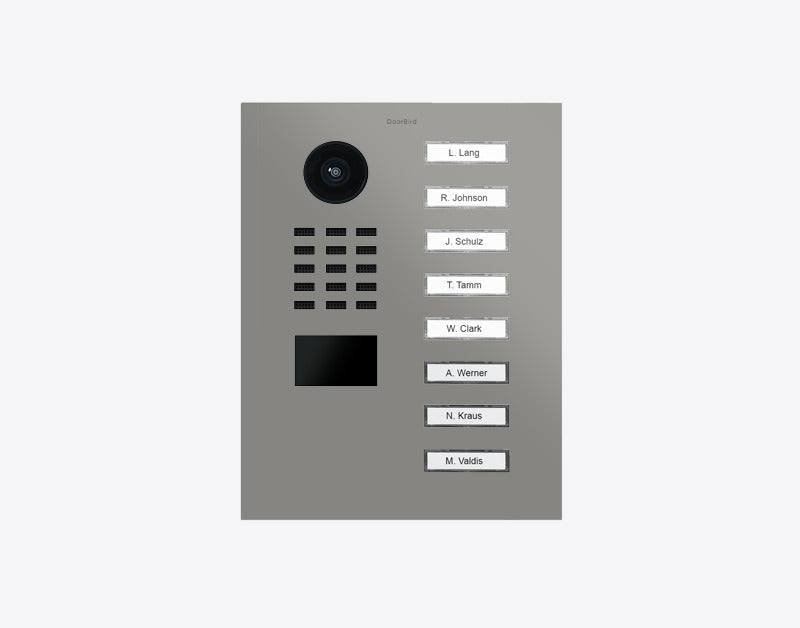

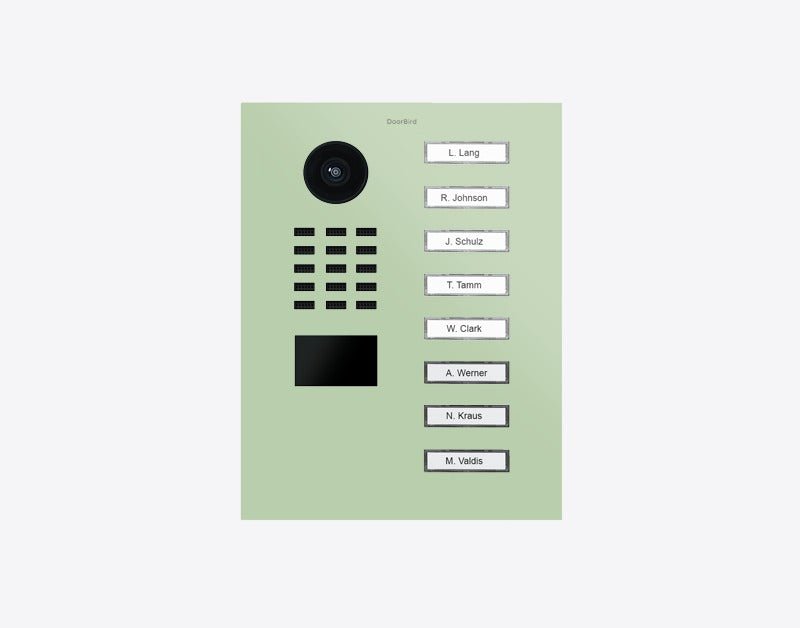

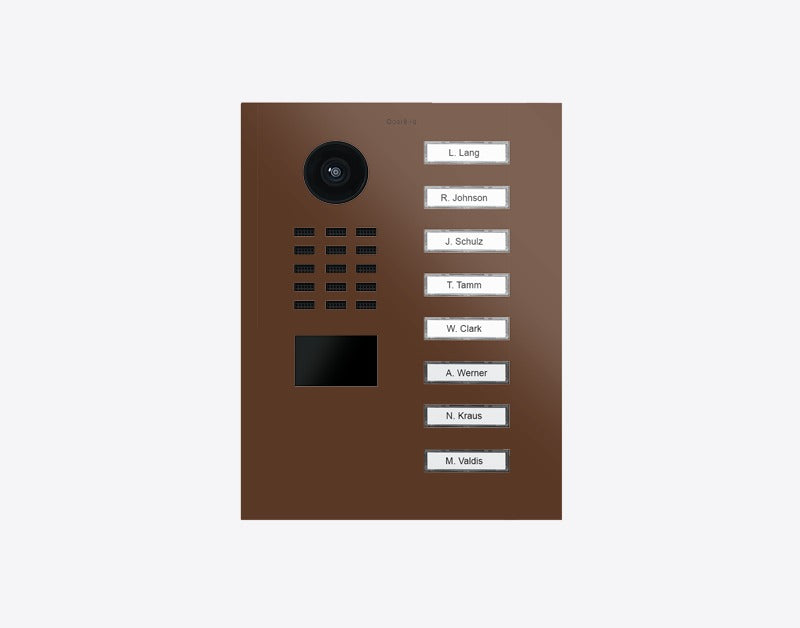

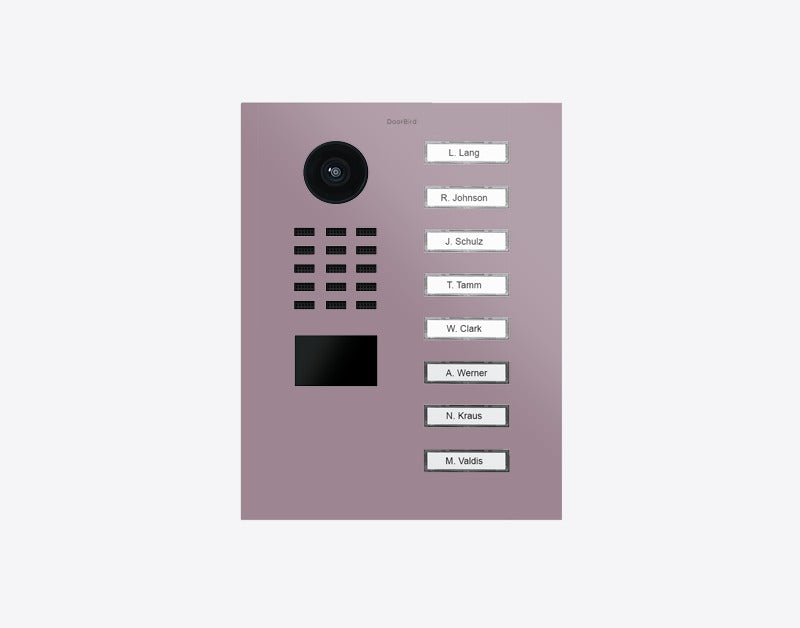

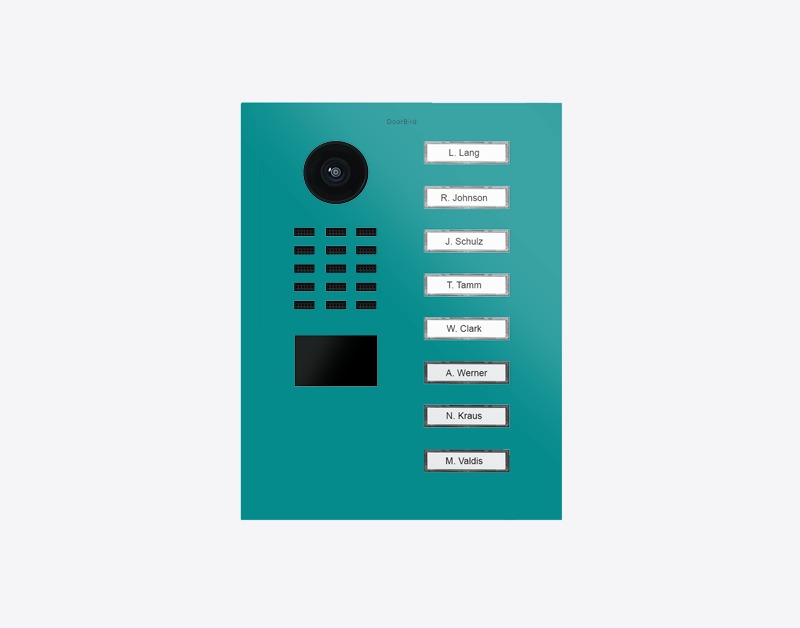

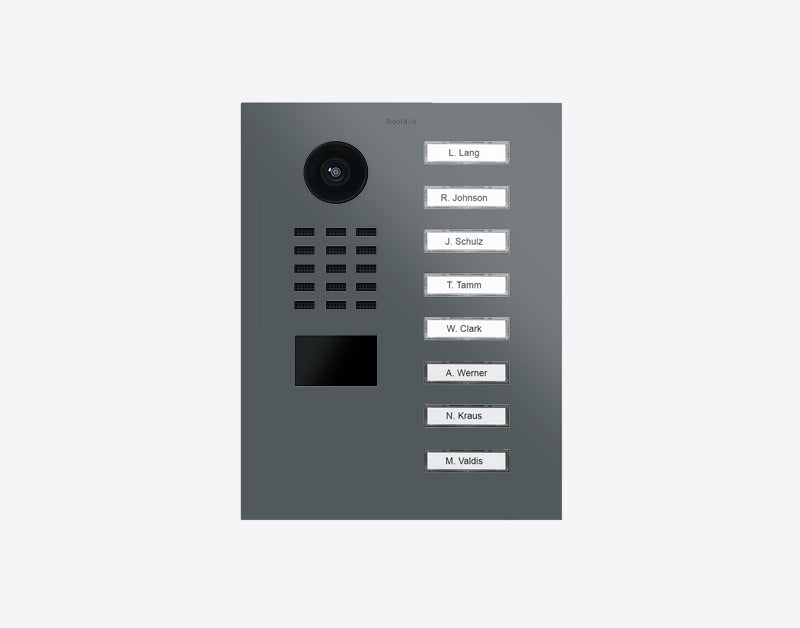

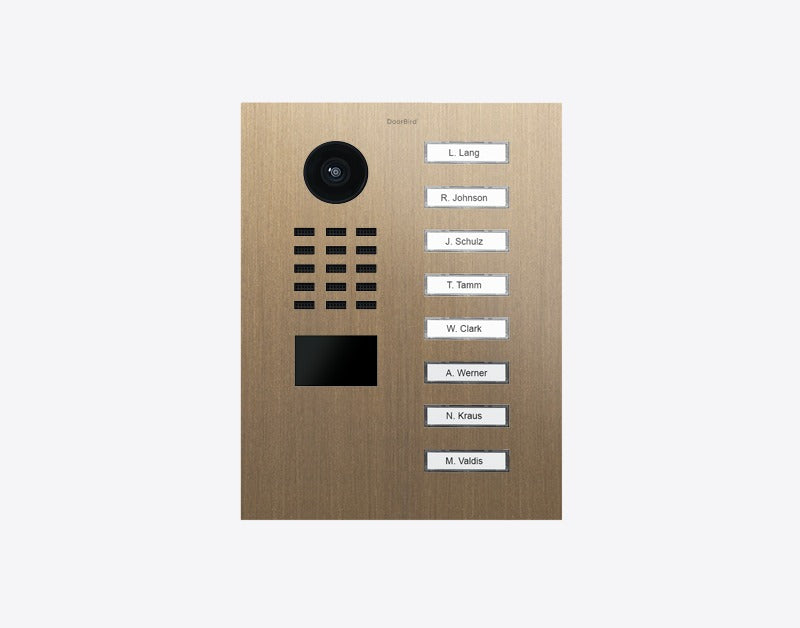

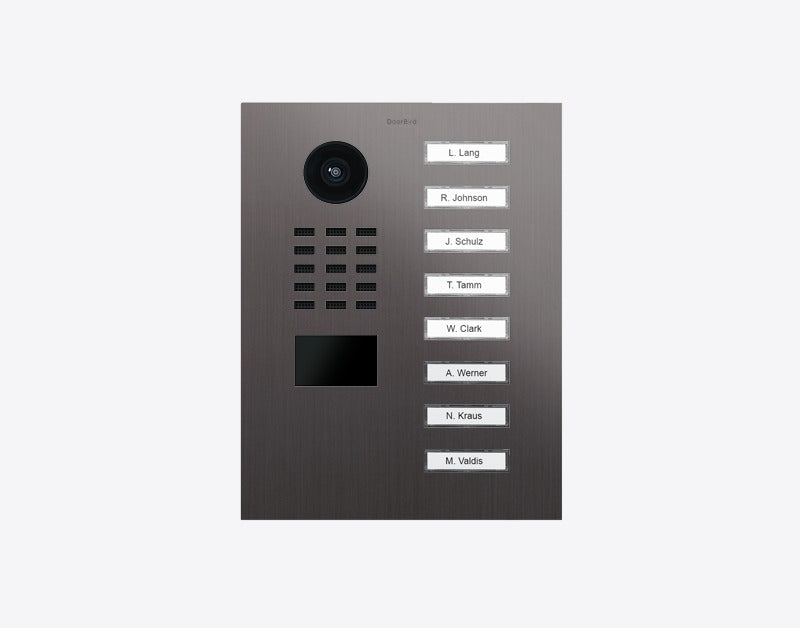

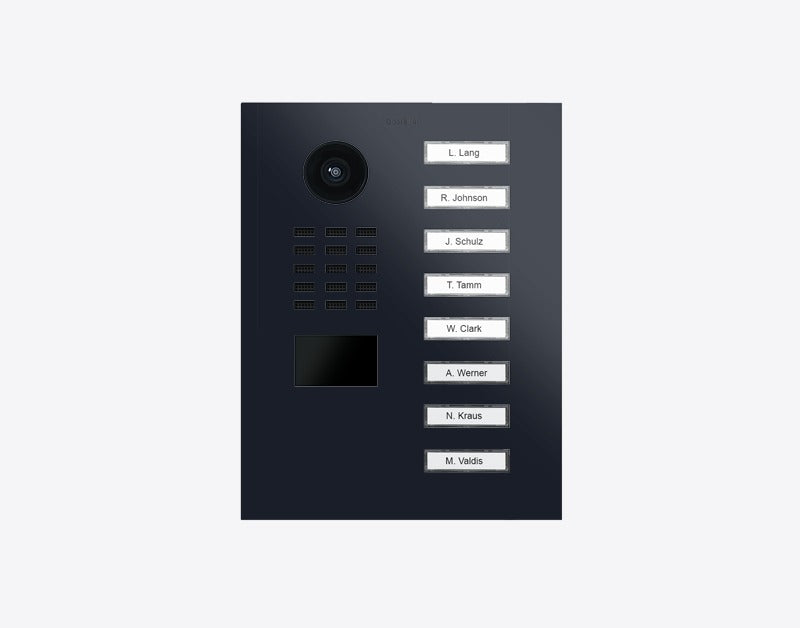

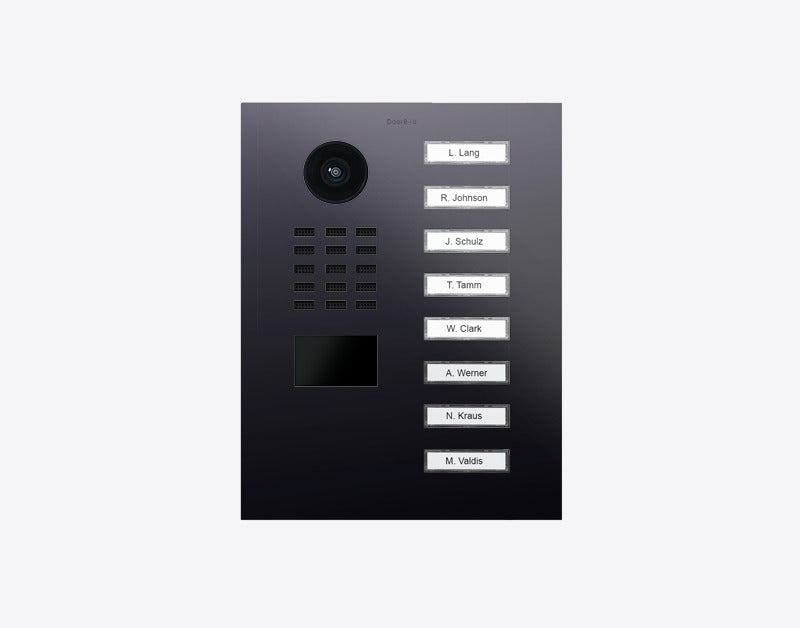

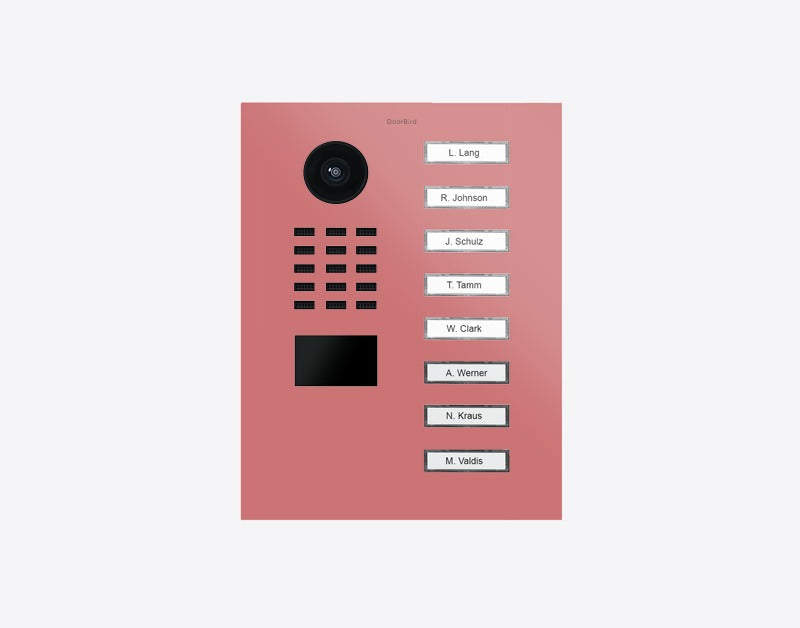

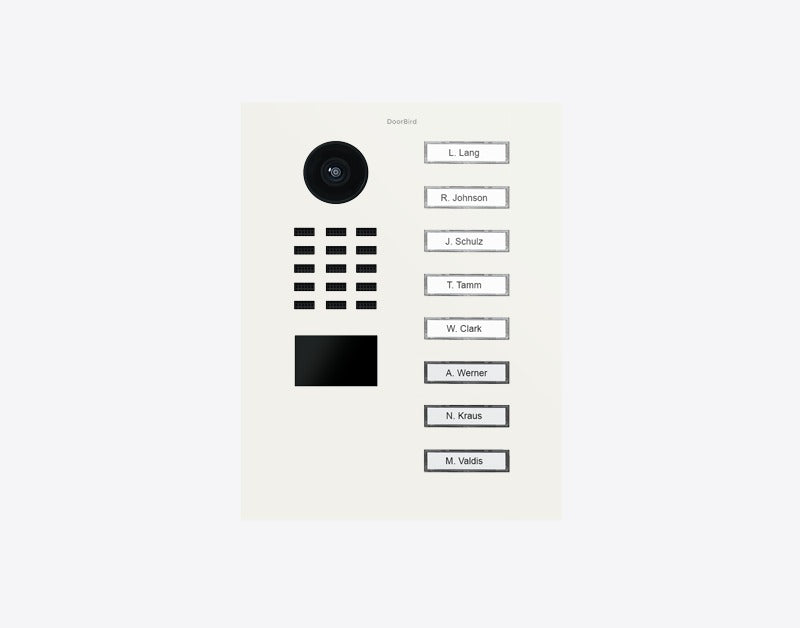

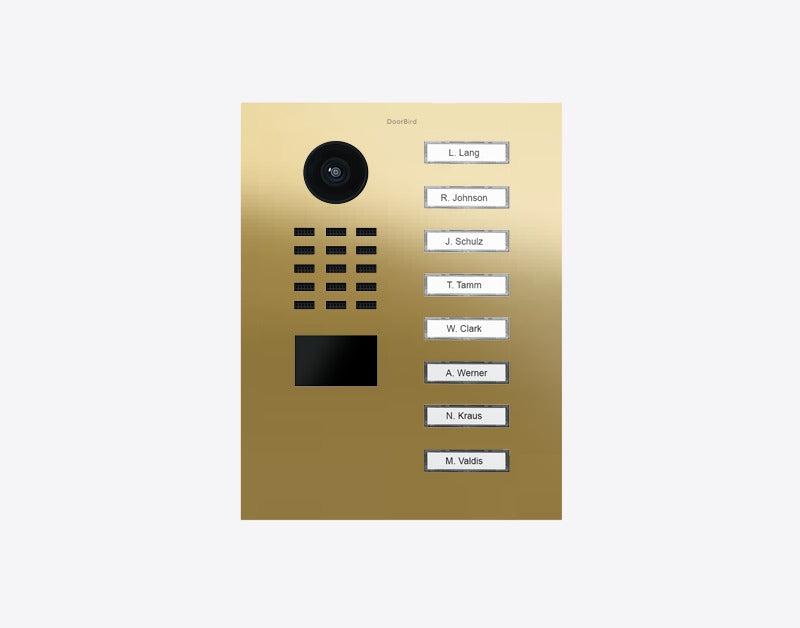

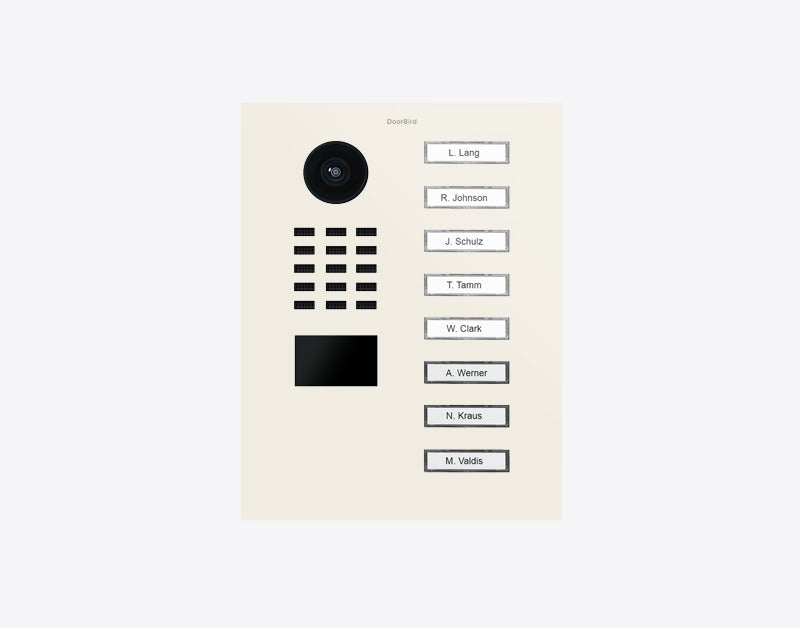

The D2208V is available in brushed metals, polished PVD finishes and a broad RAL palette. Select the required finish here, then confirm whether the project needs a flush-mount or surface-mount housing before installation.
| ITEM | DESCRIPTION |
| Main Features | |
| Resident and department directory | Individually labelled buttons make it clear who a visitor is calling at a shared entrance. |
| Remote answering | Residents and staff can check a visitor, speak to them and release the entrance from a supported phone or indoor station. |
| Credential management | The same entry point can serve permanent occupants, staff and scheduled service access. |
| Door and gate release | Authorised users can release a connected entrance without adding a separate visitor workflow. |
| Entrance event rules | Calls, credentials and movement can start scheduled notifications or supported automation actions. |
| Integration options | The station can form part of a planned smart-building, security or SIP installation. |
| DETAIL | VALUE |
| Core Specifications | |
| Call buttons | 8, illuminated |
| Mounting type | Flush-mounted or surface-mounted, product-dependent |
| Front panel thickness | 3 mm |
| Protection class | IP65, IK08 |
| Operating conditions | -25 to +55°C; 10 to 85% RH, non-condensing |
| Surface-mounted dimensions | Front cover: 220 × 283.2 mm; casing: 216 × 279 × 45.75 mm |
| Flush-mounted dimensions | Front cover: 220 × 283.2 mm; casing: 196 × 256 × 45 mm |
| Video & Audio | |
| Camera | HD, 5 megapixel, dynamic VGA to HD, HDR |
| Lens | IR-capable ultra-wide-angle hemispheric lens: 180° diagonal, 140° horizontal, 100° vertical |
| Night vision | Automatic IR-cut filter with 2 × 850 nm infrared LEDs |
| Audio | Two-way full-duplex audio with noise reduction and echo cancellation |
| Network & Access Control | |
| Ethernet and power | RJ45, PoE 802.3at Mode A/B, 10/100 Base-T |
| RFID | 125 kHz and 13.56 MHz readers; up to 3,000 tags manageable |
| Bluetooth | Bluetooth Low Energy, compatible with DoorBird Bluetooth Keyfob Remote A8007 |
| Motion sensor | Active 4D sensor; 54° horizontal, 70° vertical; 1 to 10 m configurable range |
| Door and gate control | 2 × bistable relays rated to 24 V DC/AC at 1 A; 12 V DC at 0.48 A door-opener output |
| Access interfaces | RS485, Wiegand and OSDP hardware ready; selected functions require software enablement |
| Package Contents | |
| Included | 1 × main electrical unit, 1 × front panel, 1 × RFID key fob, 1 × screwdriver, quickstart guide with Digital Passport, installation manual and small parts. A mounting housing is included only in selected countries. |
