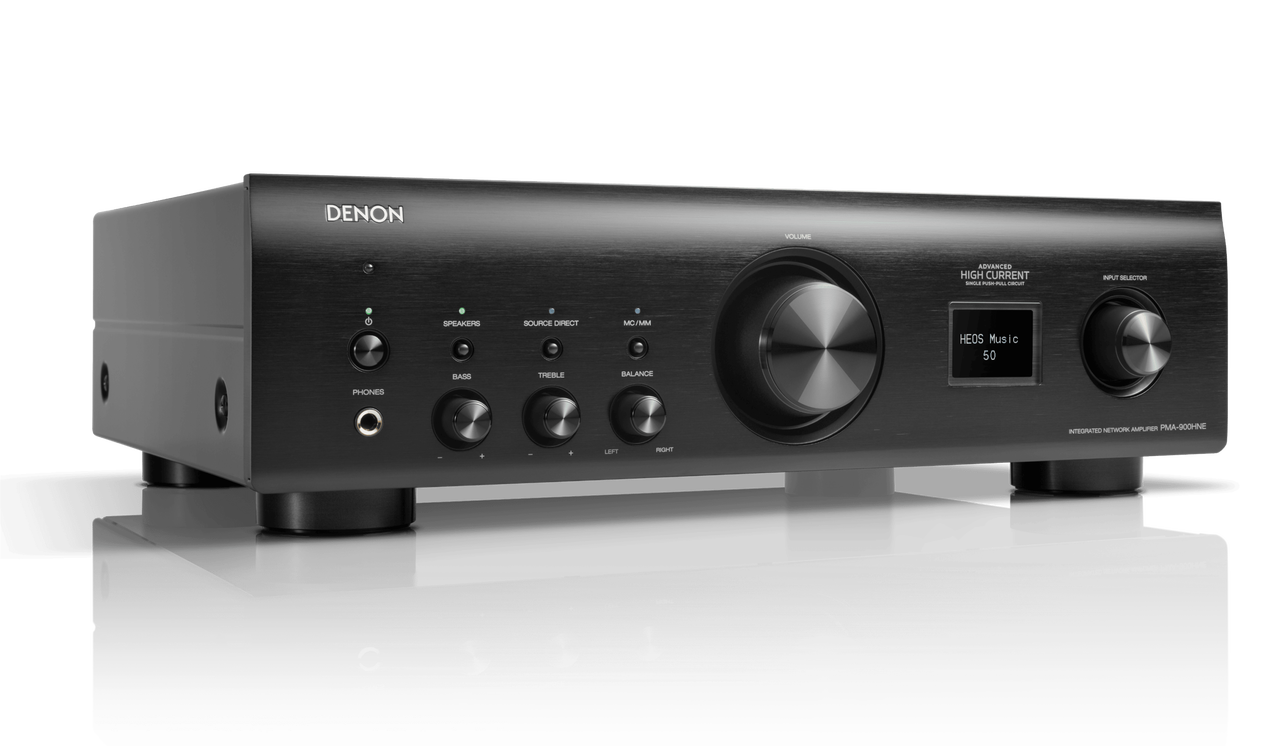

The Denon PMA-900HNE Integrated Network Amplifier, featuring Advanced High Current amplifier design, delivers superior audio from analogue and digital sources. With Phono input, digital inputs for TV sound, plus network audio streaming by HEOS® Built-in, Denon PMA-900HNE upgrades your listening experience from any source.
It is intended to become the central amplification component in a compatible music or multi-room system, with the exact output, input and connection data retained below.
Denon publishes separate Specifications, Features, Others data for this exact model. Those model-level details are retained in the technical table for system matching and installation planning.
For official product information and current support resources, visit the Denon PMA-900HNE product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Dedicated amplification | Provides the control and speaker drive at the centre of a considered two-channel or multi-room system. |
| Source-system integration | Published input and network facilities support connection to the relevant music sources. |
| System expansion | Designed to sit within a wider Denon or HEOS audio installation where applicable. |
| Wireless playback | Includes the manufacturer-published Bluetooth capability for compatible devices. |
| DETAIL | VALUE |
| Specifications | |
| Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) | 50W + 50W |
| Output power 4 Ohm (1 kHz, T.H.D. 0.7%) | 85W + 85W |
| Total Harmonic Distortion | 0.01% (-3dB, 8ohm, 1kHz) |
| Power Amplifier Circuit | Advanced HC Single Push-Pull Circuit |
| Power Amp Output circuit Structure | Single Push-Pull with Darlington transistor |
| Pre Amplifier Circuit | Variable Gain Preamplifier |
| Volume | Electric - Controlled by Encoder |
| Bass Treble Mid Balance Control | Yes / Yes / No / Yes |
| Source Direct | Yes |
| Input Sensitivity: MM | 2.5mV / 47 kohm |
| Input Sensitivity: MC | 200 |
| Signal to Noise Ratio: MM/MC | 86 dB / 71 dB |
| Input Sensitivity: High level | 105 mV / 40kohms (Source Direct Off) |
| Signal to Noise Ratio: High level | 105dB |
| Treble Control | ± 8 dB at 10 kHz |
| Bass Control | ± 8 dB at 100 Hz |
| Features | |
| Advanced HC-TR single push pull circuit | Yes |
| Wide range amplifier | Yes |
| High current dynamic power supply | Yes |
| Power amp discrete construction | Yes |
| Micro processor auto off | Yes |
| Solid Heat Sinks | Yes |
| Wi-Fi / Wired LAN | Yes / Yes |
| Wi-Fi | 2.4GHz (11b/g/n) 5GHz (11a/n/ac) |
| Wi-Fi Off Mode | Yes |
| Bluetooth / aptX / NFC | Yes / No / No |
| Internet Radio | Yes (TuneIn) |
| Pandora | Yes (NA) |
| Sirius XM Internet Radio | Yes (NA) |
| Spotify Connect | Yes |
| Deezer Premium+ / Deezer HiFi | Yes / No (NA / EU) |
| QQ MUSIC | Yes (China) |
| Sound Cloud | Yes |
| Tidal | Yes (NA / EU) |
| Amazon Music Unlimited / Amazon Music HD / Prime Music | Yes / Yes / Yes |
| Napster | Yes |
| iHeartRadio | Yes (NA) |
| Mood Mix | Yes (NA / EU) |
| AWA | Yes(Japan) |
| Other | Yes |
| Airplay | Yes (Airplay 2) |
| DSD-Audio network streaming | Yes (5.6Mhz) |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | Yes / Yes / Yes / Yes / No |
| Gapless Playback | Yes |
| Remote APP: iDevice / Android | Yes / Yes |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-A: DSD / WAV / FLAC / AIFF / ALAC | <=5.6 / 192 / 192 / No / 96 |
| Works with Amazon Alexa | Yes |
| Works with Google Assistant | Yes |
| Works with Apple AirPlay (Siri) | Yes |
| Others | |
| Low Noise OELD display | Yes |
| Source Direct | Yes |
| Display: Dimmer / Off | Yes / Yes |
| IR Learning for TV | Yes |
| Inputs Outputs | |
| Audio Inputs | RC-1246 |
| Digital in: USB-B / optical / coaxial / USB-A | 0 / 3 / 1 / 1 |
| Phono Input: MM / MC | Yes / Yes |
| Pre-out / Main-in | Subwoofer / No |
| Power Amp Direct IN | No |
| Gold plated Cinch | Yes |
| Speaker A / B | Yes |
| Remote Control Bus in / out | Yes (Remote Out) |
| Headphone Out | Yes |
| Headphone Gain Control (low / mid / high) | No |
| General | |
| Available colors: Premium Silver / Black | Yes / Yes |
| Metal Front Panel | Aluminum |
| Power Consumption in W | 200W |
| Standby Consumption in W | 0.2W |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC-1246 |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) | 434 x 376 x 131mm 17.1 x 14.8 x 5.2in |
| Weight | 8.3kg 18.3lb |
| Carton Maximum Dimensions (W x D x H) | 518 x 385 x 209mm 20.4 x 15.2 x 8.2in |
| Carton Weight (inc. product) | 10.3kg 22.7lb |
