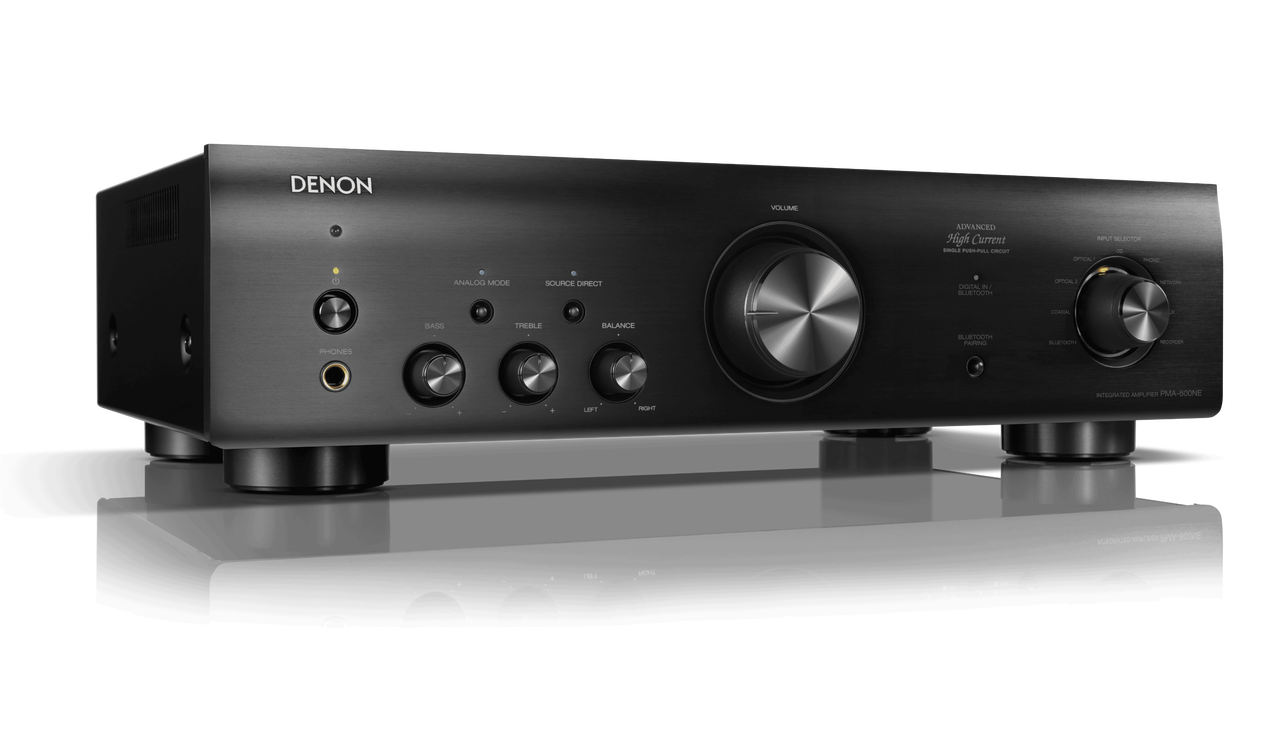

The Denon PMA-600NE integrated amplifier features Bluetooth, digital inputs & built-in phono equalizer to enhance audio performance and connectivity.
It is intended to become the central amplification component in a compatible music or multi-room system, with the exact output, input and connection data retained below.
Denon publishes separate Features, Others, Inputs/Outputs data for this exact model. Those model-level details are retained in the technical table for system matching and installation planning.
For official product information and current support resources, visit the Denon PMA-600NE product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Dedicated amplification | Provides the control and speaker drive at the centre of a considered two-channel or multi-room system. |
| Source-system integration | Published input and network facilities support connection to the relevant music sources. |
| System expansion | Designed to sit within a wider Denon or HEOS audio installation where applicable. |
| Wireless playback | Includes the manufacturer-published Bluetooth capability for compatible devices. |
| DETAIL | VALUE |
| Features | |
| Channels | 2 |
| Digital in: USB-B / optical / coaxial / USB-A | No / 2 / 1 / No |
| Sample Rate digital In | 192 kHz / 24-bit |
| DAC chip | PCM5141 |
| Bluetooth / aptX / NFC | Yes / No / No |
| Analogue Mode | Yes |
| Advanced HC-TR single push pull circuit | Yes |
| Wide range amplifier | Yes |
| High current dynamic power supply | Yes |
| Power amp discrete construction | Yes |
| Micro processor auto off | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Others | |
| Shottky diodes | Yes |
| Solid Heat Sinks | Yes |
| Source Direct | Yes |
| Inputs/Outputs | |
| Audio Inputs | 5 |
| Digital in: USB-B / optical / coaxial / USB-A | No / 2 / 1 / No |
| Phono Input: MM / MC | Yes / No |
| Audio Outputs | 1 |
| Pre-out / Main-in | subwoofer / No |
| Gold plated Cinch | Yes |
| Number of terminals | 2 |
| Remote Control Bus in / out | Yes |
| HEOS Link compatibility: IR / IP | Yes / No |
| Headphone Out | Yes |
| Specifications | |
| Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) | 45 W |
| Output power 4 Ohm (1 kHz, T.H.D. 0.7%) | 70 W |
| Total Harmonic Distortion | 0.02% |
| Input Sensitivity: MM | 2.5 mV / 47 kohm |
| Signal to Noise Ratio: MM/MC | 84 dB / No |
| Input Sensitivity: High level | 110 mV / 30 kohms |
| Signal to Noise Ratio: High level | 105dB |
| Treble Control | ± 8 dB at 10 kHz |
| Bass Control | ± 8 dB at 100 Hz |
| General | |
| Available colors: Black / Premium Silver | Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption in W | 185 |
| Standby Consumption in W | 0.3 |
| Auto Power Off | Yes |
| Remote Control | RC-1234 |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 434 x 308 x 121 |
| Weight in kg | 6.8 |
| Carton Maximum Dimensions (W x D x H) in mm | 520 x 370 x 207 |
| Carton Weight (inc. product) in kg | 8.1 |
