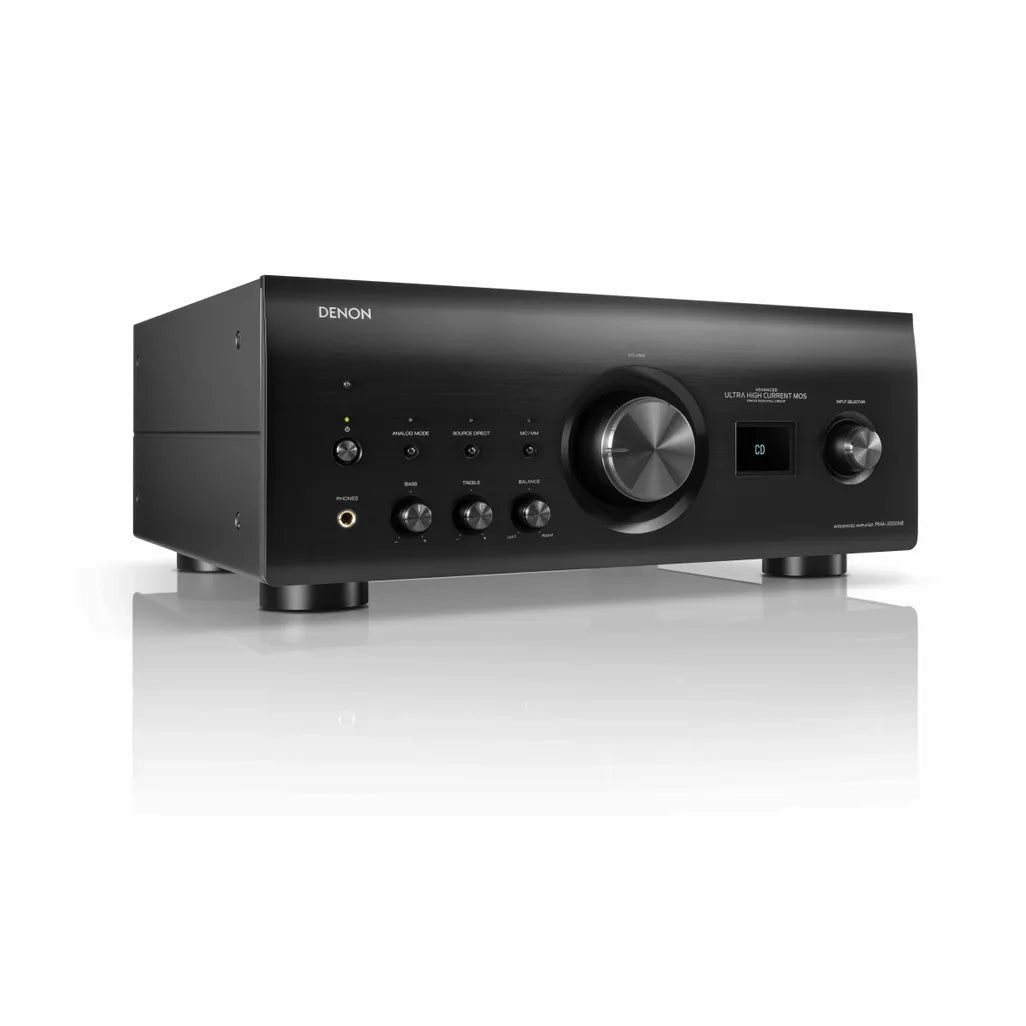

The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.
It is intended to become the central amplification component in a compatible music or multi-room system, with the exact output, input and connection data retained below.
Denon publishes separate General, Specifications, Audio Features data for this exact model. Those model-level details are retained in the technical table for system matching and installation planning.
For official product information and current support resources, visit the Denon PMA-3000NE product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Dedicated amplification | Provides the control and speaker drive at the centre of a considered two-channel or multi-room system. |
| Source-system integration | Published input and network facilities support connection to the relevant music sources. |
| System expansion | Designed to sit within a wider Denon or HEOS audio installation where applicable. |
| DETAIL | VALUE |
| General | |
| Unit (W × H × D) | 434 × 182 × 443 mm |
| Net Weight | 24.6 kg / 54.2 lbs |
| Panel Cover | Silver, Black |
| Specifications | |
| Rated Output Power | 80W + 80W (8 ohm,20 Hz-20 kHz,THD 0.07%) 160W + 160W (4 ohm, 1 kHz, THD 0.7%) |
| Total Harmonic distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 μV / 100 ohm |
| Input Sensitivity:CD/LINE/RECORDER | 135 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 1.0V / 15 kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): 89 dB PHONO (MC): 74 dB CD: 107 dB |
| Power Consumption | 400W |
| Power Consumption at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Audio Features | |
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Preamplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| DAC Circuit | ES9018K2M × 4 |
| Digital Processing | Ultra AL32 Processing |
| DAC Master Clock Design | Yes |
| Asyncronous mode (for USB-B input) | Yes |
| Connectivity | |
| Phono Input | Yes (MM / MC) *default = MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER) |
| Optical input / output (Maximum Support) | 3 / 0 (192 kHz/24-bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192 kHz/24-bit) |
| Speaker Terminal | AVR-A1H type Gold Plated w/Cover |
| Headphone Output | 1 (Turns off the speaker automatically when headphone is inserted) |
| Remote Control | Yes |
| Remote Control Bus Terminal | Yes (mini) |
| Wi-Fi | No |
| HEOS | No |
| USB B (USB DAC) | 1 (Rear) |
| PCM Sample Rate / Resolution | ~384 kHz/32-bit |
| DSD Audio Streaming | ~11.2MHz |
