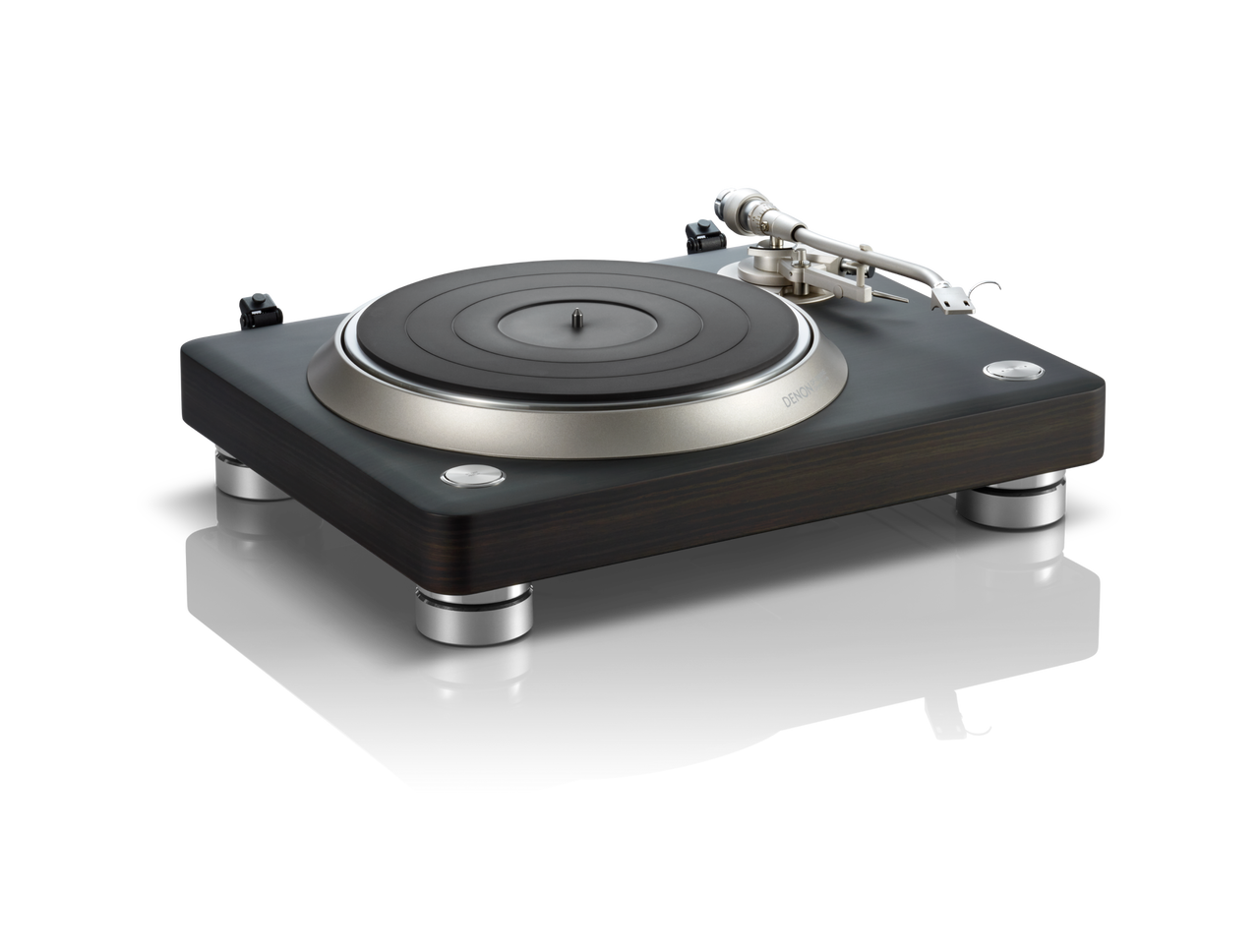

This is the flagship premium direct drive turntable from Denon®. Solid construction and S-shaped tonearm deliver detailed, resonance-free music. And the dark ebony natural wood veneer makes it a beautiful addition to your space.
Pair it with compatible amplification and phono connection equipment, using the listed technical data to plan the analogue signal path correctly.
Denon publishes separate Technical Information, General data for this exact model. Those model-level details are retained in the technical table for system matching and installation planning.
For official product information and current support resources, visit the Denon DP-3000NE product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Vinyl-focused listening | Provides a dedicated record-playback source for a compatible hi-fi system. |
| System connection | The published output and cartridge details help match it to the rest of the audio chain. |
| Purposeful playback design | Built around the manufacturer's specified drive, tonearm and physical configuration. |
| DETAIL | VALUE |
| Technical Information | |
| Drive System | Direct |
| Motor | 16-pole, 12-coil, brushless motor |
| Control method | PWM Vector |
| Platter | Aluminum diecast (305mm) |
| Platter inertia | 382 kg/CM^2 |
| Wow Flatter | less than 0.06% JIS |
| Speed tolerance | less than ± 0.3% |
| Rumble (S/N ratio) | Over 70dB |
| Bearing Type | Miniature Steel ball bearing |
| Tone Arm | Static Balanced S-Shaped |
| Arm length | 244 mm |
| Overhang | 14 mm |
| Offset angle | 20.5 ° |
| Tracking error angle | 2.5° (Max.) |
| Suitable cartridge weight | 4 to 16g without sub weight 14 to 26g with sub weight |
| Stylus force adjustment | 0 - 2.5g /rotation |
| High adjustment range | 9mm |
| Anti-skating adjustment | 0-3g |
| Headshell material | Aluminum |
| Sensitivity (Horizontal) | 30mg |
| Sensitivity (Vertical) | 30mg |
| Operation | Manual |
| Speed | 33 1/3 / 45 / 78 rpm |
| Control | Start / Stop |
| General | |
| Colors | Dark ebony |
| Dimensions | 500 x 394 x 185mm (W x D x H) |
| Weight | 18.5 kg |
| Power Supply | AC 100-240V, 50/60Hz |
| Power consumption | <4W |
| Stdby Power consumption | Less than 0.3W |
| Carton maximum Dimensions | 615 x 515 x 335 mm (W x D x H) |
| Carton Weight | 24.0 kg |
| What's in the box | Platter mat, Dust cover, Power cable, RCA cable and ground cable, Headshell, Overhang gauge, Screw set for cartridge mount (10, 13, 18mm), 2 x Cartridge spacers (1 mm), 2 x Plastic Washer, Screw driver, Counter weight, Sub-counter weight, Denon EP adapter/weight |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
