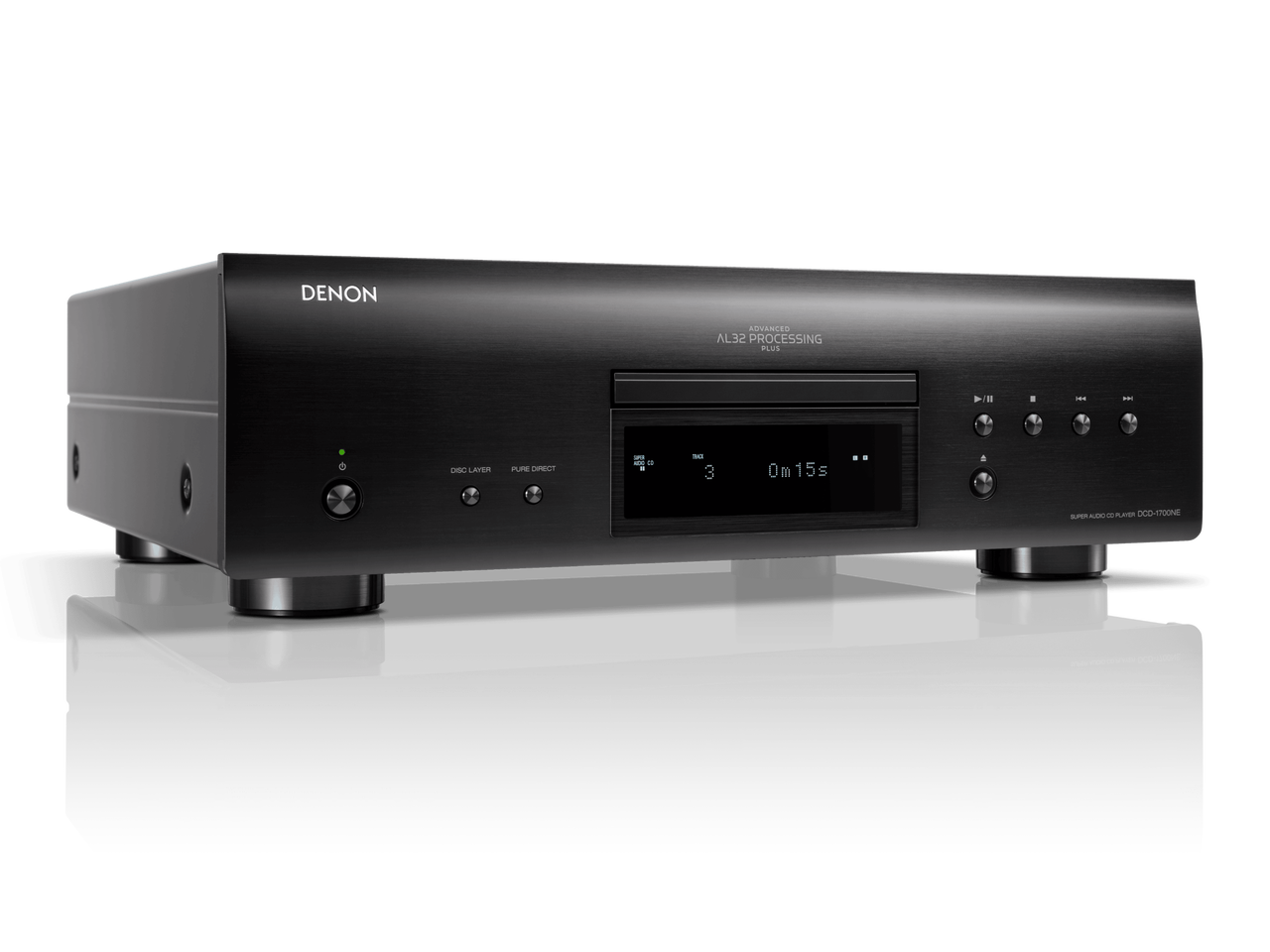

Immerse in accurate audio reproduction with Denon DCD-1700NE. Advanced technologies deliver fidelity and precision. Play CDs, SACDs, and more with signal purity.
Use the published model-specific technical data below to plan a compatible Denon audio or entertainment system.
Denon publishes separate General, Specifications, Digital Audio data for this exact model. Those model-level details are retained in the technical table for system matching and installation planning.
For official product information and current support resources, visit the Denon DCD-1700NE product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Dedicated audio role | Designed for its stated position in a considered Denon music or home-entertainment system. |
| System matching | Published connection and format details help match the product to compatible equipment. |
| Technical transparency | The model-specific manufacturer specifications are listed separately for installation planning. |
| DETAIL | VALUE |
| General | |
| Unit (W x H x D) | 434 x 135 x 384mm 17.09 x 5.31x 15.12 |
| Cabinet Size | 434 x 135 x 374 |
| Net weight | 9.0kg (19.84 lbs) |
| Packaging Dimensions (W x H x D mm) | 543 x 250 x 515 |
| Packaging gross weight | 11.7kg (25.79 lbs) |
| Power Consumption | 24W |
| at Standby | 0.1W |
| Front (Center) Panel | Aluminum |
| Function button | Aluminum |
| Open / Close button | Aluminum |
| Power button | Aluminum |
| Specifications | |
| Frequency Response | SACD:2Hz - 50kHz (-3dB) CD:2Hz - 20kHz (-0.5dB) |
| Harmonic distortion | SACD: 0.0010% CD: 0.0016% |
| Signal-to-Noise Ratio | SACD: 119dB CD: 117dB |
| Dynamic Range | SACD: 112dB CD: 101dB |
| Line Output Level | 2.0Vrms (10kohm) |
| Digital Audio | |
| DAC Circuit | TI Advanced Current Segment PCM1795(192k/32bit) ×1 |
| Digital Filter | Fixed |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Master Clock Design (Not Support Network Playback) | Yes |
| Disc | |
| Mechanism | TD-505 FOR DM |
| Disc Type | SACD/CD/CD-R/CD-RW DVD-R/+R/-RW/+RW |
| SACD | Yes (Stereo Layer/Multi-D/M) |
| Super Audio CD Text | Yes |
| MP3 / WMA / AAC | Yes / Yes / Yes |
| WAV | Yes (~48kHz/24bit) |
| FLAC | Yes (~48kHz/24bit) |
| ALAC | Yes (~48kHz/24bit) |
| AIFF | Yes (~48kHz/24bit) |
| MP3 / WMA / AAC | Yes / Yes / Yes |
| WAV | Yes (~192kHz/24bit) |
| FLAC | Yes (~192kHz/24bit) |
| ALAC | Yes (~96kHz/24bit) |
| AIFF | Yes (~196kHz/24bit) |
| DSD (DIFF / DSF | Yes (~5.6MHz) |
| Firmware Update | Yes (FE/BE, MCU) |
| Inputs Outputs | |
| Fixed Analog Output (RCA) | Cinch x 1 (Gold Plated) |
| Optical input / output (Maximum Support) | 0 / 1 |
| Coaxial input / output (Maximum Support) | 0 / 1 |
| Controls | |
| Remote Controller | System Remote (Amp and CD Player Control) |
| On-Product Buttons | Power Disc Layer Pure Direct Play/Pause Stop Fwd/Rev Open/Close |
| LED | POWER: 1 Green |
| Front Panel Display | Single Line |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| Other | |
| Pure Direct Mode | Yes |
| Last Function Memory | Yes |
| Remote Control Bus Terminal | Yes |
| Remote Control | Yes (controllable PMA-1700NE) |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
| Other | Stereo RCA Cable x1 |
| Timer Play (Need external audio timer) | Yes |
| Auto Standby Mode | Yes |
