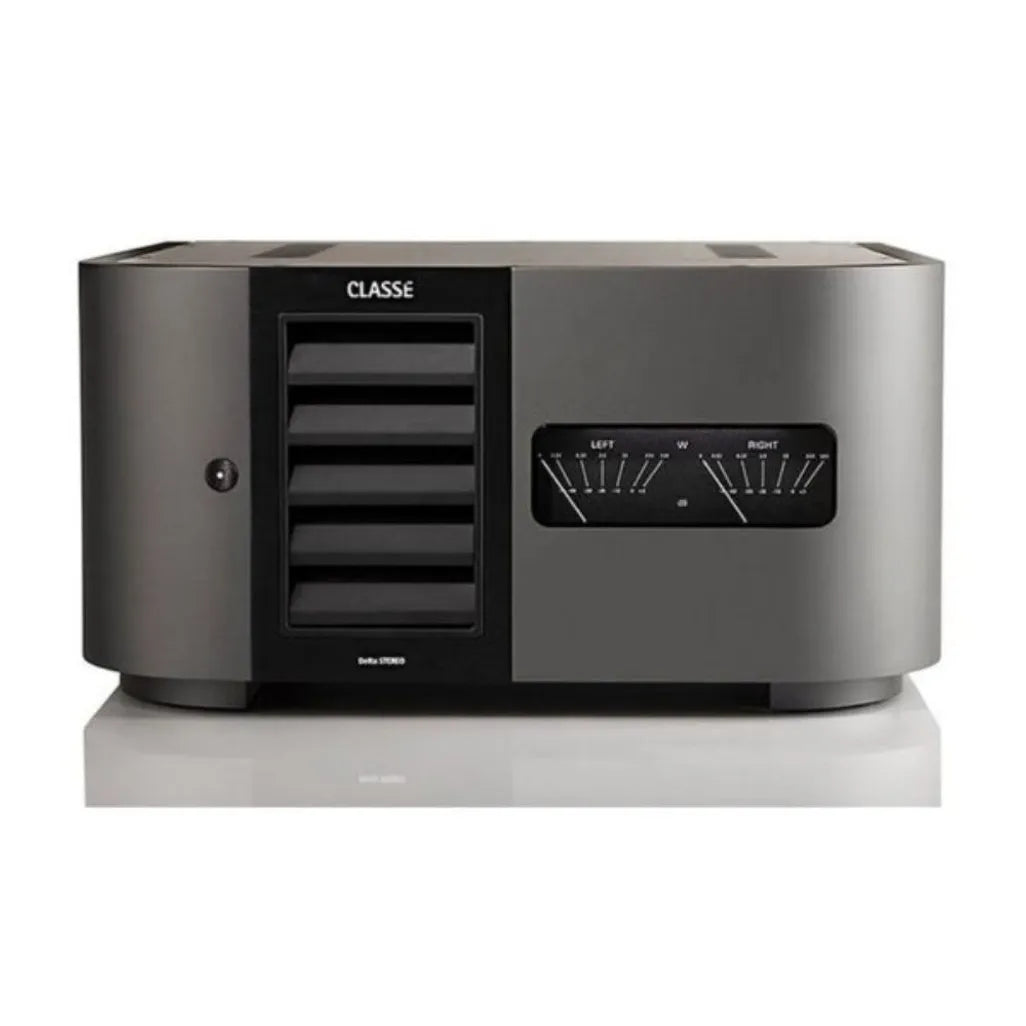

Classe Delta Power Amplifier

R 360,000.00 ZAR

POWER AMPLIFIER

The Delta STEREO distills all of Classé's innovation and knowledge into a compact high-performance stereo amplifier.

In situations where dual mono amplifiers can't be accommodated, Delta STEREO offers uncompromizing performance in a single component.

Frequency Response
(-3dB, 50Ω source impedance)1Hz – 650kHz
Continuous Output Power
(at 1kHz, 0.1% THD+N)250W / 8Ω (12.5W in pure Class-A operation) 500W / 4Ω (with AC line held constant)
Harmonic Distortion
(measurement bandwidth: 500kHz, 25Vrms in 4Ω or 8 Ω)<0.0016% at 1kHz
<0.002% at 10kHz
<0.003% at 20kHz
Harmonic Distortion
(measurement bandwidth: 90kHz, 25Vrms in 4Ω or 8 Ω)<0.0007% at 1kHz
<0.001% at 10kHz
<0.0025% at 20kHz
Peak Output Voltage
(nominal AC line)129Vp-p into 8Ω
138Vp-p no load
Input Impedance
(at 1kHz, BAL / SE)82kΩ
Voltage Gain
(at 1kHz, BAL / SE)29dB
Intermodulation Distortion
(SMPTE 4:1) (8Ω or 4Ω, BAL / SE)<0.0018%Intermodulation
Distortion
(CCIF) (8Ω or 4Ω, BAL / SE)<0.004%
Signal-to-Noise Ratio
(A wtd in parenthesis) (22kHz BW)118dB (120dBA)
Crosstalk
(one channel driven to 250W / 8Ω)124dB (100Hz), 107dB (1kHz),
90dB (10kHz)Slew Rate75V / μs
Output Impedance
0.009Ω (100Hz), 0.009Ω (1kHz),0.012Ω (10kHz)
Damping Factor
(at 1kHz, ref 8Ω)850

Talk to a specialist

Enquire now

Exclusive items are quoted and confirmed with our team. Leave your details and we will respond with pricing, availability, and the best matching options.

Enquiring about Classe Delta Power AmplifierSKU: DELTASTEREOUKEC

Full name Email

Phone / WhatsApp Suburb / city

When are you hoping to install? What would you like to know?

We reply within one working day. No automated newsletters.
