Black / 25 mm

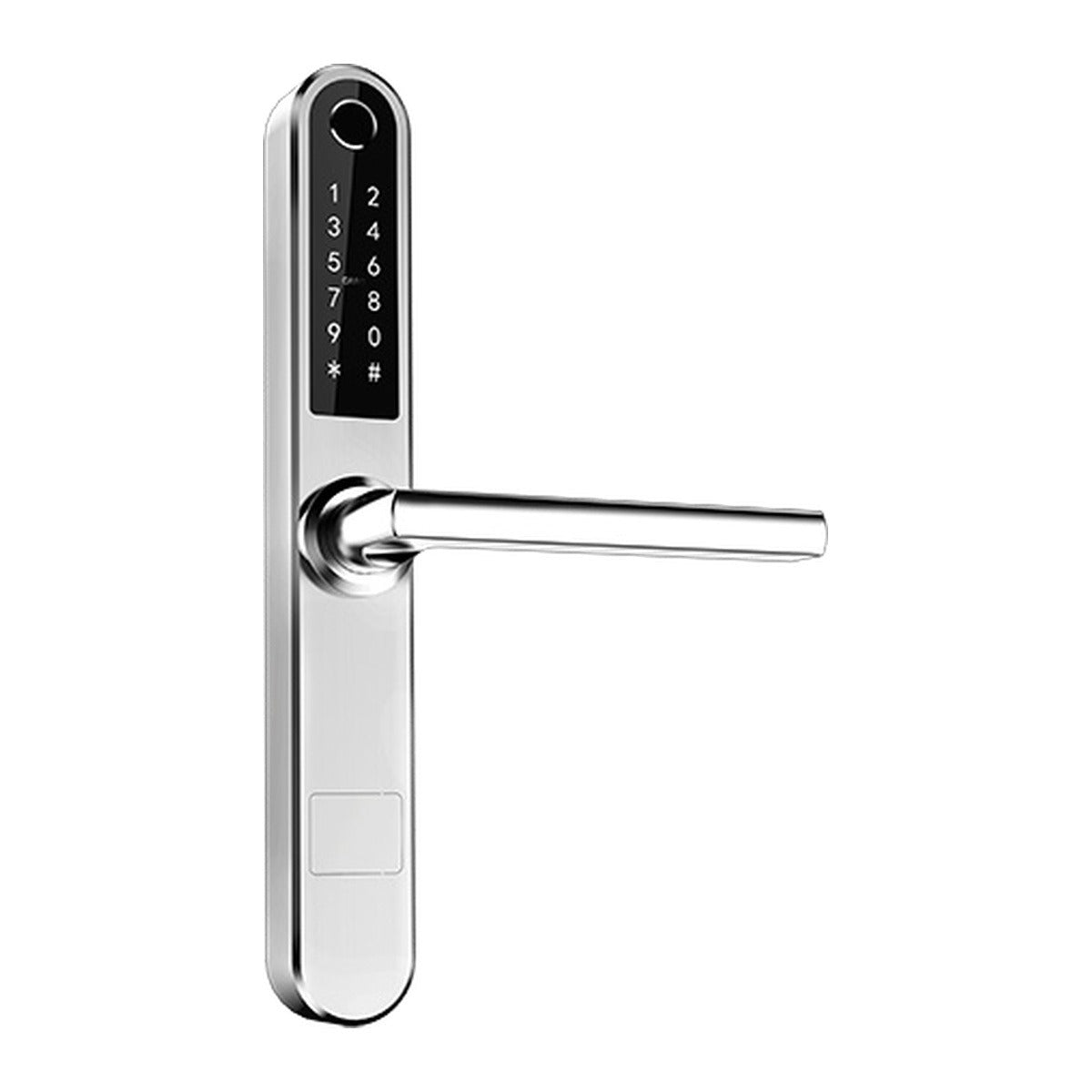

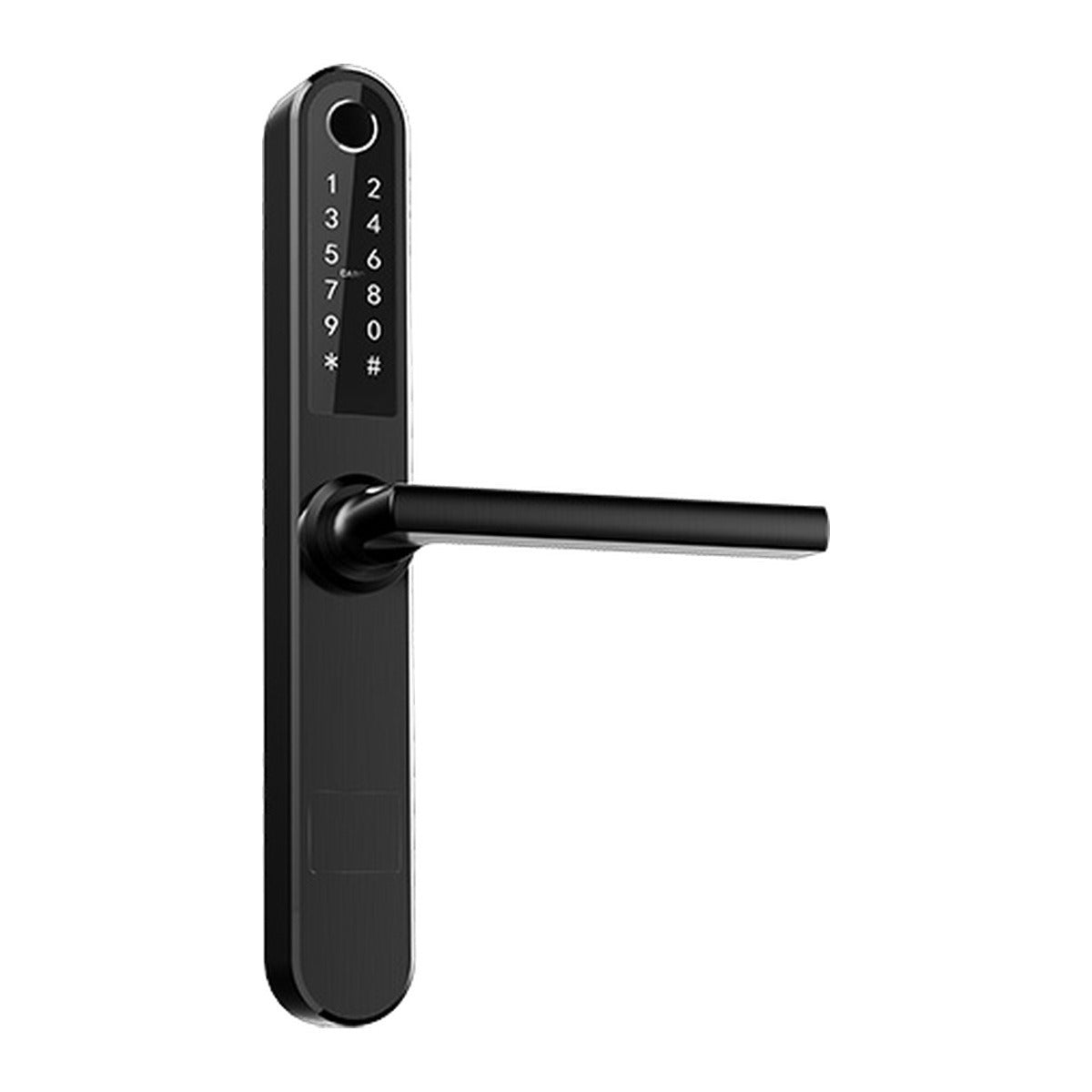

The long, narrow escutcheon of the BBLS31B gives apartments, offices and managed rooms a complete smart-lock faceplate without making the door look industrial. Black and silver versions cover the two finishes most often used with contemporary lever hardware.
Residents or staff can have separate credentials instead of sharing one code. The access record remains available in TTLock, which makes the handle easier to oversee when several people use the same entrance.
Six mortice sizes allow the listing to cover narrow aluminium-style preparations as well as deeper timber-door backsets. The selected mortice is included in the variant cost and must match the door before installation begins.
Important: Please confirm the correct mortice-lock backset before ordering. Mortice locks cannot be exchanged or returned once ordered. This smart handle is supplied without an 80 mm barrel/cylinder.
Measure from the front edge of the door to the centreline of the handle spindle or cross-bore hole. Use that millimetre dimension to choose 25 mm, 35 mm, 40 mm, 50 mm, 60 mm or 70 mm. The diagram illustrates the same backset measurement in inches.
| ITEM | DESCRIPTION |
| Main Features | |
| Flexible entry | Unlock by fingerprint, PIN, RFID card, mobile app, e-key or mechanical key. |
| Remote access option | Add a compatible Wi-Fi gateway for remote control and voice commands through Google Assistant or Amazon Alexa. |
| Activity records | TTLock software records user activations for easier oversight of a shared entrance. |
| Slim escutcheon | The narrow backplate keeps the keypad and lever aligned in one vertical assembly. |
| Emergency access | USB emergency power and a mechanical key provide two fallback access methods. |
| DETAIL | VALUE |
| Product Specifications | |
| Fingerprint users | 200 fingerprint profiles |
| PIN-code users | 150 PIN codes |
| RFID security-tag users | 200 RFID tags |
| E-key users | Unlimited e-keys |
| Ingress protection | IP55 |
| Handle material | 304 stainless steel |
| Durability testing | 250,000 cycles |
| Salt-spray testing | 200 hours |
| Fire rating | 1 hour |
| Door thickness | Adjustable mounting |
| Finish options | Matt Black or Satin Silver |
| Compatible mortice backsets | 25 mm, 35 mm, 40 mm, 50 mm, 60 mm or 70 mm |
| Included mortice lock | The backset selected in the product variant |
