Black / 25 mm

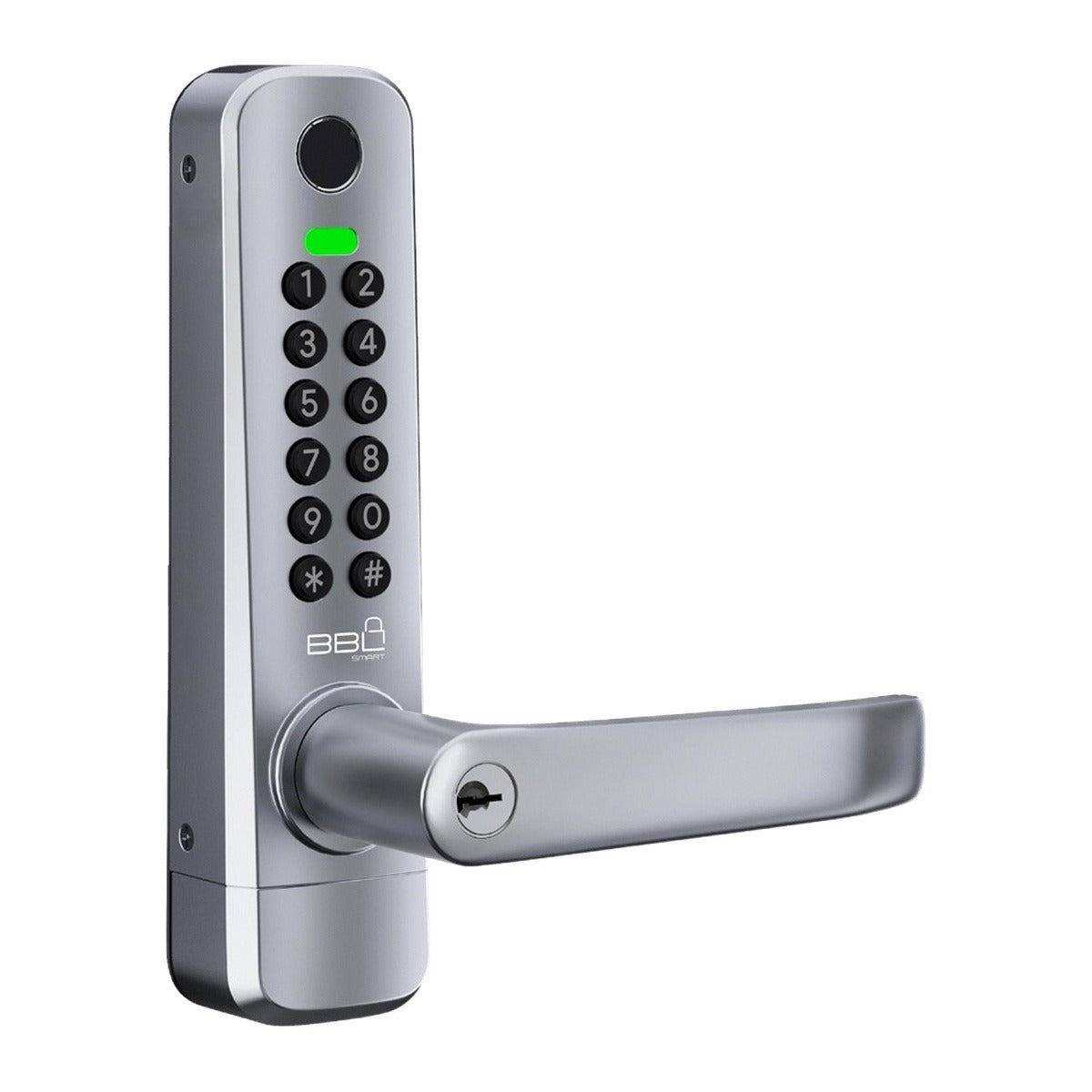

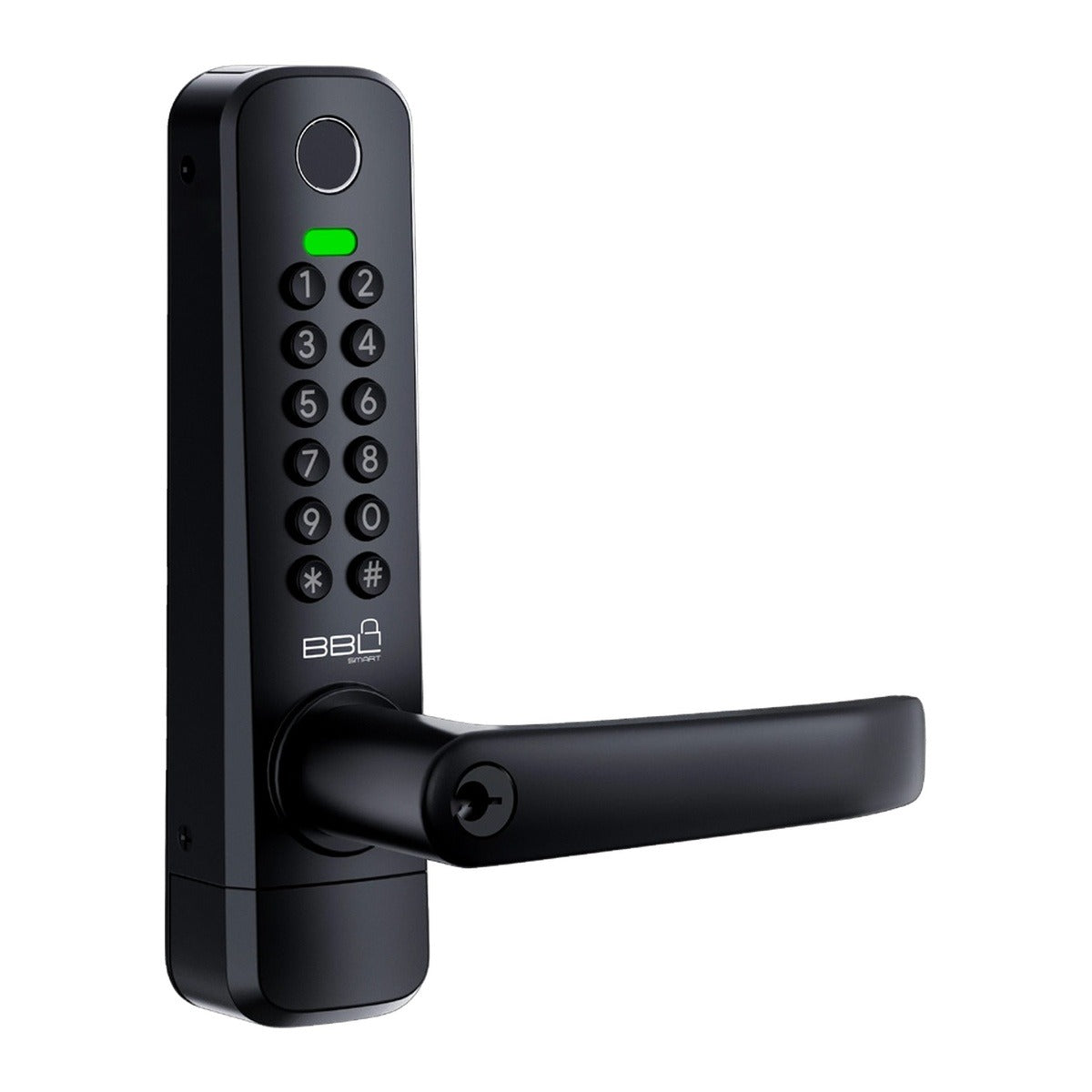

Busy entrances can be hard on flat touch panels, especially where users arrive with wet hands or work gloves. The BBLS06B-D uses a raised keypad layout with a lever handle, giving the entrance a more tactile control surface in black or silver.
Fingerprint, code, card and app credentials can be assigned to different users, with mechanical-key backup still available. TTLock records activations for sites where access needs to be reviewed after the fact.
The broad backset range makes this model suitable for several door and frame preparations. Each variant combines the handle colour with the selected 25 mm through 70 mm mortice lock.
Important: Please confirm the correct mortice-lock backset before ordering. Mortice locks cannot be exchanged or returned once ordered. This smart handle is supplied without an 80 mm barrel/cylinder.
Measure horizontally from the front edge of the door to the centreline of the handle spindle or cross-bore hole. Choose 25 mm, 35 mm, 40 mm, 50 mm, 60 mm or 70 mm to match that result. The diagram shows the same measurement principle in inches.
| ITEM | DESCRIPTION |
| Main Features | |
| Flexible entry | Unlock by fingerprint, PIN, RFID card, mobile app, e-key or mechanical key. |
| Remote access option | Add a compatible Wi-Fi gateway for remote control and voice commands through Google Assistant or Amazon Alexa. |
| Activity records | TTLock software records user activations for easier oversight of a shared entrance. |
| Double-keypad handle format | Raised number keys provide a tactile alternative to a completely flat touch panel. |
| Emergency access | USB emergency power and a mechanical key provide two fallback access methods. |
| DETAIL | VALUE |
| Product Specifications | |
| Fingerprint users | 200 fingerprint profiles |
| PIN-code users | 150 PIN codes |
| RFID security-tag users | 200 RFID tags |
| E-key users | Unlimited e-keys |
| Ingress protection | IP68 |
| Fire rating | 1 hour |
| Door thickness | Adjustable mounting |
| Finish options | Matt Black or Satin Silver |
| Compatible mortice backsets | 25 mm, 35 mm, 40 mm, 50 mm, 60 mm or 70 mm |
| Included mortice lock | The backset selected in the product variant |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
