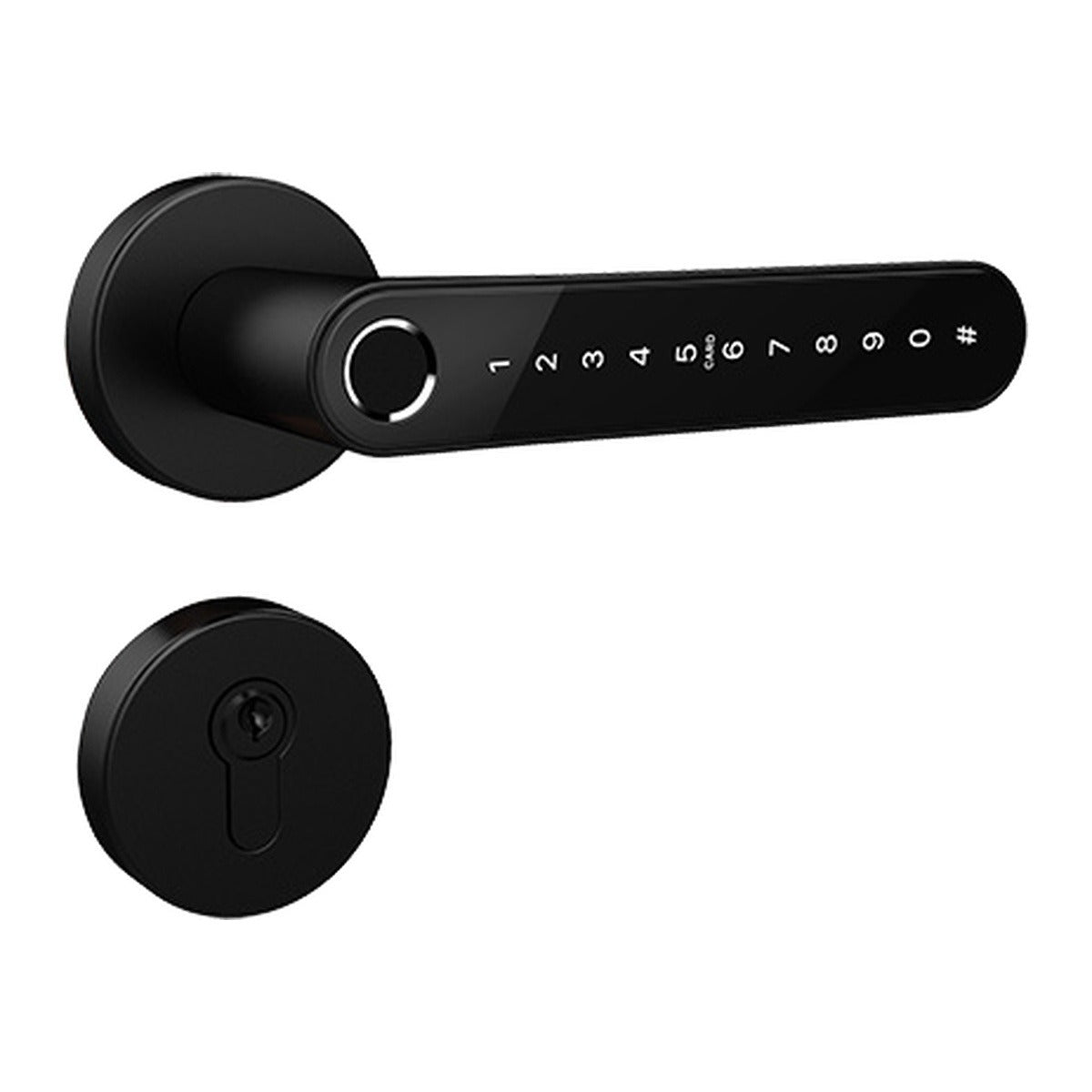

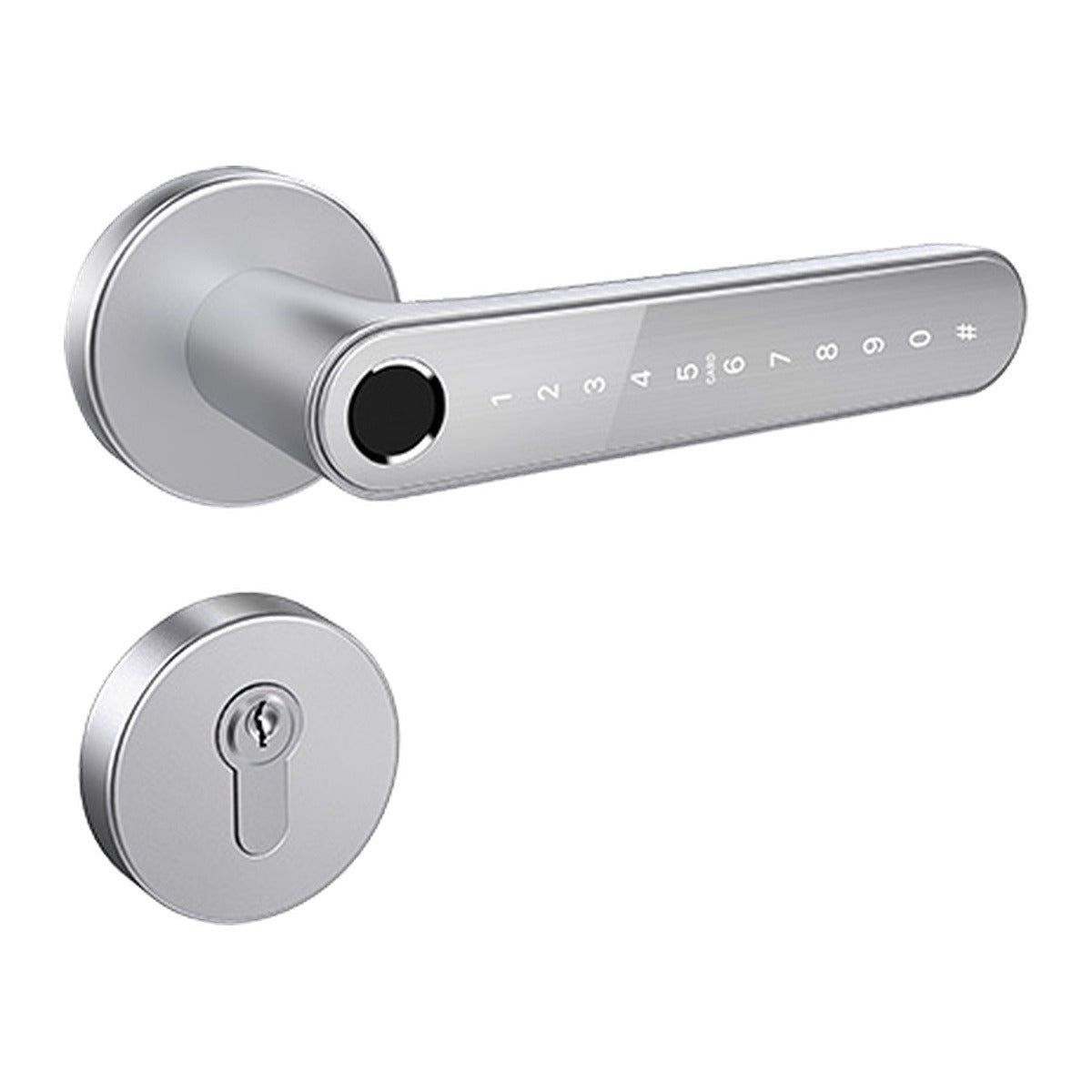

For a new door or a full lock replacement, the BBLN33B packages the smart lever and mortice as one matched lockset. The round roses keep the installation compact, while black and silver finishes allow the set to follow the rest of the door hardware.
The handle gives households, staff and short-stay guests their own credentials without relying on one shared physical key. Access events remain available in TTLock for routine oversight of the entrance.
Select 40 mm, 50 mm or 60 mm to receive the corresponding mortice in 304 stainless steel. The supplier price already includes that lock body, so no second mortice cost has been added to these variants.
Important: Please confirm the correct mortice-lock backset before ordering. The included mortice lock cannot be exchanged or returned once ordered. This smart handle lockset is supplied without the required 80 mm Euro-profile cylinder.
Measure from the front edge of the door to the centreline of the handle spindle or cross-bore hole. Select 40 mm, 50 mm or 60 mm to match that dimension. The diagram shows the same backset measurement principle in inches.
| ITEM | DESCRIPTION |
| Main Features | |
| Flexible entry | Unlock by fingerprint, PIN, RFID card, mobile app, e-key or mechanical key. |
| Remote access option | Add a compatible Wi-Fi gateway for remote control and voice commands through Google Assistant or Amazon Alexa. |
| Activity records | TTLock software records user activations for easier oversight of a shared entrance. |
| Matched lockset package | The handle and selected mortice are supplied together for a complete new-door or replacement installation. |
| Emergency access | USB emergency power and a mechanical key provide two fallback access methods. |
| DETAIL | VALUE |
| Product Specifications | |
| Fingerprint users | 200 fingerprint profiles |
| PIN-code users | 150 PIN codes |
| RFID security-tag users | 200 RFID tags |
| E-key users | Unlimited e-keys |
| Ingress protection | IP55 |
| Durability testing | 250,000 cycles |
| Salt-spray testing | 200 hours |
| Fire rating | 1 hour |
| Door thickness | Adjustable mounting |
| Finish options | Matt Black or Satin Silver |
| Backset options | 40 mm, 50 mm or 60 mm |
| Included mortice lock | Selected lock body in 304 stainless steel |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
