Retrofitting a smart handle is simpler when a suitable mortice can stay in the door. The BBLN32B is made for that job, replacing the lever hardware while retaining most compatible lever and cylinder mortice locks.
The compact rose format is useful in occupied homes, offices and guest rooms where extensive door cutting would be disruptive. Users still receive individually managed access and an activation record through TTLock.
No new mortice lock is added to this product, so the variants are colour only. Confirm the existing spindle, cylinder and backset arrangement before ordering, and allow separately for any escutcheons the door requires.
Important: This retrofit handle does not include a mortice lock. Confirm the existing mortice, spindle and cylinder arrangement before ordering. Escutcheons and an 80 mm barrel/cylinder are not included.
Measure from the front edge of the door to the centreline of the existing handle spindle or cross-bore hole. Use the result to confirm the installed mortice geometry before ordering. The diagram illustrates the same backset principle in inches.
| ITEM | DESCRIPTION |
| Main Features | |
| Flexible entry | Unlock by fingerprint, PIN, RFID card, mobile app, e-key or mechanical key. |
| Remote access option | Add a compatible Wi-Fi gateway for remote control and voice commands through Google Assistant or Amazon Alexa. |
| Activity records | TTLock software records user activations for easier oversight of a shared entrance. |
| Retrofit approach | A suitable installed mortice can remain in place, reducing the amount of work required on the door. |
| Emergency access | USB emergency power and a mechanical key provide two fallback access methods. |
| DETAIL | VALUE |
| Product Specifications | |
| Fingerprint users | 200 fingerprint profiles |
| PIN-code users | 150 PIN codes |
| RFID security-tag users | 200 RFID tags |
| E-key users | Unlimited e-keys |
| Ingress protection | IP55 |
| Durability testing | 250,000 cycles |
| Salt-spray testing | 200 hours |
| Fire rating | 1 hour |

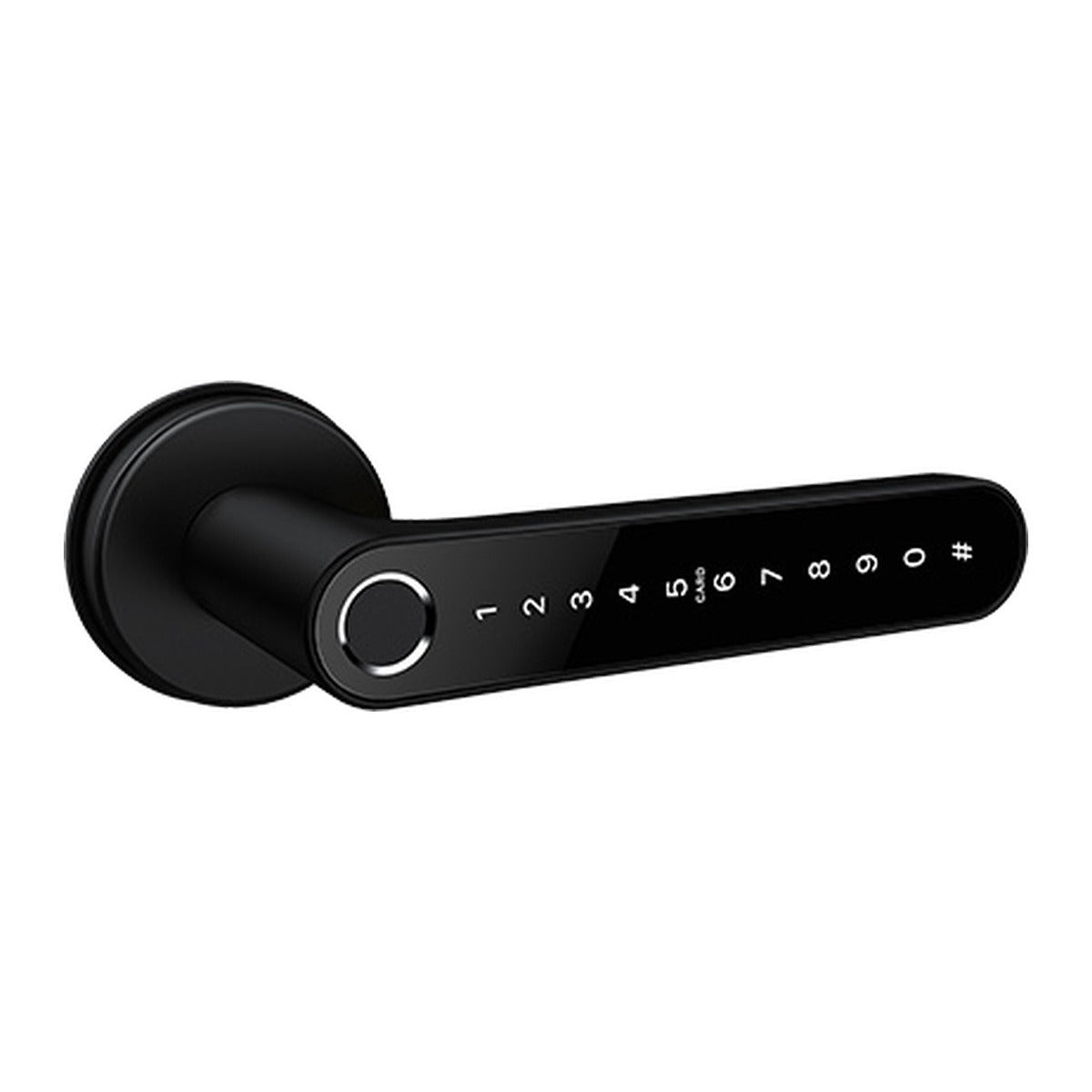

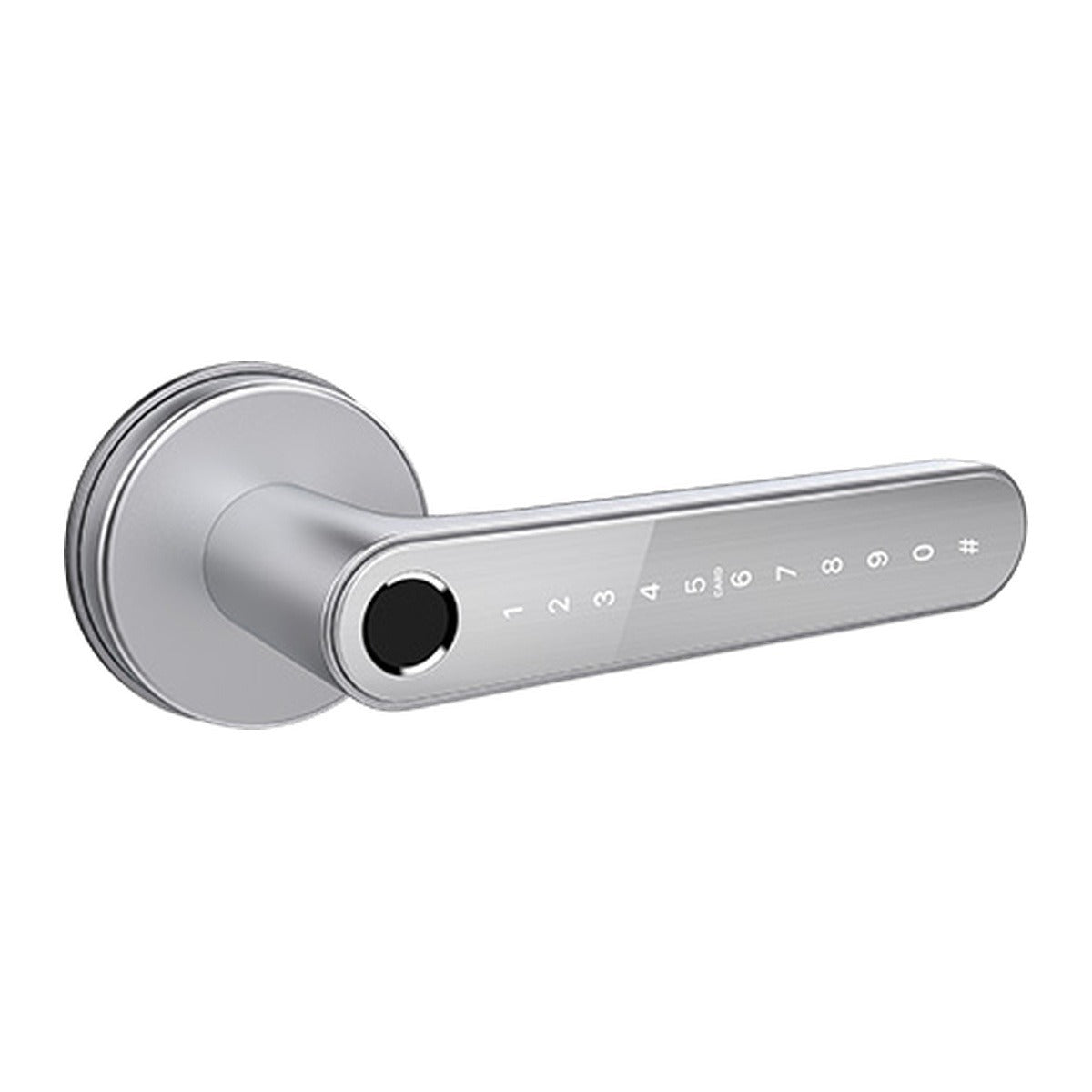

| Finish options | Matt Black or Satin Silver |
| Retrofit compatibility | Most lever and cylinder mortice locks |
| Supplied mortice lock | Not included; uses suitable existing hardware |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
