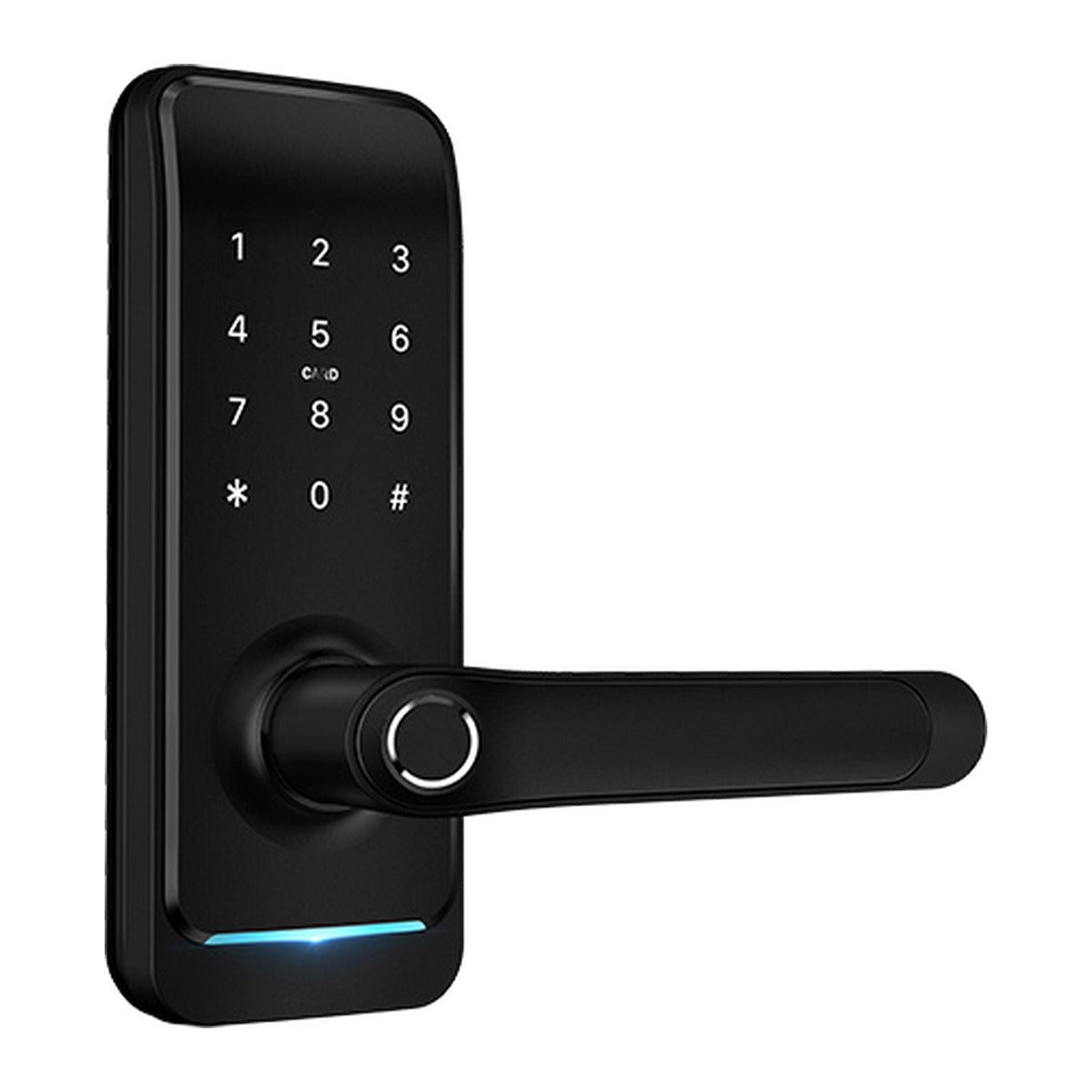

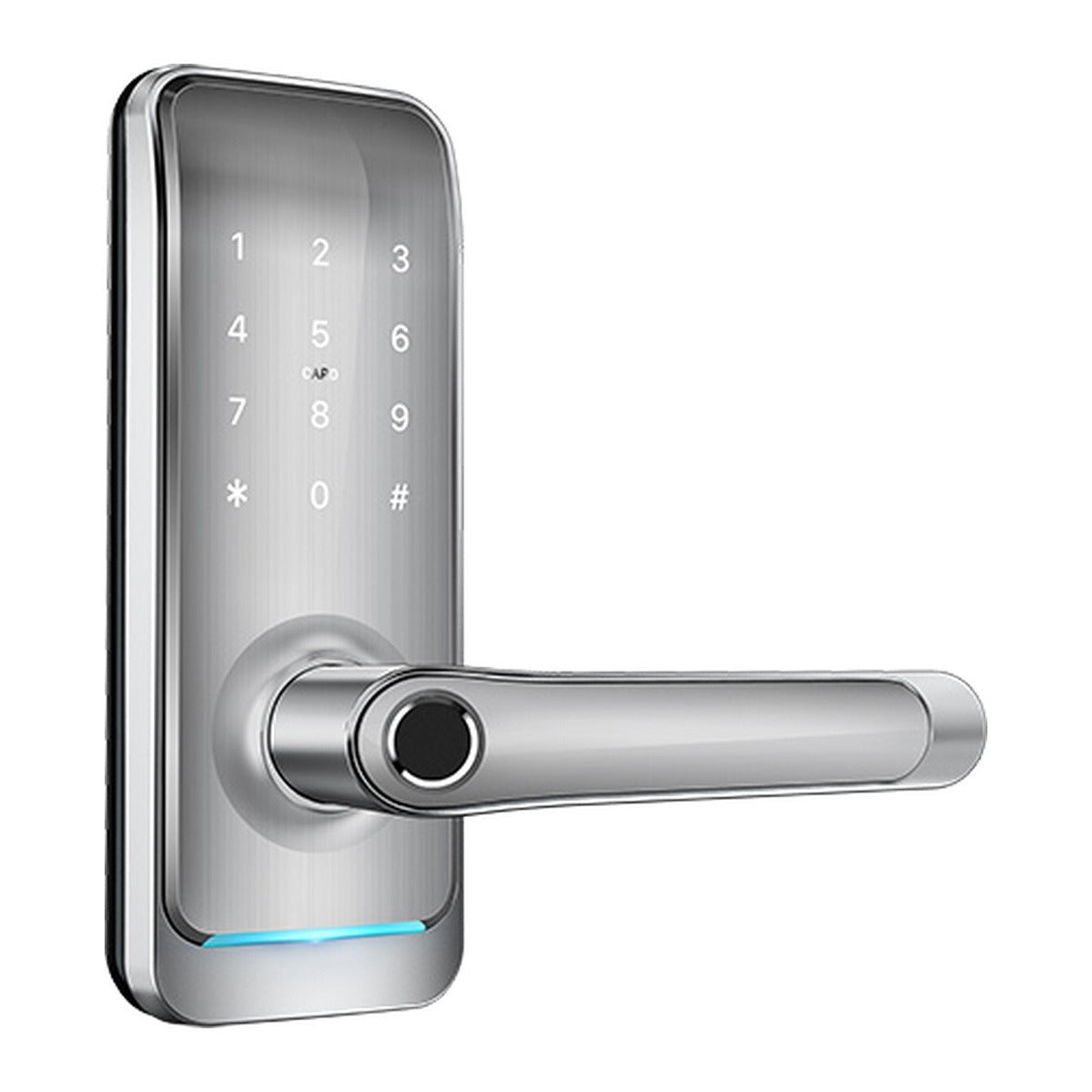

At a front entrance used by family, guests or staff, the BBLH15B keeps access control on the door instead of at reception. Its broad rectangular trim and lever format suit a full-size entrance lock, with black and silver finishes for different door hardware schemes.
Individual credentials make shared access easier to manage without circulating a large set of keys. TTLock records user activations, while remote control can be added when the site needs access administration away from the doorway.
This listing combines the handle with the selected 50 mm, 60 mm or 70 mm mortice lock. It suits a new installation or replacement where the door preparation can be measured before the hardware is ordered.
Important: Please confirm the correct mortice-lock backset before ordering. Mortice locks cannot be exchanged or returned once ordered. This smart handle is supplied without an 80 mm barrel/cylinder.
Measure horizontally from the front edge of the door, where the mortice faceplate sits, to the centreline of the handle spindle or cross-bore hole. Select 50 mm, 60 mm or 70 mm to match that measurement. The diagram shows the same measurement principle in inches.
| ITEM | DESCRIPTION |
| Main Features | |
| Flexible entry | Unlock by fingerprint, PIN, RFID card, mobile app, e-key or mechanical key. |
| Remote access option | Add a compatible Wi-Fi gateway for remote control and voice commands through Google Assistant or Amazon Alexa. |
| Activity records | TTLock software records user activations for easier oversight of a shared entrance. |
| Full-size entrance format | A lever handle and broad trim give the keypad a substantial fit on a main entrance door. |
| Emergency access | USB emergency power and a mechanical key provide two fallback access methods. |
| DETAIL | VALUE |
| Product Specifications | |
| Fingerprint users | 200 fingerprint profiles |
| PIN-code users | 150 PIN codes |
| RFID security-tag users | 200 RFID tags |
| E-key users | Unlimited e-keys |
| Ingress protection | IP55 |
| Durability testing | 250,000 cycles |
| Salt-spray testing | 200 hours |
| Fire rating | 1 hour |
| Door thickness | Adjustable mounting |
| Finish options | Matt Black or Satin Silver |
| Compatible mortice backsets | 50 mm, 60 mm or 70 mm |
| Included mortice lock | The backset selected in the product variant |
