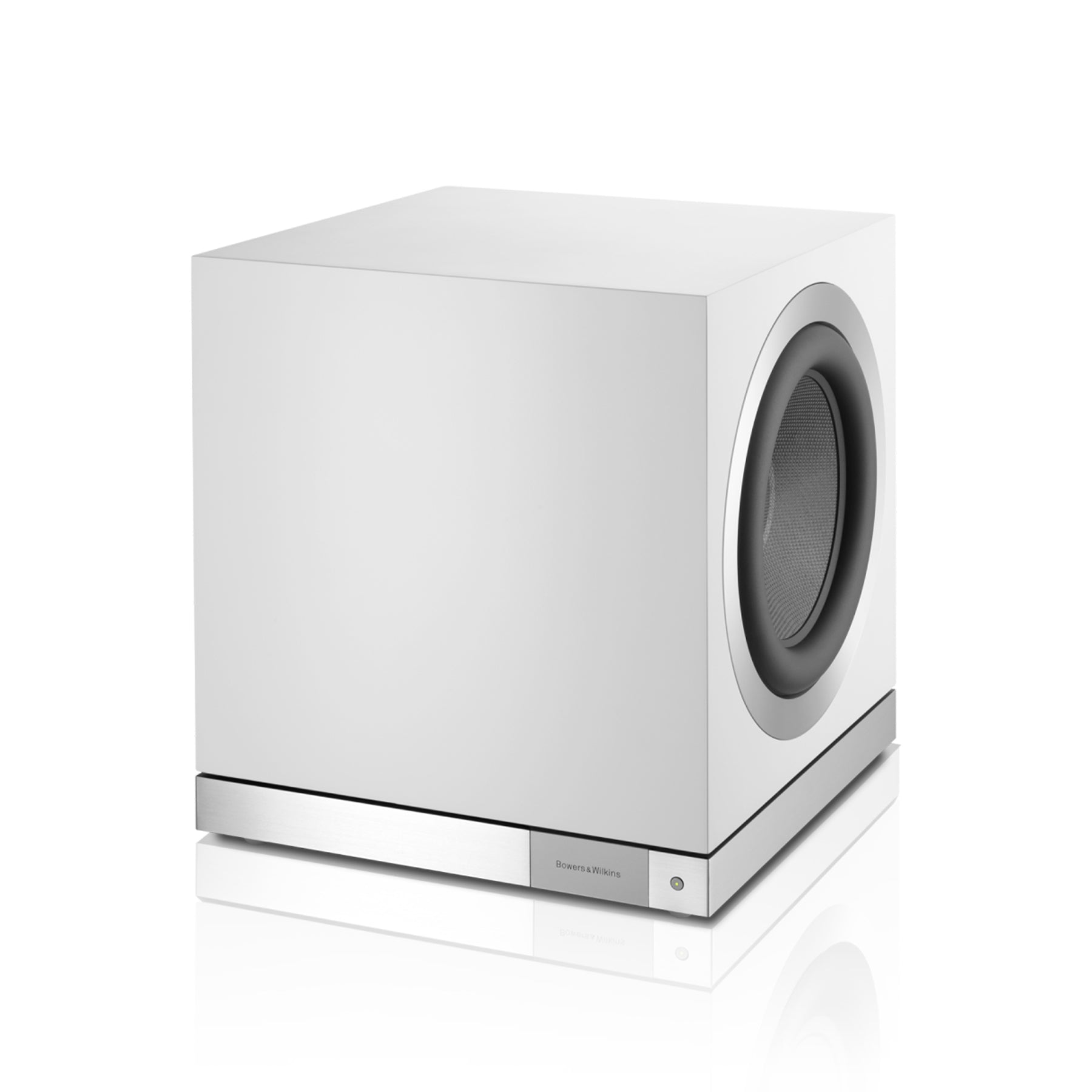

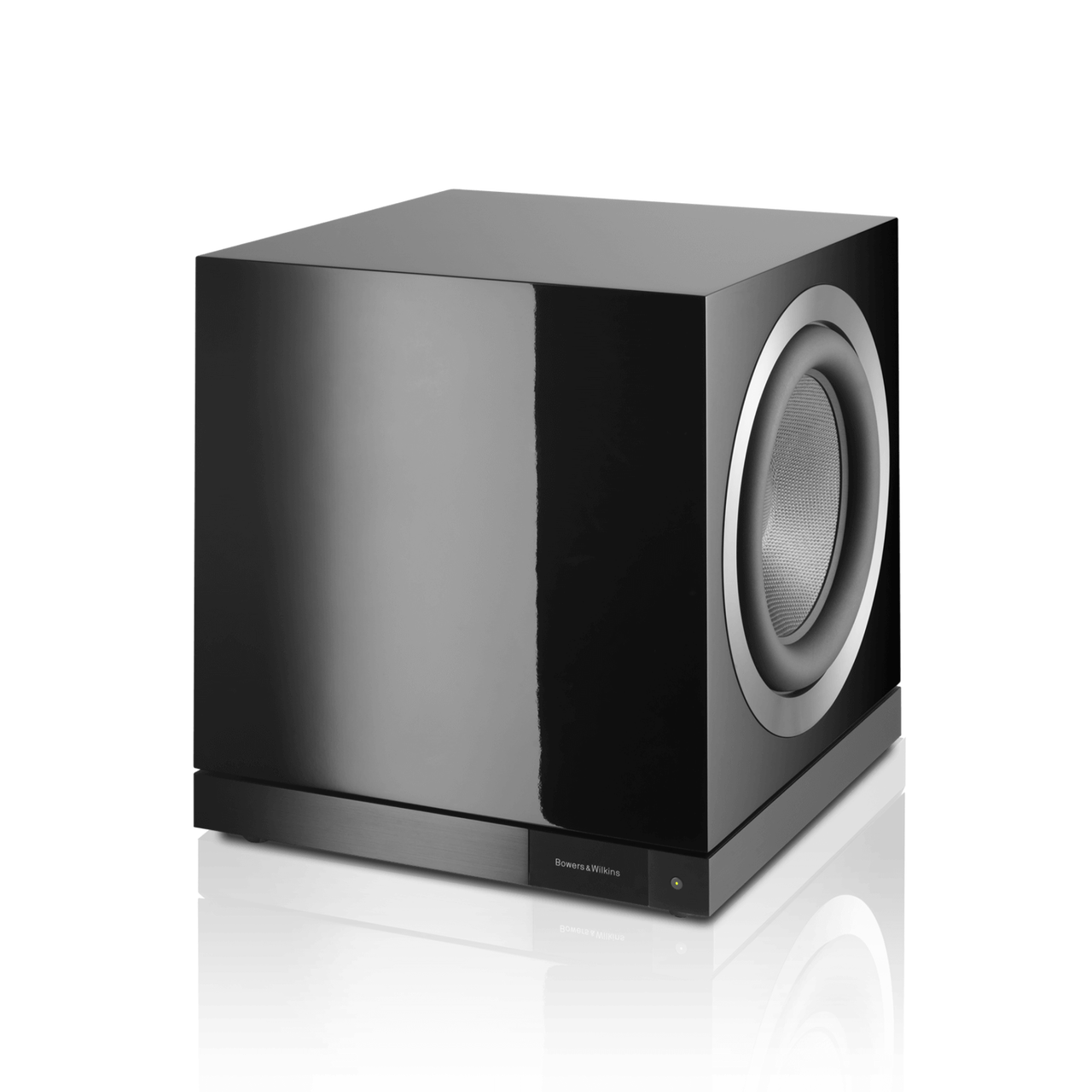

Bowers & Wilkins DB1D Subwoofer
DB1D is the largest and most powerful subwoofer in Bowers & Wilkins’ DB range. It is intended for systems where the bass needs to be deep, fast and controlled rather than simply loud.
Two opposed 12-inch Aerofoil drivers work with digital amplification, Dynamic EQ and room correction. The opposing layout helps reduce cabinet vibration, so more of the amplifier’s energy reaches the room as bass.
The DB Subwoofer app handles setup and tuning, making it easier to integrate DB1D with a high-end stereo or home cinema system.
| ITEM |
DESCRIPTION |
| Main Features |
| System role |
Adds dedicated low-frequency support to a hi-fi or home cinema system |
| Room integration |
Designed to be calibrated with the main speakers and listening room |
| Placement |
Use positioning and level adjustment to blend the bass into the system |
| DETAIL |
VALUE |
| Product Specifications |
| Drive units |
2 x 300mm (12 in) Aerofoil-cone drive units in a balanced configuration |
| Frequency response |
10Hz - 350 Hz -3dB (centered on level at 100Hz) |
| Frequency range- |
6dB at 8.5Hz - 500Hz |
| Max power output |
2000W |
| Inputs |
2 x XLR 2 x RCA 2 x 3.5mm 12V trigger RS-232 - 9-pin D connector |
