Description

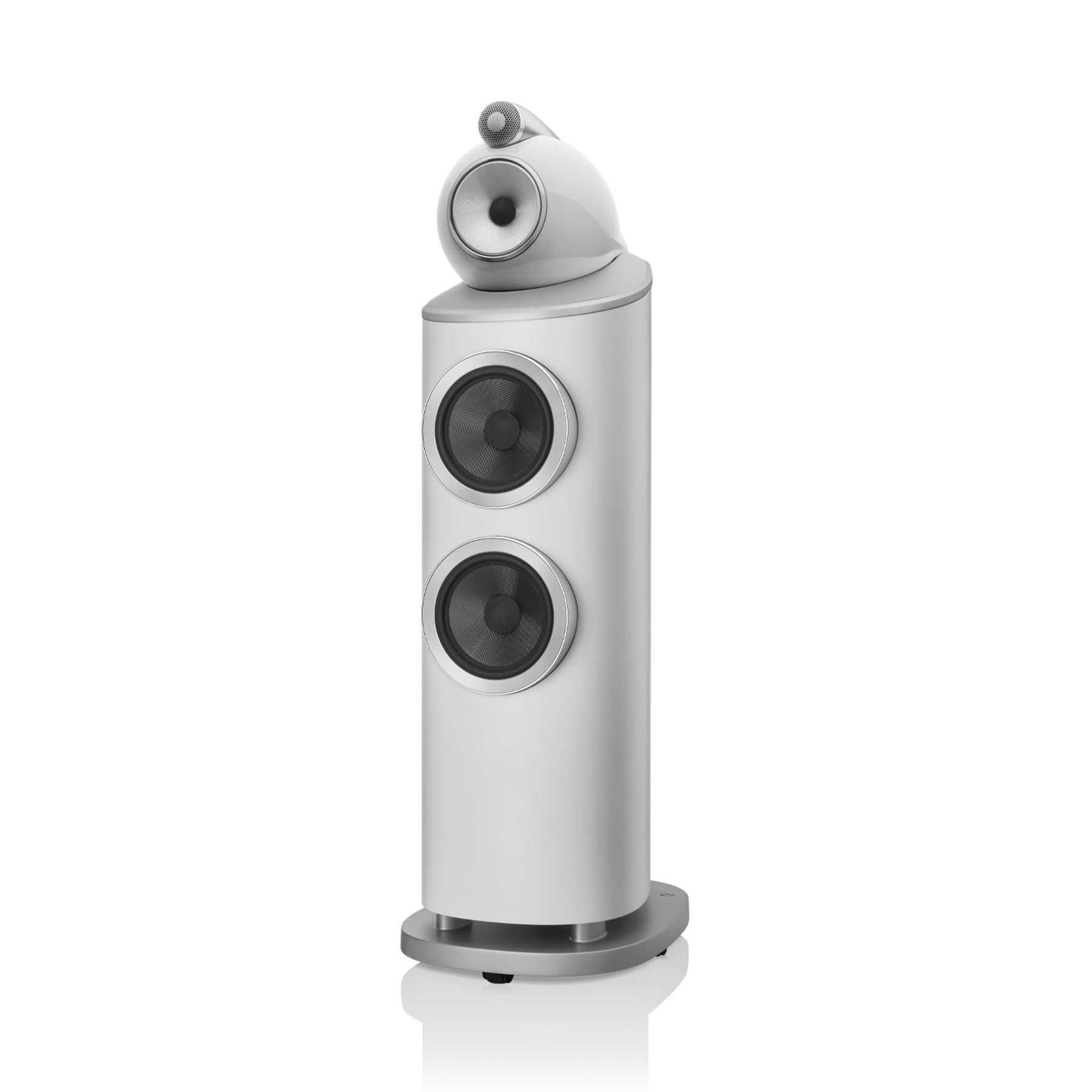

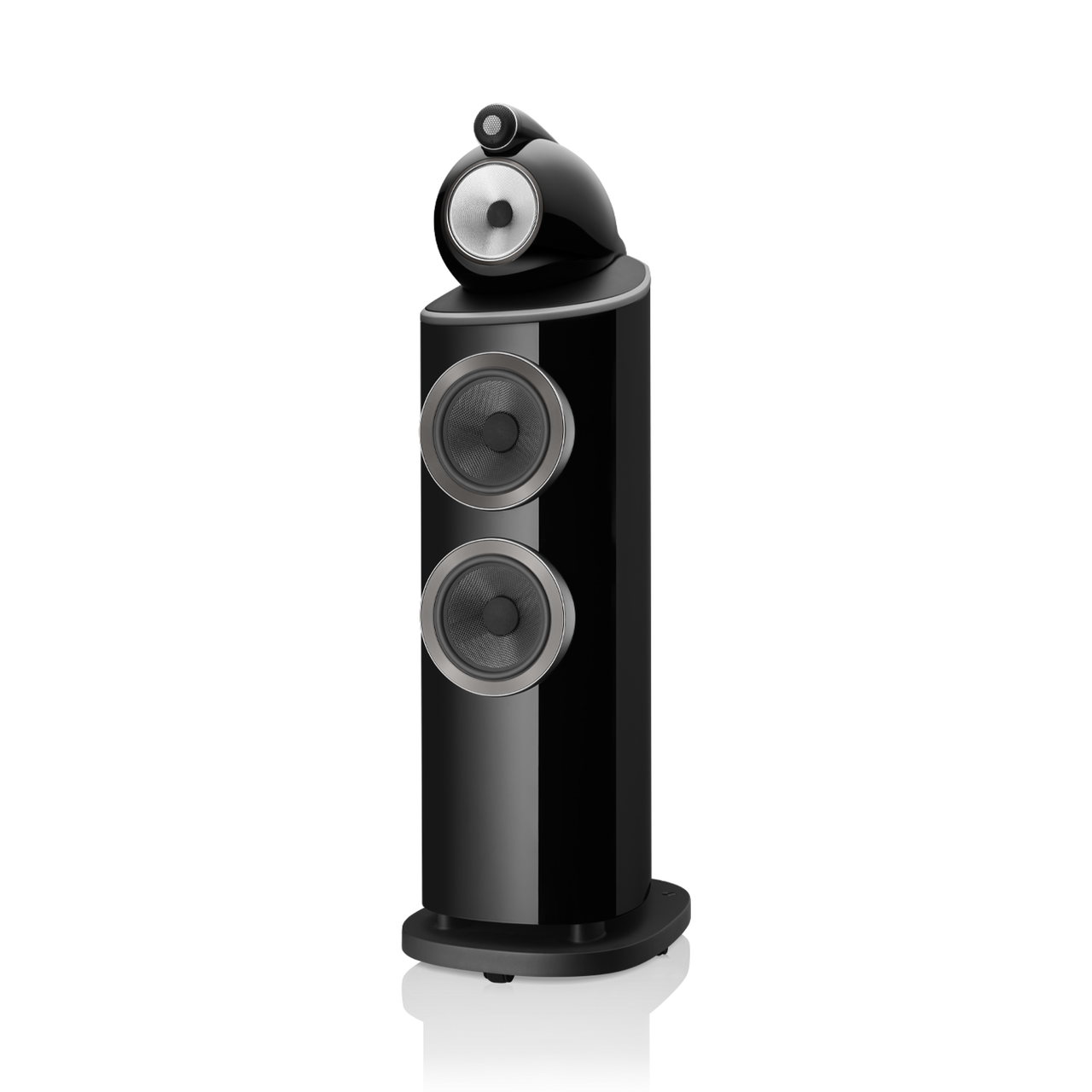

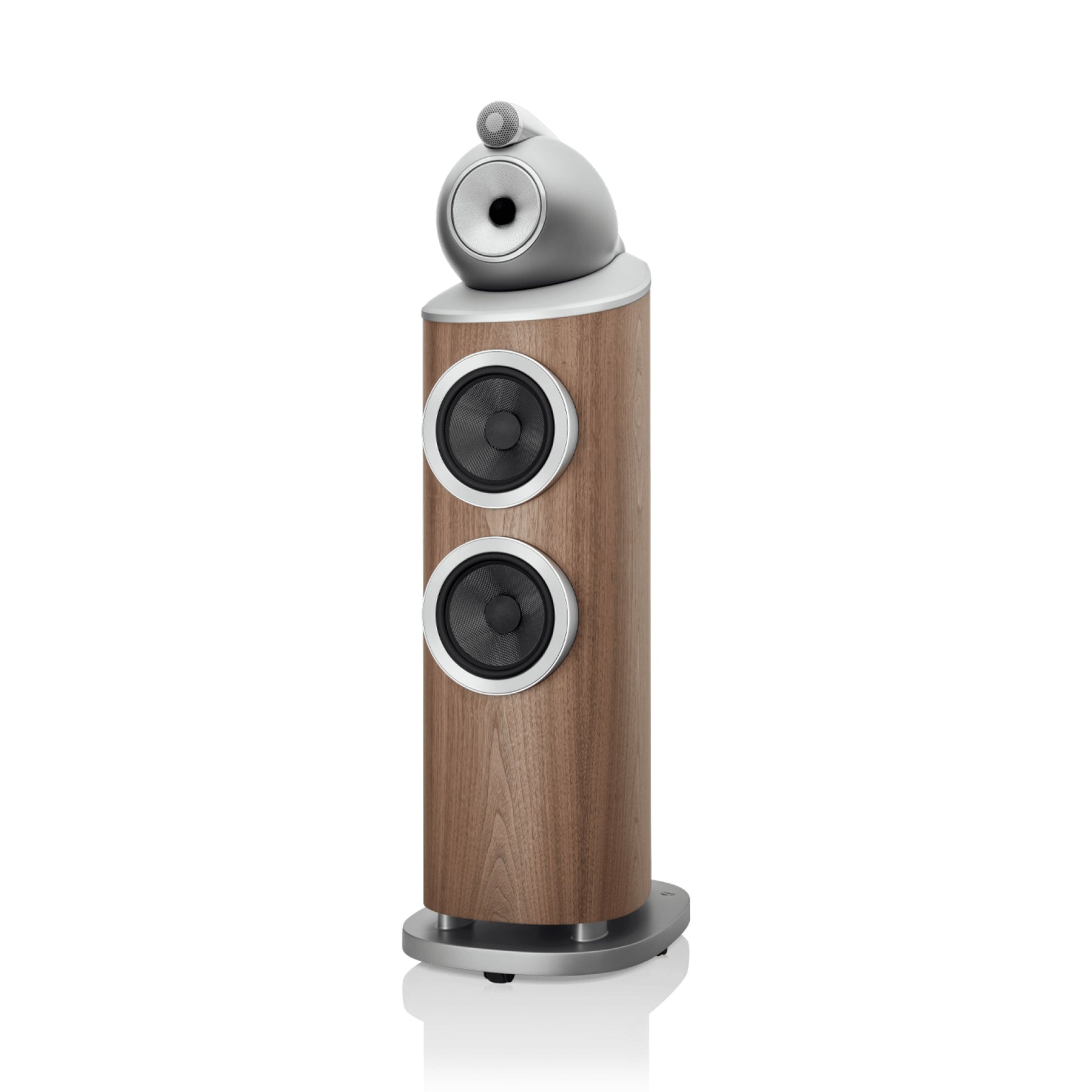

Bowers & Wilkins 803 D4 Floorstander (Pair)
803 D4 is the most compact of the headed 800 Series Diamond floorstanders. Its smaller footprint makes it easier to accommodate than the 801 D4 or 802 D4, but it still uses a dedicated midrange enclosure rather than placing every driver in one box.
The Turbine Head and decoupled midrange cone help keep voices and instruments focused, while the Diamond tweeter and Matrix cabinet provide the detail and control expected from the series.
It is a strong choice when the room can support a high-end tower but not the physical scale of the larger 800 Series models.
| ITEM | DESCRIPTION |
| Placement | Raises the compatible speaker into a more suitable listening position |
| System match | Designed around the named Bowers & Wilkins speaker family |
| Installation | Provides a stable, finished support for a permanent or living-room setup |
| DETAIL | VALUE |
| Drive units | 1x ø25mm (1in) Diamond dome high-frequency; 1x ø130mm (5in) Continuum cone FST midrange; 2x ø180mm (7in) Aerofoil cone bass units |
| Frequency range | 16Hz to 35kHz |
| Frequency response | 19Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity | 90dB (on axis at 2.83Vrms at 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis): <1% 80Hz – 20kHz, <0.3% 100Hz – 20kHz |
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Recommended amplifier power | 50W – 500W into 8Ω on unclipped programme |
| Max recommended cable impedance | 0.1Ω |
| Supported features | Diamond tweeter, Solid body Tweeter-on-Top, Continuum™ cone FST, Matrix™, Anti-Resonance plug, Biomimetic Suspension, Turbine™ Head, Aerofoil™ cone bass units, Flowport |
