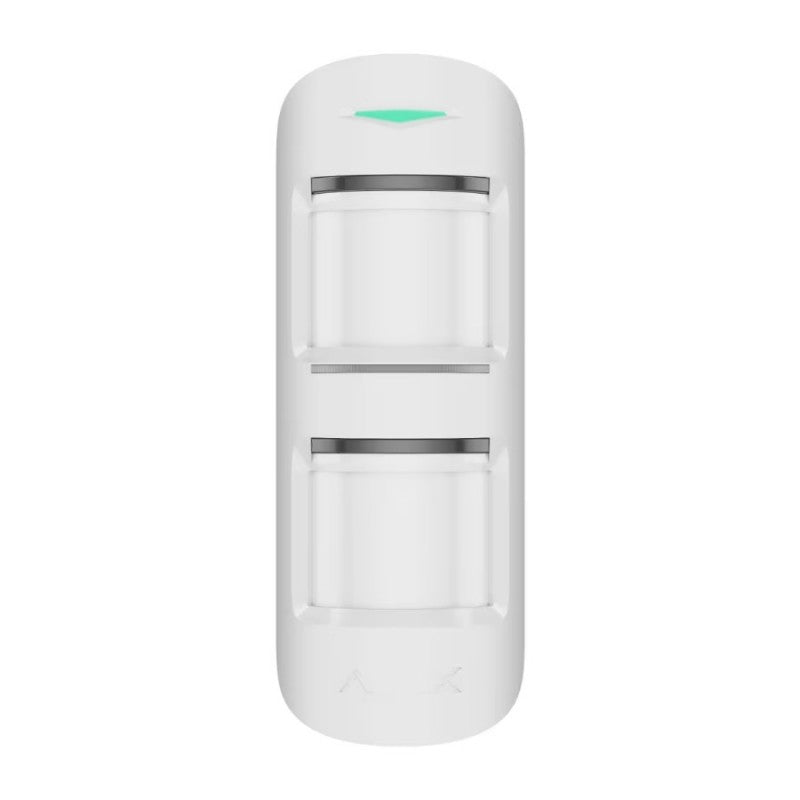

The Ajax MotionProtect Outdoor Jeweller is a wireless outdoor motion detector designed to protect exterior areas such as driveways, entrances, gardens, patios, courtyards, perimeter zones, and outdoor walkways. It provides reliable outdoor intrusion detection while connecting wirelessly to an Ajax hub through secure Jeweller radio technology.
Using two PIR sensors and intelligent signal analysis, MotionProtect Outdoor is designed to detect real human movement while reducing false alarms caused by animals, weather changes, or environmental movement. Its adjustable detection range of 3 to 15 metres allows the device to be tailored to the layout of the protected outdoor area.
The detector includes anti-masking protection, which helps identify attempts to block or cover the sensor area. This makes it suitable for outdoor security zones where tamper resistance and reliable detection are important.
With IP55 weather protection, battery operation, pet immunity up to 80 cm, and app-based configuration through Ajax, MotionProtect Outdoor is a practical solution for adding outdoor perimeter protection to residential and commercial Ajax alarm systems.
| ITEM | DESCRIPTION |
| Main Features | |
| Wireless outdoor motion detector | Detects movement in outdoor protected areas and sends alarm events to the Ajax hub wirelessly. |
| Dual PIR sensors | Uses two passive infrared sensors to improve outdoor motion detection accuracy and reduce false alarms. |
| Adjustable 3 to 15 m detection range | Detection distance can be adjusted to suit entrances, driveways, patios, courtyards, gardens, and perimeter zones. |
| 90° horizontal detection angle | Provides wide outdoor coverage for monitoring open areas and approach points. |
| Anti-masking protection | Detects attempts to block or cover the detector view, helping protect the device from tampering. |
| Pet immunity | Designed to ignore animals up to 80 cm tall when installed and configured correctly. |
| Temperature compensation | Helps maintain detection accuracy in changing outdoor temperatures. |
| Jeweller radio technology | Provides secure two-way wireless communication between the detector and the Ajax hub. |
| IP55 outdoor protection | Weather-resistant housing helps protect the detector against dust and water jets for outdoor installation. |
| Battery powered | Runs on pre-installed batteries for wireless installation without additional power cabling. |
| External power option | Can also support external power connection where required by the installation. |
| System Benefits | |
| Outdoor perimeter protection | Suitable for driveways, gates, gardens, entrances, patios, courtyards, and outdoor walkways. |
| Reduced false alarms | Dual PIR detection, pet immunity, temperature compensation, and Ajax algorithms help improve outdoor reliability. |
| Tamper-resistant monitoring | Anti-masking and tamper protection help alert the system if the detector is interfered with. |
| Wireless retrofit installation | Ideal for adding outdoor detection to existing premises without extensive alarm cabling. |
| DETAIL | VALUE |
| Product Specifications | |
| Brand | Ajax |
| Product name | MotionProtect Outdoor Jeweller |
| Product type | Wireless outdoor motion detector |
| Sensitive elements | 2 × PIR sensors |
| Motion detection distance | Adjustable from 3 to 15 m |
| Motion detection angle | 90° horizontal |
| Pet immunity | Up to 80 cm tall when installed and configured correctly |
| Anti-masking protection | Supported |
| False alarm prevention | Dual PIR detection, temperature compensation, and Ajax signal analysis |
| Communication technology | Jeweller two-way radio communication |
| Radio communication range | Up to 1,700 m in open space |
| Recommended installation height | 0.8 to 1.3 m |
| Installation location | Outdoor / indoor use depending on project requirements |
| Power supply | 2 × CR123A batteries |
| Battery life | Up to 5 years |
| External power support | 5 to 28 V DC |
| Tamper protection | Yes |
| Protection class | IP55 |
| Operating temperature | -25°C to +60°C |
| Operating humidity | Up to 95% |
| Dimensions | 183 × 70 × 65 mm |
| Weight | Approx. 322 g |
| Available colours | Black / White |
| Package Contents | |
| Included items | MotionProtect Outdoor Jeweller, SmartBracket mounting panel, 2 × CR123A batteries pre-installed, installation kit, and quick start guide |
| Best Suited For | |
| Driveways and entrances | ✓ |
| Gardens and patios | ✓ |
| Outdoor perimeter protection | ✓ |
| Ajax wireless alarm systems | ✓ |
